Tenda TEG1126P-24-41 24GE+2SFP Ethernet Switch With 24-Port PoE

Detail Tenda TEG1126P-24-41 24GE+2SFP Ethernet Switch With 24-Port PoE

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

TEG1126P-24-410W 24GE+2SFP Ethernet Switch With 24-Port PoE

TEG1126P-24-410W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 370W, and 30W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.

Hardware
Network standards
IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at
LED Indicator
24 * Link/Act LEDs
2 * SFP LED
1 * PoE-MAX LED
1 * Power LED
Interfaces
24*10/100/1000 Base-T ports(Data/Power)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
2
Dimension
440.0mmx284.0mmx44.0mm
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
48 Gbps
Packet forwarding rate
35.7Mpps
Buffer
2M
MAC address table
8K
Jombo frame
N/A
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 370W
Power consumption
/
Input voltage
100-240V AC 50/60Hz
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting : support
Environment
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC、CE、RoHS
Software
Funtions

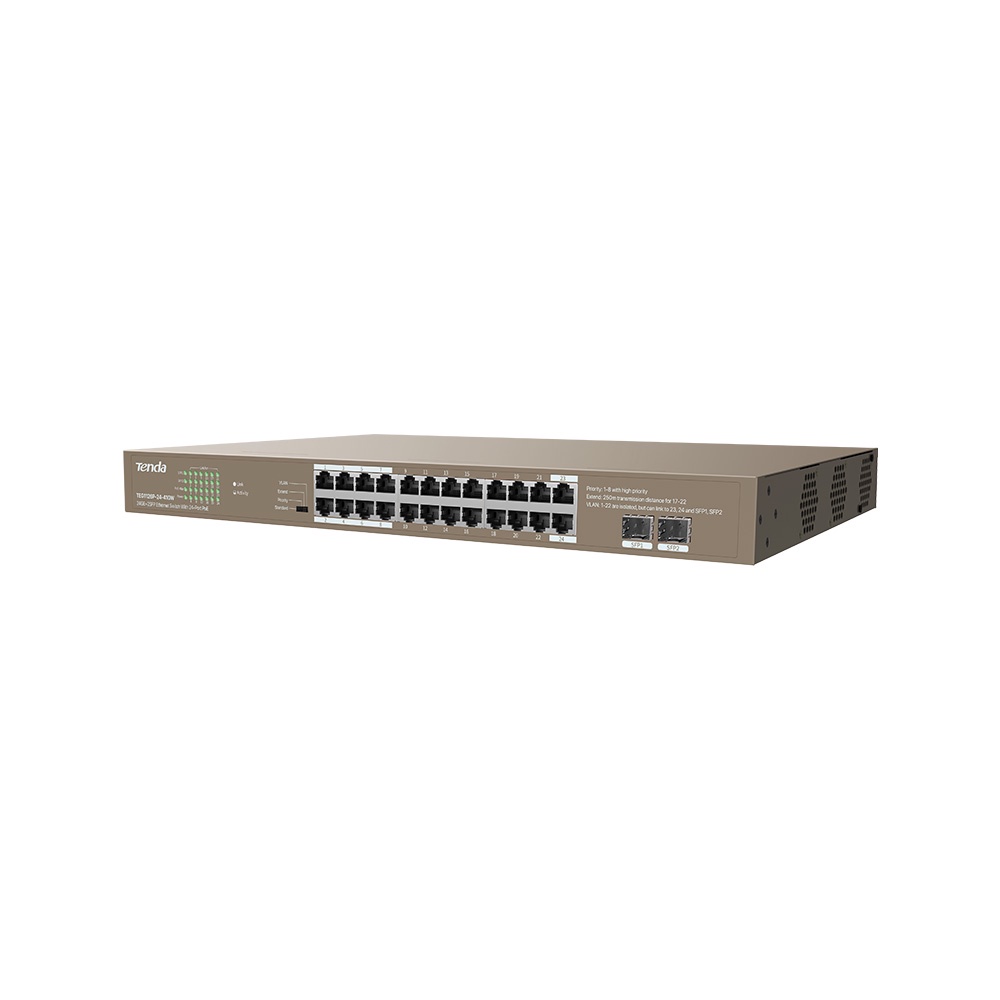

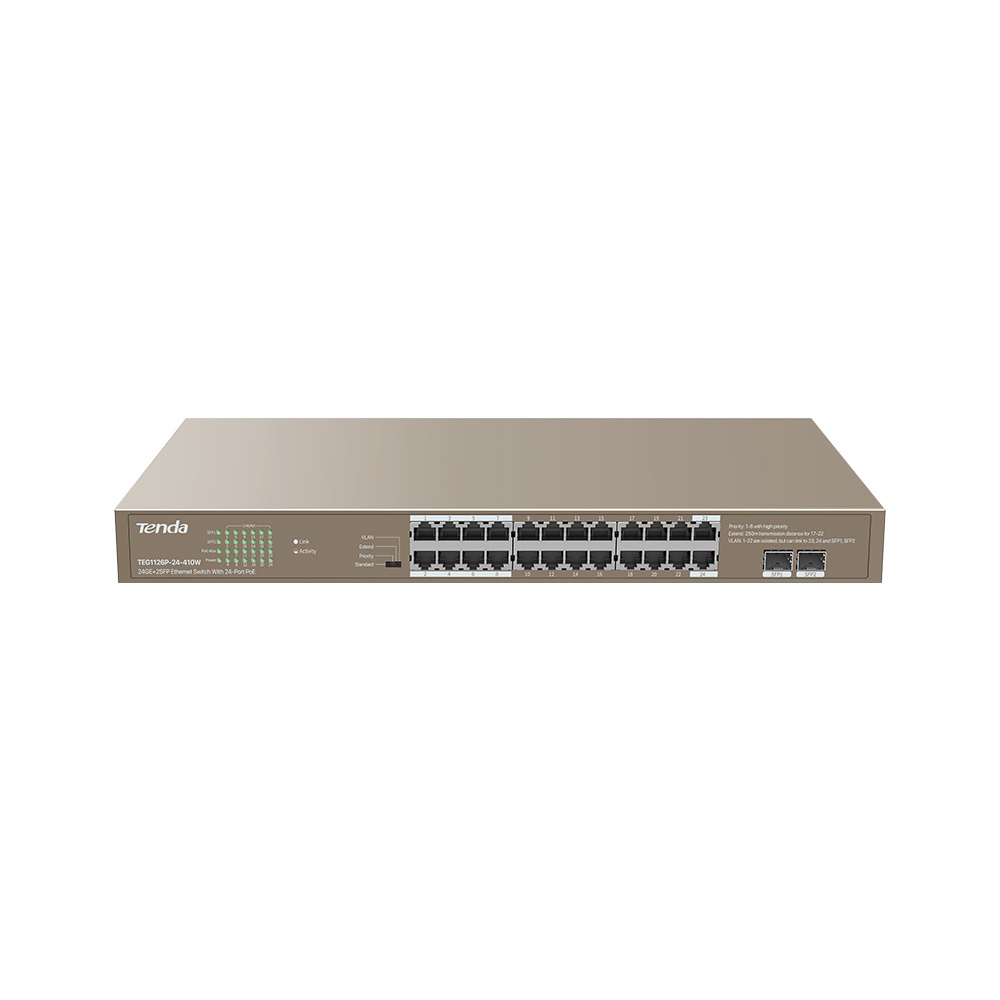

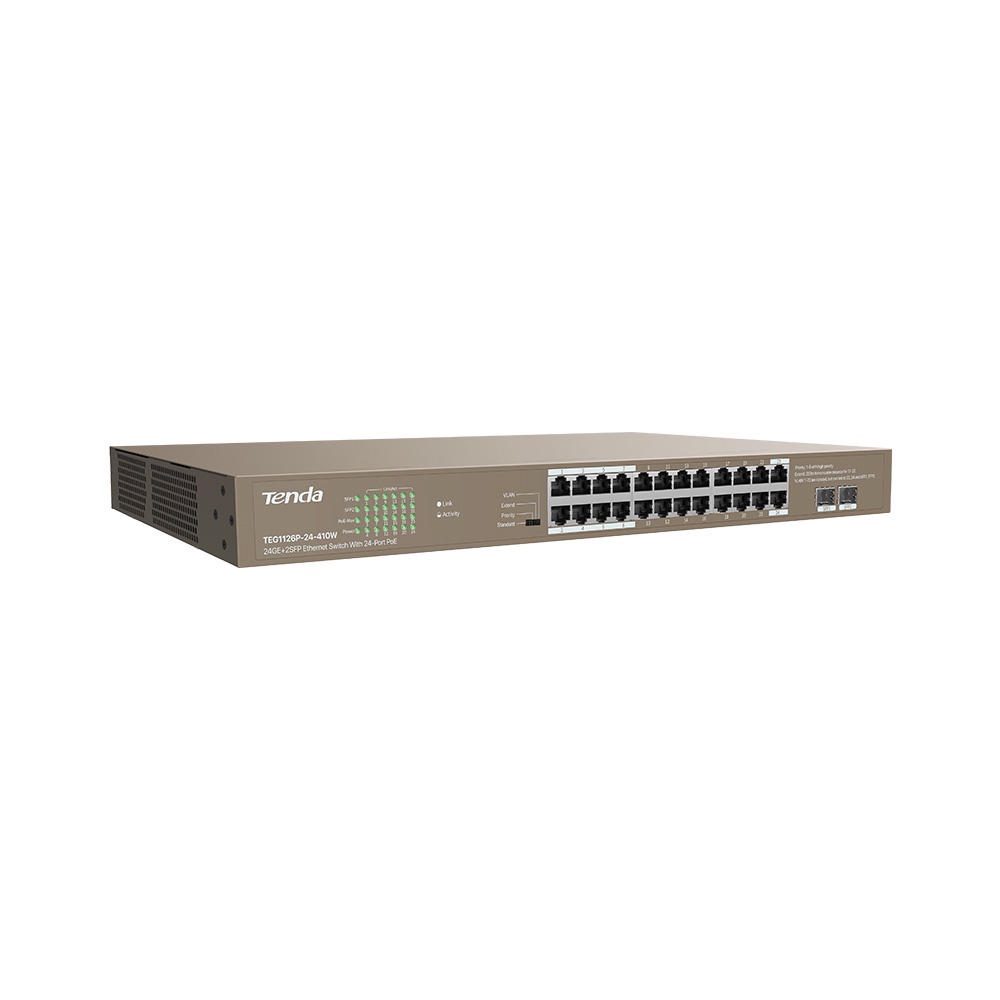

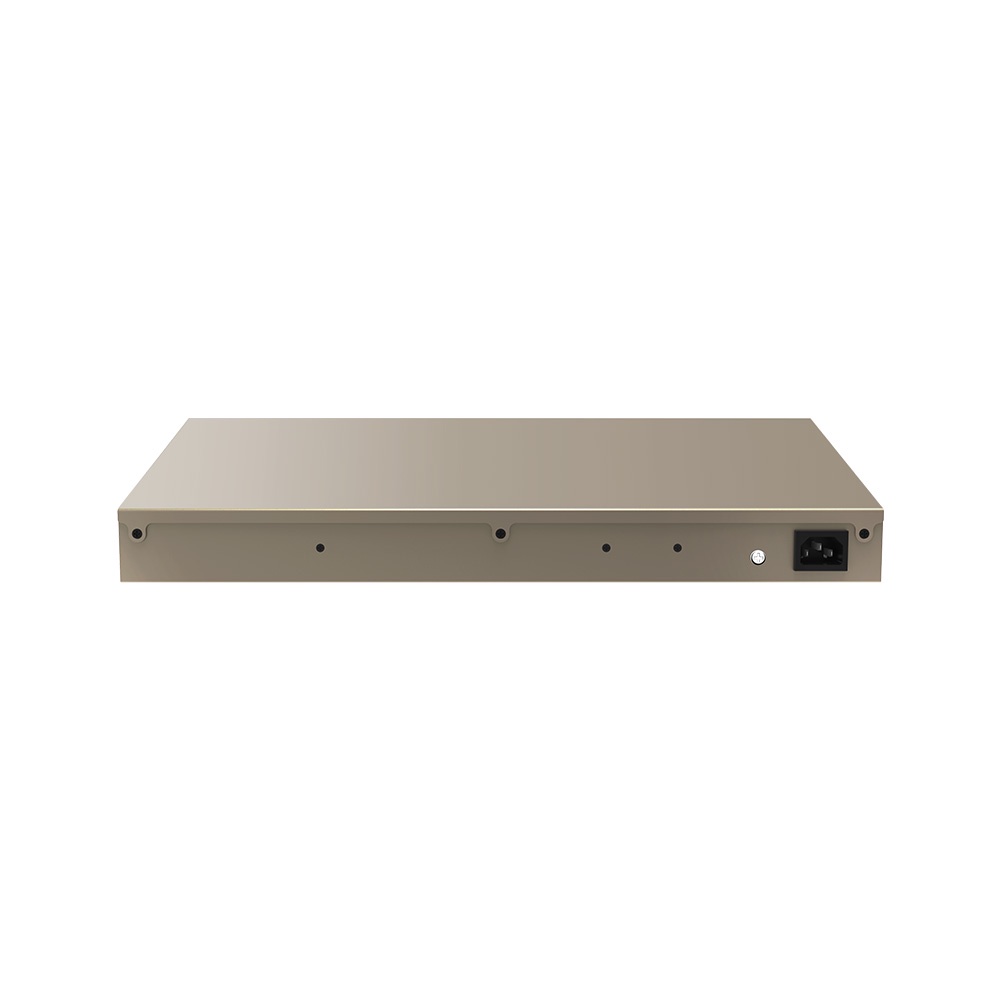

Gambar produk
