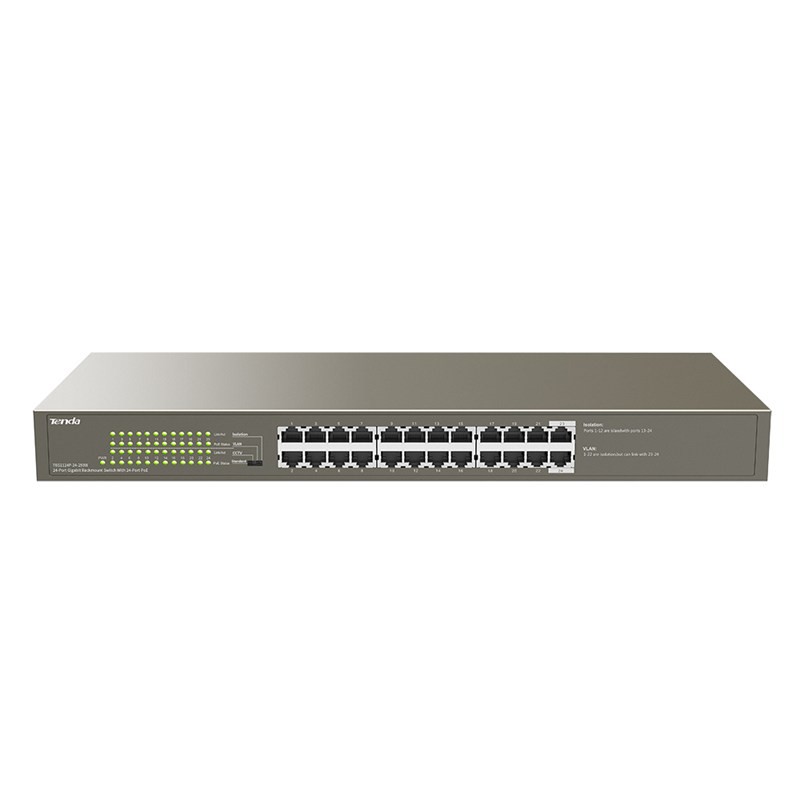

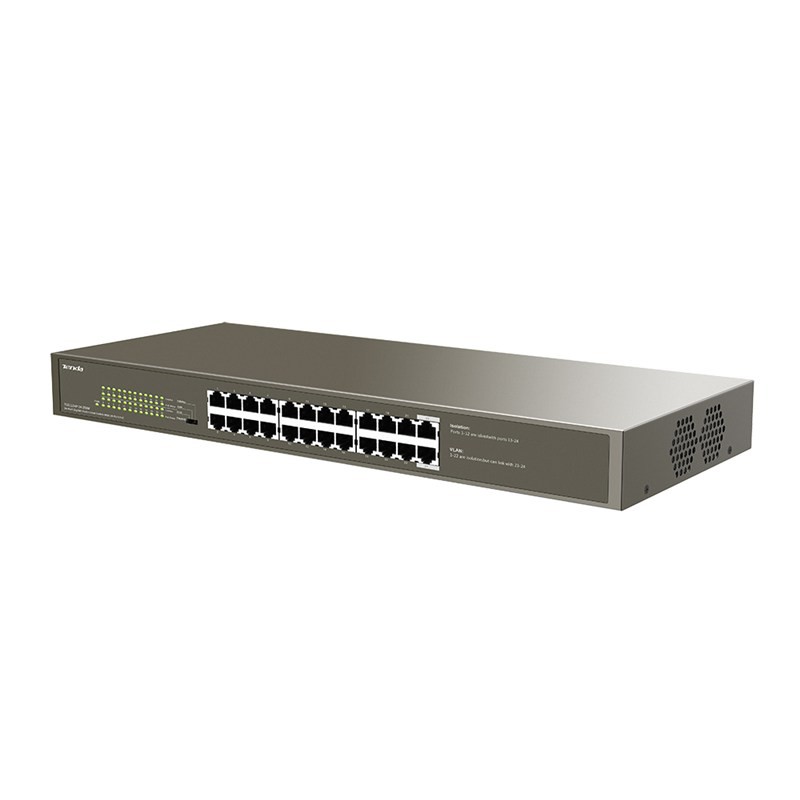

Tenda TEG1124P-24-250W 24-Port Gigabit Ethernet Switch with 24-Port PoE

Detail Tenda TEG1124P-24-250W 24-Port Gigabit Ethernet Switch with 24-Port PoE

TEG1124P-24-250W is a Tenda PoE switch that offers 24 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-24 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 225 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN and isolation to help reduce cabling costs of IP terminals like APs and IP cameras.

Standard&ProtocolIEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
Indicator24*Link/Act per device
24*PoE per device
1*Power per device
Interface24 10/100/1000Base-T ports(Data/Power)
Lightning Protection6KV
Store & ForwardYes
exchange capacity48 Gbp
Packet Forwarding Rate35.6Mpps
RAM Data Buffer4Mb
MAC Address Table4K
PoE supply managementPort 1-24 support IEEE802.3at/af PoE standard
PoE through pin1 2 4 5 +/3 6 7 8 -
Input PowerAC: 100-240V～50/60Hz
Dimension440*178*44mm( W x D x H )
Power Consumptionin full con guration: <250W
PoE Max Power Supply: 225W
Port FeaturesStandard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities
over the other ports. All the ports of the switch can communicate with each other.
VLAN: ports 1 to 22 are isolated from each other, but can communicate with ports 23 and 24(uplink ports) respectively.
Isolation: ports 1 to 12 and Ports 13 to 24 belong to two di erent VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
