Tenda TEG1110PF-8-102W Switch POE 8 Port 1 Port Uplink 1 Slot SFP N

Detail Tenda TEG1110PF-8-102W Switch POE 8 Port 1 Port Uplink 1 Slot SFP N

Hardware
Network standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
LED Indicator
10* Link/Ack LED indicators
1 * Power LED indicator
Interfaces
8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power)
1 * 10/100/1000 Mbps Base-T Ethernet port (Data)
1 * 100/1000 Mbps Base-X SFP port
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
-
Dimension
177.5mmx104.0mmx26.0mm(L*W*H)
Level of protection
Lightning protection for ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
20 Gbps
Packet forwarding rate
14.9Mpps
Buffer
2M
MAC address table
16K
Jombo frame
-
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 92W
Power consumption
-
Input voltage
100-240V AC 50/60Hz
51V /2.0A DC（Power Adapter Output ）
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting : non-support
Environment
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certification
FCC
CE
RoHS
Software
Funtions

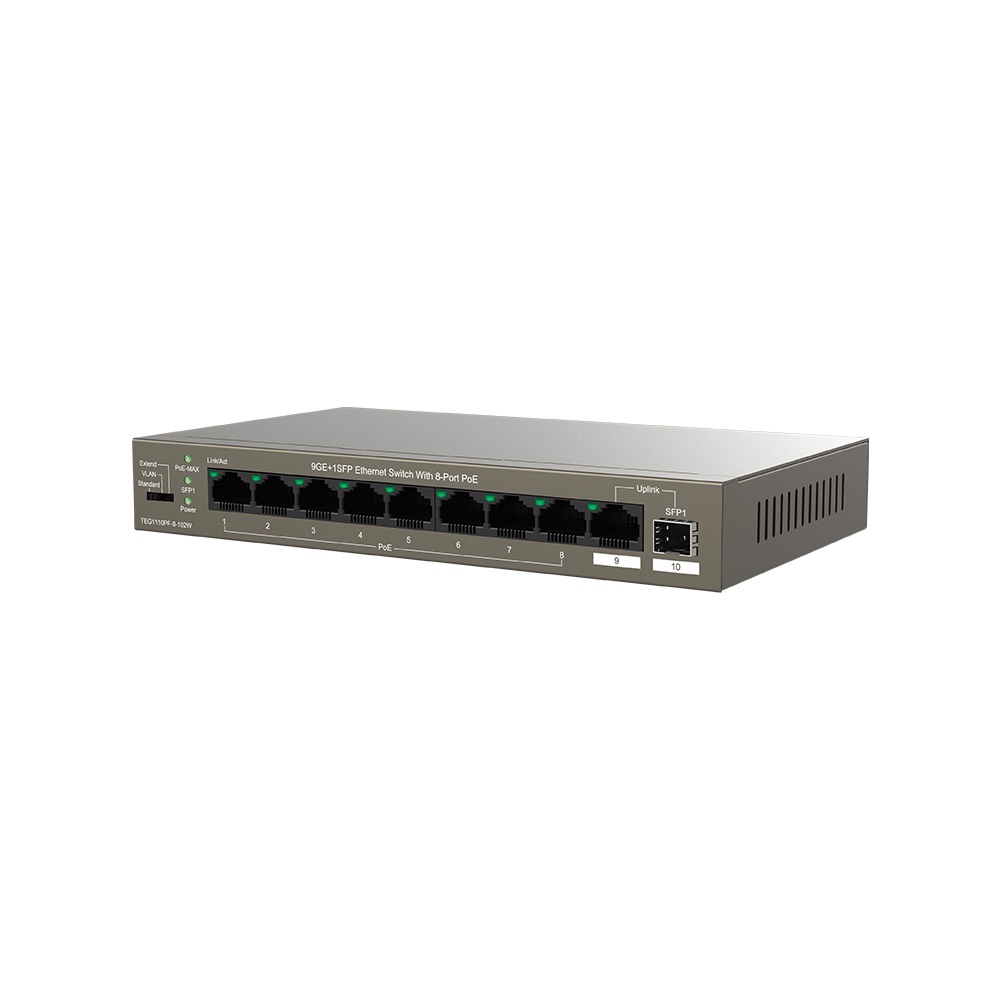

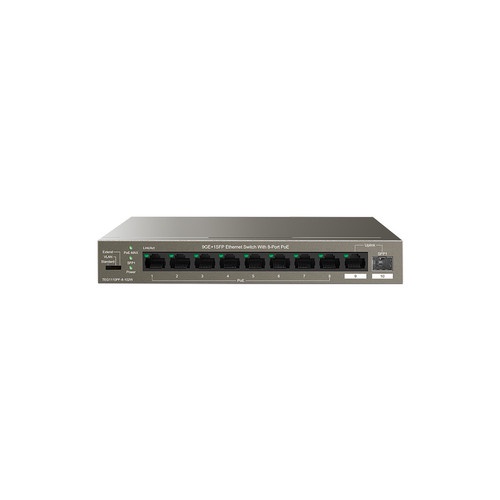

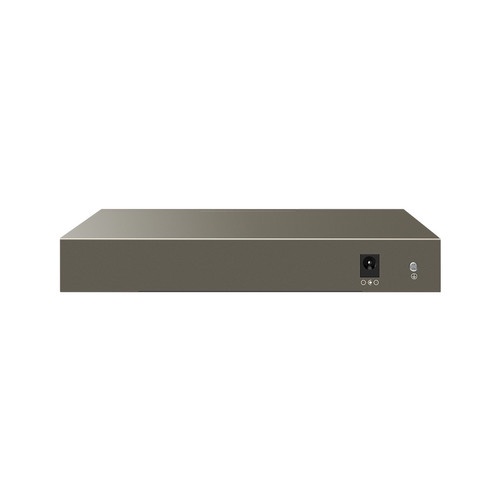

Gambar produk
