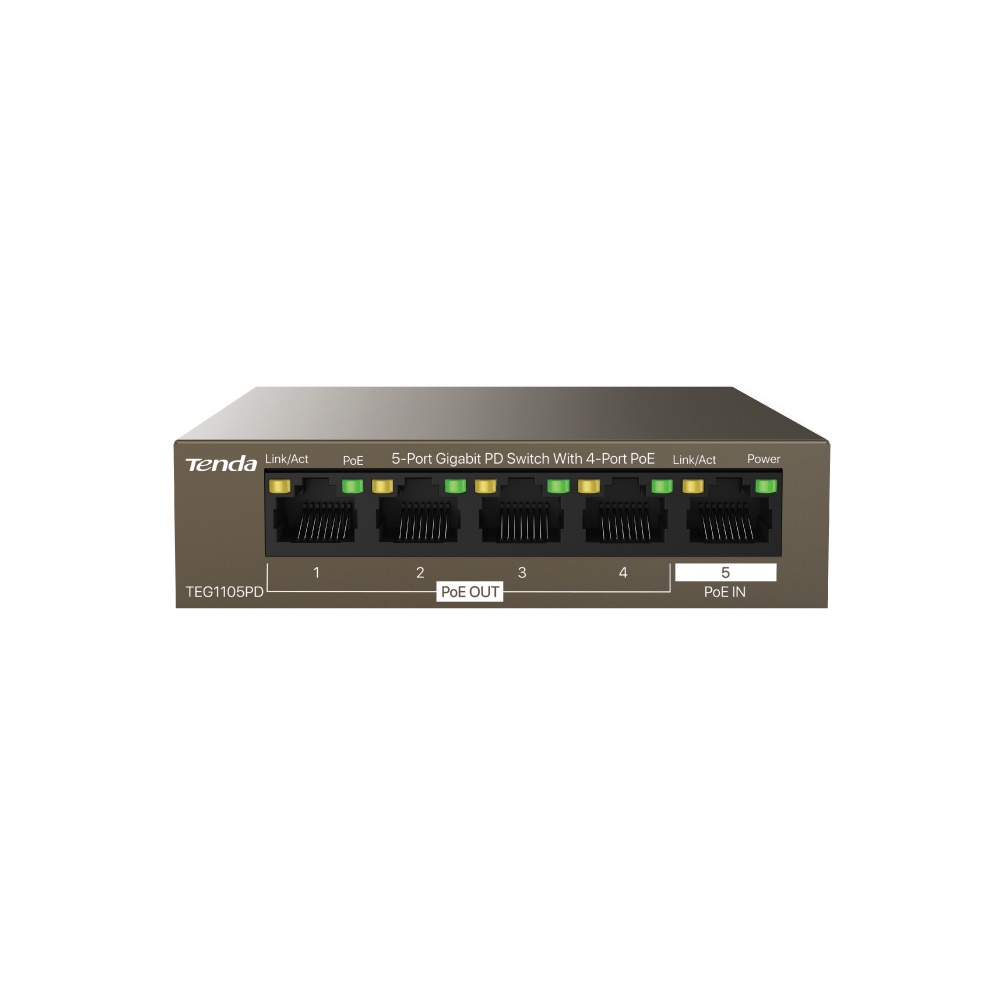

TEG1105PD 5-Port Gigabit PD Switch With 4-Port PoE
Featuring low cost, high performance and plug & play, the PoE switch TEG1105PD is both a PSE and a PD, designed for such surveillance networking scenarios as roads in parks/communities, medium to large factories, and colleges. Small and delicate, it can be installed in an outdoor waterproof box easily. The switch provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at.

Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
LED Indicator
1* Power LED indicator
4* PoE LED
indicators
5* Link/Act LED indicators
Interfaces
4*10/100/1000 Base-T Ethernet Ports(Data/PoE
UT)
1*10/100/1000 Base-T Ethernet Port(Data/PoE IN)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
100.0 mm x 100.0 mm x 26.0 mm
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
10 Gbps
Packet forwarding rate
7.44Mpps
Buffer
1 Mb
MAC address table
2K
Jombo frame
9K
PoE budget
Single port: AF: 15.4W
Power consumption
/
Input voltage
50-57V DC, 0.6A
Mounting
Desktop mounting: support
Wall mounting: non-support
Rack mounting : non-support
Environment
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC、CE、RoHS
