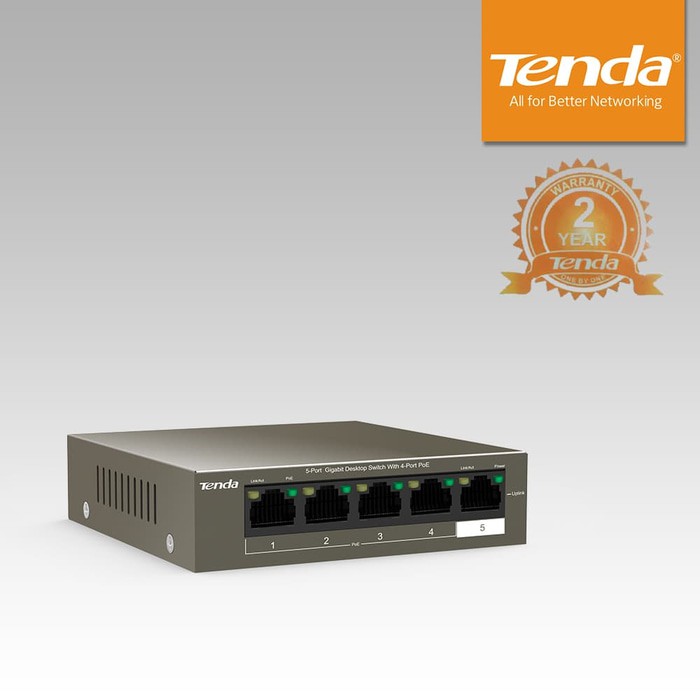

Tenda TEG1105P - 5-Port Gigabit Desktop Switch with 4-Port PoE

Detail Tenda TEG1105P - 5-Port Gigabit Desktop Switch with 4-Port PoE

TEG1105P-4-63W is a Tenda PoE switch that offers 5 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as VLAN, to help reduce cabling costs of IP terminals like APs and IP cameras.

Standar & Protokol
IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
MTBF
≥100,000hours

Indikator
5*Link/Act per device
4*PoE per device
1*Power per device

Antarmuka
4 10/100/1000Base-T ports(Data/Power)
1 10/100/1000Base-T port(Data)

Proteksi petir
6KV

Penyimpanan & Pengalihan
Yes

Kapasitas pertukaran
10 Gbps

Tingkat Pengalihan Paket
7.44Mpps

RAM Data Buffer
1Mb

Tabel Alamat MAC
2K

Manajemen persediaan PoE
Port 1 to Port 4 support IEEE802.3at/af PoE standard

PoE through pin
1 2 4 5 +，3 6 7 8 -

Tegangan masuk
AC：100-240V～ 50/60Hz

Ukuran
100*100*26mm ( W x D x H )

Konsumsi Daya Listrik
in full configuration：<63W
PoE Max Power Supply：58W

Fitur Port
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。

Lingkungan
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
