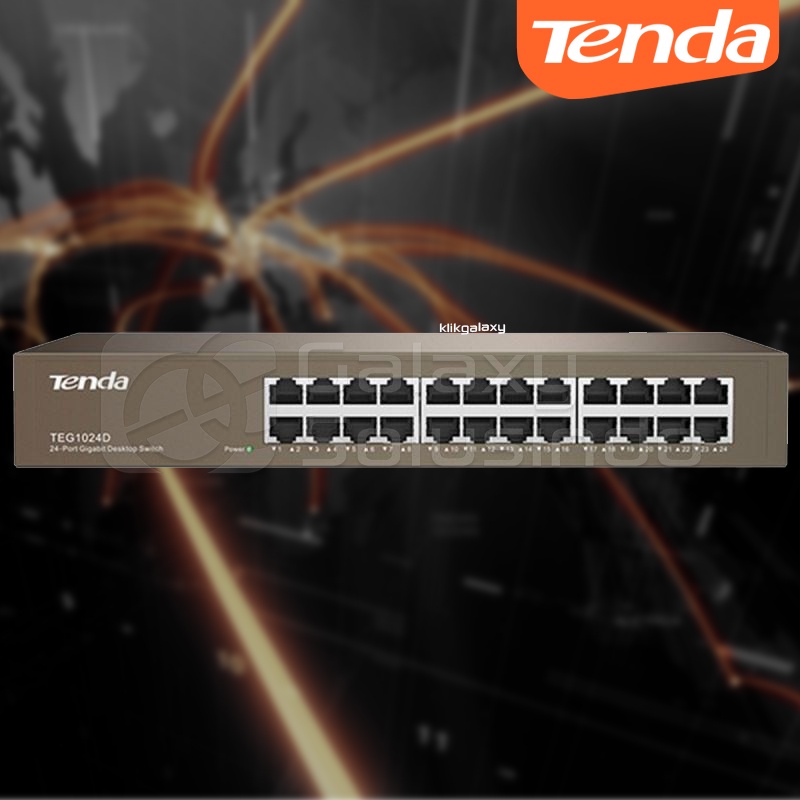

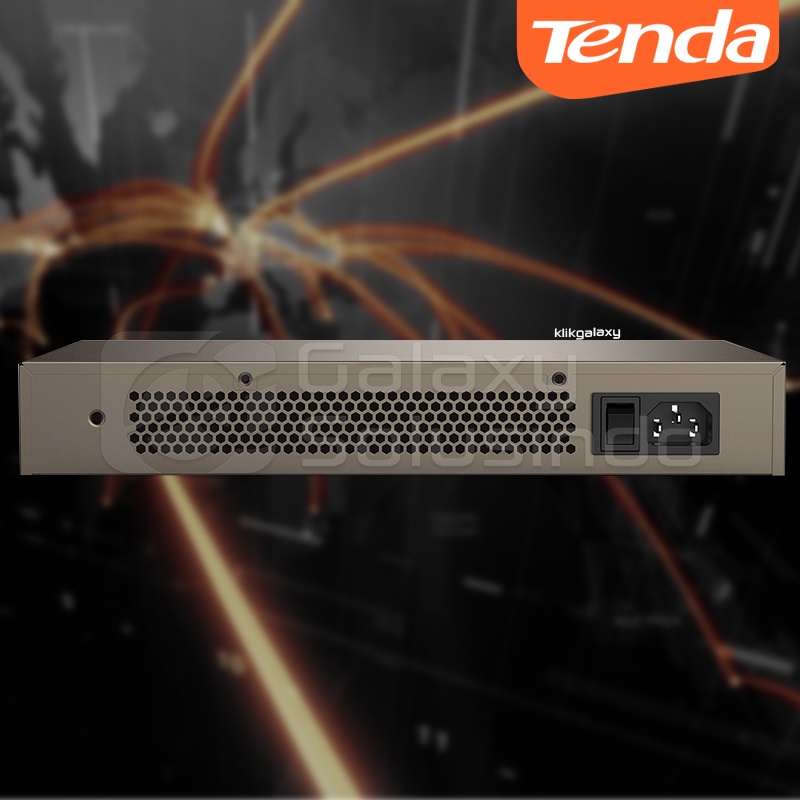

TENDA TEG1024D 24 Port Gigabit Ethernet Switch

Detail TENDA TEG1024D 24 Port Gigabit Ethernet Switch

SPECIFICATION :
Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED Indicator
1* Power,24* Link/Act
Interfaces
24*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
294.0mmx178.0mmx44.0mm
Material
Metal
Level of protection
Lightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
48Gbps
Packet forwarding rate
35.60Mpps
Buffer
2Mb
MAC address table
8K
Jombo frame
N/A
Power
Input: 100-240V AC 50/60Hz
Power consumption
Max:<12W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting : support
Environment
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
Software
Protocols
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Funtions
plug-and-play
