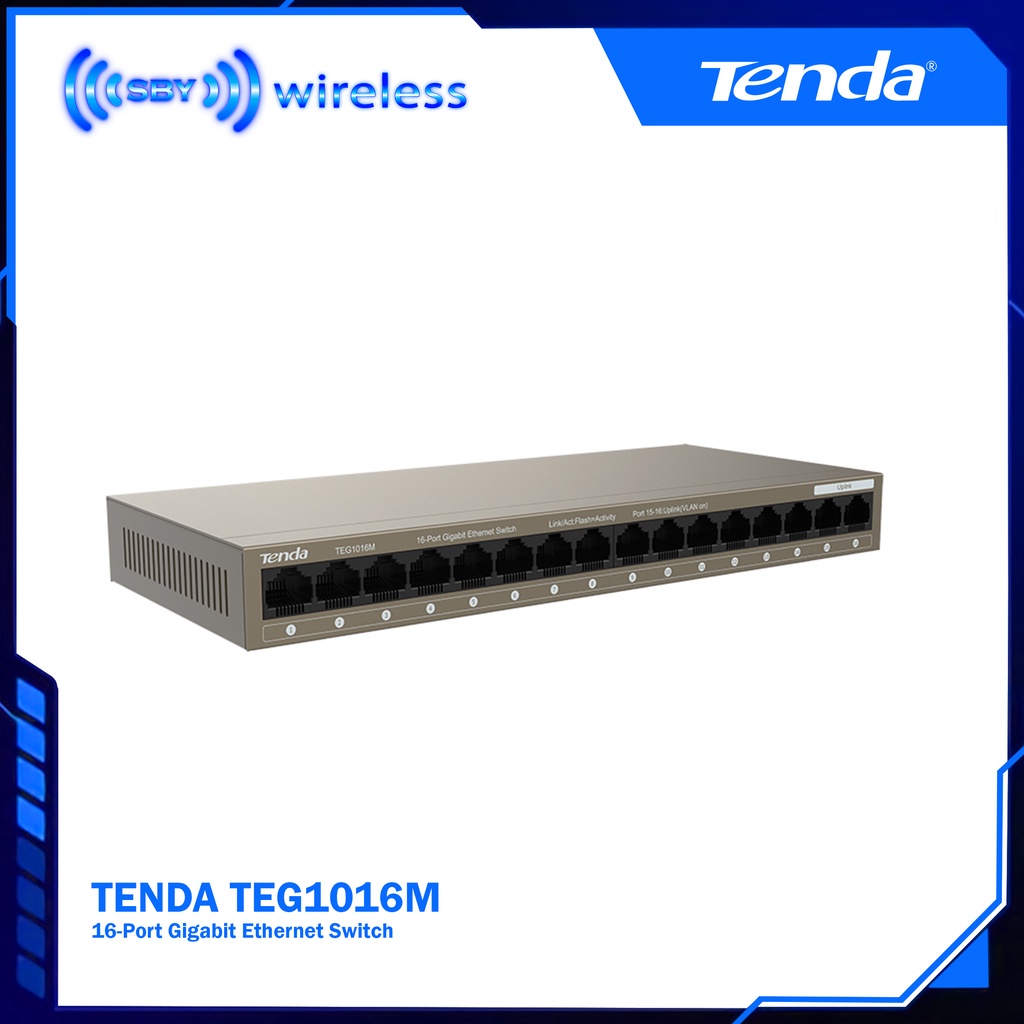

TENDA TEG1016M, 16-Port Gigabit Ethernet Switch TEG-1016M Metal Case

Detail TENDA TEG1016M, 16-Port Gigabit Ethernet Switch TEG-1016M Metal Case

TENDA TEG1016M, 16-Port Gigabit Ethernet Switch TEG-1016M Metal Case

Establish A Gigabit High-Speed Network,
Home/Business Preferred
16-Port Gigabit Ethernet Switch

TEG1016M is a Gigabit unmanaged Ethernet switch developed by Tenda. Its full-duplex transmission rate can reach 2000 Mbps, ensuring timely transmission of large files and smoothness of videos. The switch features a mini steel shell, a fanless design, and wire-speed forwarding of all ports. It comes with a power adapter for power supply, and can connect to such network devices as computers and IP cameras. The switch also supports one-key isolation mode switching. With the advantages of plug and play functionality, easy installation and high performance, it offers a cost-effective solution for video surveillance and wired networking in such small and medium-sized scenarios as small and micro businesses, villas, and stores.

Specification :

Hardware
Network standards
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
LED Indicator
One Link/Act LED indicator for each Gigabit port
One Power LED indicator for each device
Interfaces
16*10/100/1000Base-T Ethernet ports
Transmission media
Ethernet: CAT3 UTP or better
Fast Ethernet: CAT5 UTP or better
Gigabit Ethernet: CAT5e UTP or better
Fan quantity
-
Dimension
235mmx103mmx27mm
Material
Metal
Level of protection
Lightning protection for port: 6 kV
Lightning protection for power: N/A
Electrostatic protection:
-Air discharge: ±8 kV
-Contact discharge: ±6 kV
Forwarding mode
Store-and-forward
Switch capacity
32Gbps
Packet forwarding rate
23.8Mpps
Buffer
2Mb
MAC address table
8K
Jombo frame
10K
Power
Input: 100 - 240V AC 50/60Hz, 0.4A
Output: 12V 1A
Power consumption
Max: <12 W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
