TENDA TEF1126P – 24 10/100MBPS +1 GE/SFP SLOTS SWITCH WITH 24-PORT POE


Standard & Protocol : IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
MTBF : ≥100,000hours
Indicator :
+ 24*Link/Act per device
+ 1*G1 Link/Act per device
+ 1*SFP Link/Act per device
+ 1*PoE-MAX per device
+ 1*Power per device
Interface :
+ 24 10/100Base-TX ports(Data/Power)
+ 1 10/100/1000Base-T port(Data)
+ 1 1000Base-X SFP port
Lightning Protection : 6KV
Store & Forward : Yes
Exchange capacity : 8.8 Gbit/s
Packet Forwarding Rate : 6.55Mpps
MAC Address Table : 4K
PoE supply management : Port 1 to Port 16 support IEEE802.3at/af POE standard
PN pass-through : 1 2 4 5 +，3 6 7 8 -
Input Power :AC：100-240V～ 50/60Hz
Dimension : 294*215*44mm( W x D x H )
Power Consumption :
+ In full configuration：+ PoE Max Power Supply：225W
Port Features :
+ CCTV： 1-8 ports support QoS，If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device，like the monitoring computer. This ensures smoother monitoring video playback.
Standard： The switch’s functions are similar with a common unmanaged switch’s and all the ports of the switch can communicate with each other.
+ VLAN： In this mode, 1-16 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports. It can be used to isolate broadcast storms and DHCP broadcasts.
Extend： In this mode, the data rate of 1-8 port is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other.
Environment :
+ Operating Temperature: 0℃~40℃ (32℉~104℉)
+ Storage Temperature: -40℃~70℃ (-40℉~158℉)
+ Operating Humidity: 10%~90% non-condensing
+ Storage H

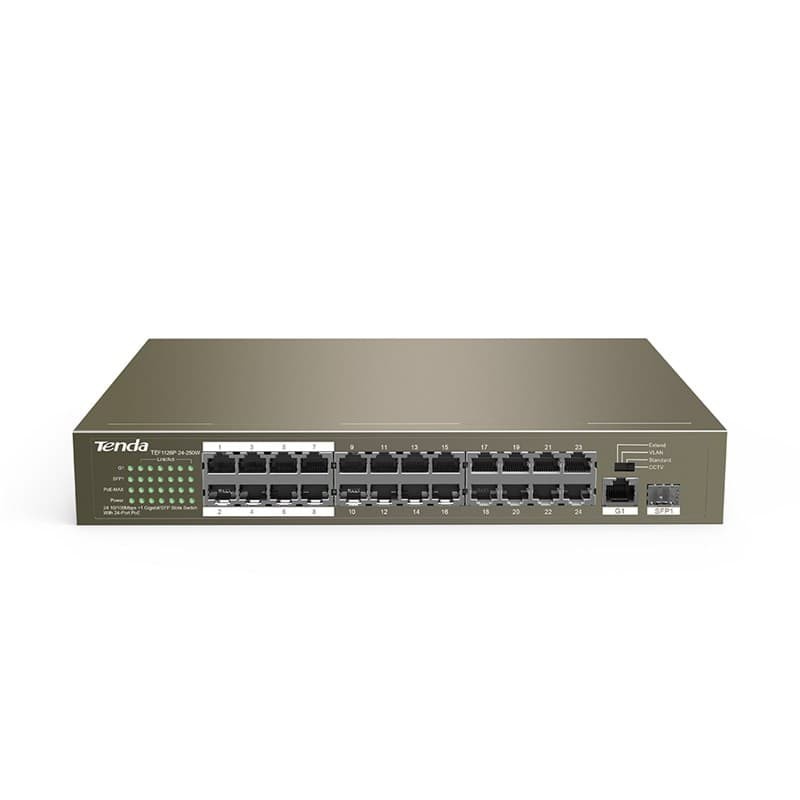

Gambar produk
