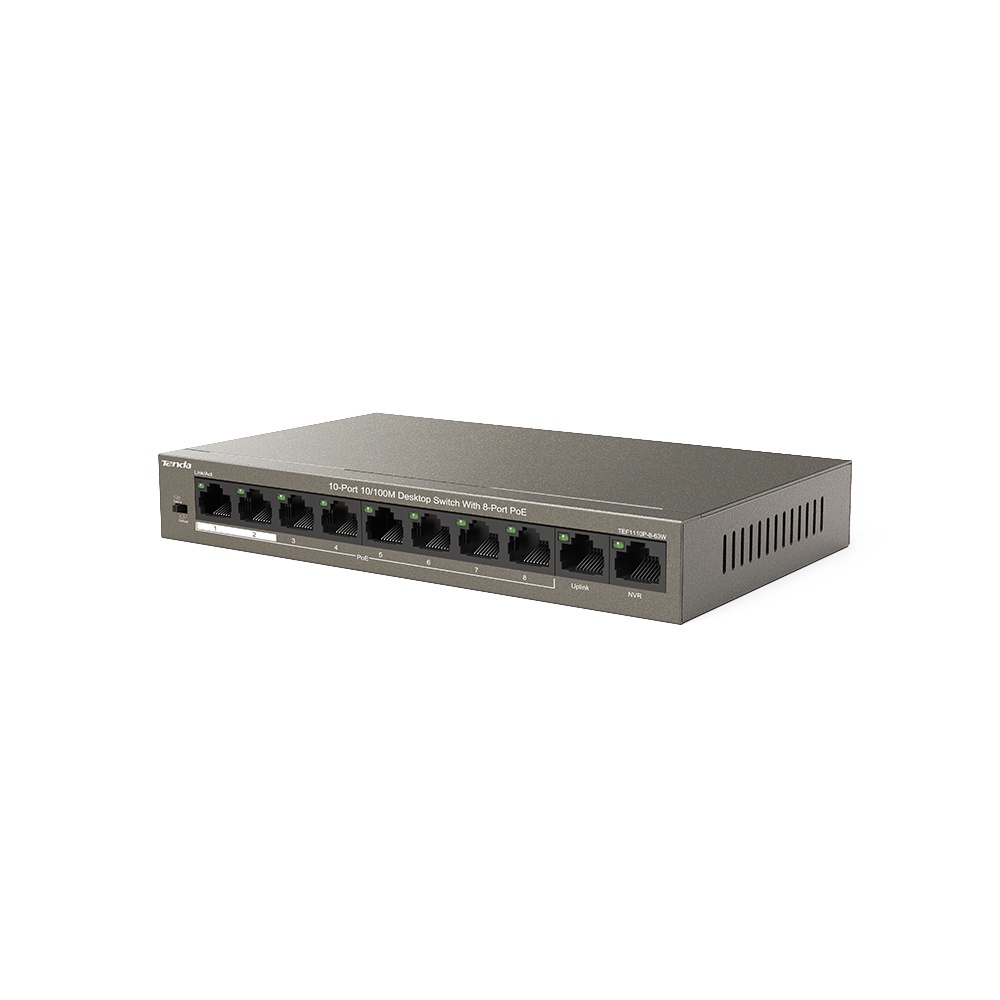

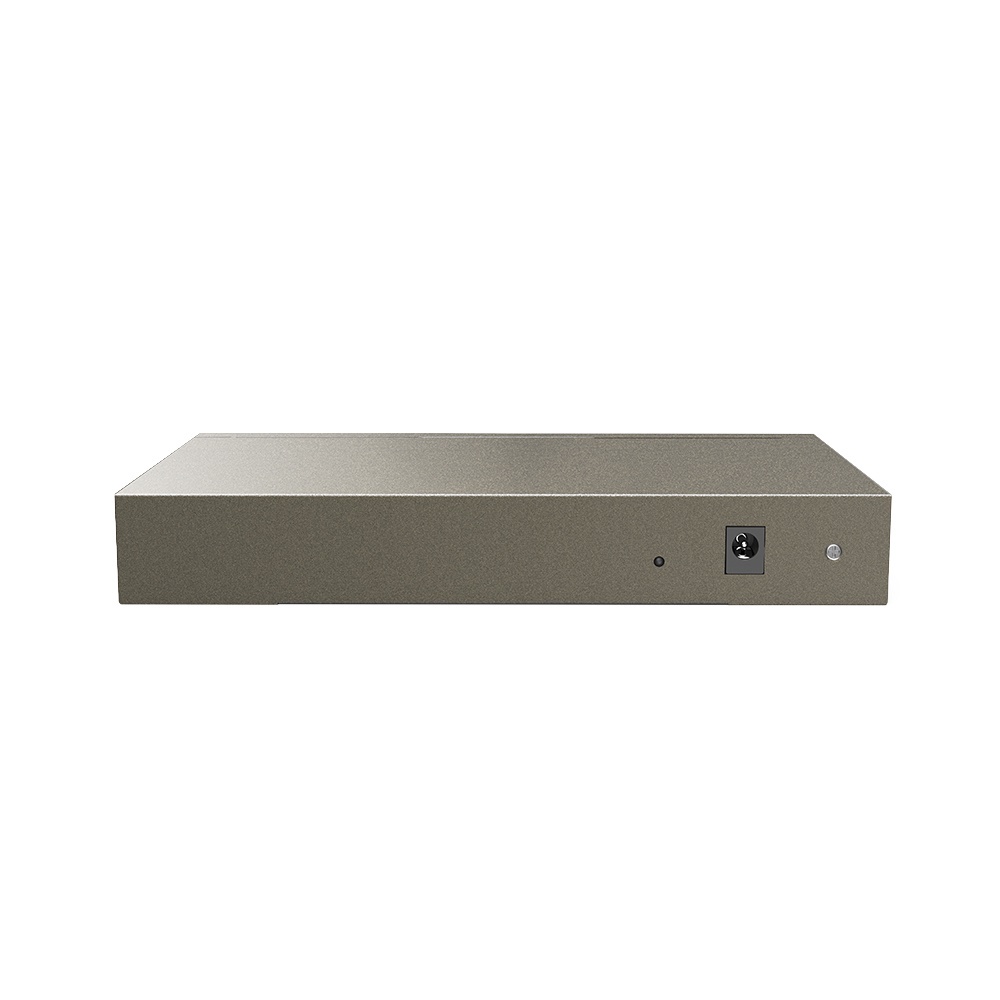

TEnda TEF1110P-8-63W 10-Port 10/100M Desktop Switch with 8 Port PoE

Komputer & Aksesoris > Desktop > PC Desktop > TEnda TEF1110P-8-63W 10-Port 10/100M Desktop Switch with 8 Port PoE

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:Network Online Official ShopLihat semua produk Komputer & Aksesoris oleh Network Online Official Shop

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

Detail TEnda TEF1110P-8-63W 10-Port 10/100M Desktop Switch with 8 Port PoE

Hardware
Network standards
IEEE 802.3/3u/3x, IEEE 802.3af/at
LED Indicator
10* Link/Ack LED indicators
1 * Power LED indicator
Interfaces
8 * 10/100 Base-TX Ethernet ports (Data/Power)
2 * 10/100 Base-TX Ethernet ports (Data)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
177.5mmx104.0mmx26.0mm
Level of protection
Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
1.6 Gbps
Packet forwarding rate
1.48Mpps
Buffer
448K
MAC address table
1K
Jombo frame
N/A
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 58W
Power consumption
/
Input voltage
100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC、CE、RoHS
Software
Funtions
Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
Extend Mode:VLAN isolation is enabled. Port 1-8 will be isolated respectively (10/100Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).
