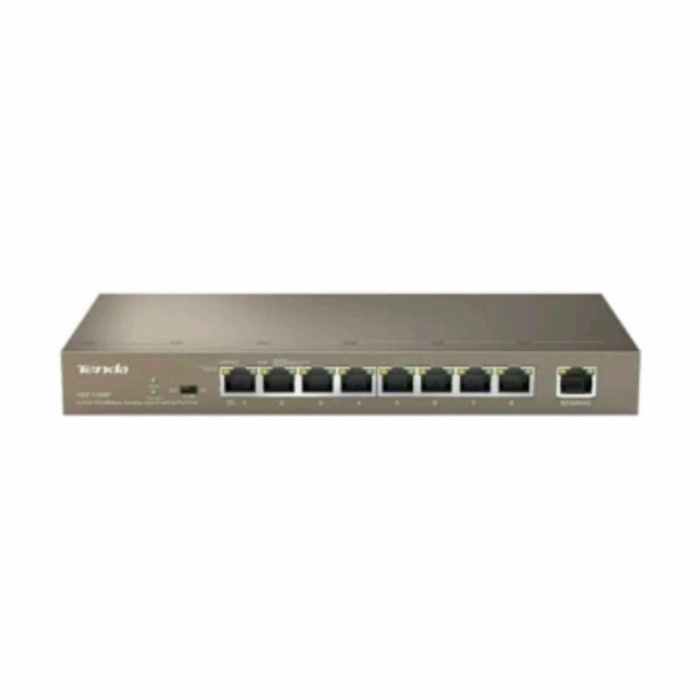

TENDA TEF1109P 8-63W 9-Port 10/100Mbps Desktop Switch Internet

Detail TENDA TEF1109P 8-63W 9-Port 10/100Mbps Desktop Switch Internet

TEF1109P-8-63W has the network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit. With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum PoE output power of 30W to each port and 58W to the whole device.

Standard & Protocol:
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE802.3ab、IEEE 802.3af、IEEE 802.3at

MTBF ≥50,000 hours(about 5 years)

Indicator Link/Act, PoE Status, Power, 100M

Fixed Port:
8 10/100Base-TX RJ45 Ports(Data/Power)
1 10/100Base-TX RJ45 Port(Data)

Lightning Protection: 6KV
Wire-speed forwarding: Support
Switching Capacity: 1.8 Gbit/s
MAC Address Table?: 4K MAC

PoE supply management:
Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W)，PoE power type is end-span(1245+, 3678- line pair)
in full configuration：<63W
PoE Max Power Supply：58W

Input Voltage:
AC：100－240V～ 50/60Hz
DC：51V /1.25A Power Adapter

Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

One-button-start Mode
Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
Extend Mode: If Extend mode is enabled, the delivery distance of powering and network data is up to 250m (10Mbps).
