TENDA SG108 : Desktop Switch Hub Gigabit Tenda SG108 SG-108 8 Port Gigabit 10/100/1000 Mbps

Detail TENDA SG108 : Desktop Switch Hub Gigabit Tenda SG108 SG-108 8 Port Gigabit 10/100/1000 Mbps

8* 10/100/1000Mbps auto-negotiation ports
Auto MDI/MDIX simplifies networking and maintenance
Full wire speed forwarding ensures a smooth network experience
Flow control for full duplex and backpressure for half duplex avoids frame dropping as port blocked
Adopts store-and-forward mechanism and provides 4K MAC address table
9K Jumbo frame improves the forwarding speed of large data
Adopts green and environmental ABS material, improving heat resistance and heat dissipation
Allows IP camera accessing and provides a running and clear image
Desktop and wall mounting simplify installation

Standar & Protokol
IEEE 802.3/u/x/ab

Antarmuka
8* 10/100/1000Mbps auto-negotiation RJ45 ports, auto MDI/MDIX

Media Transmisi
10BASE-T: Cat.3 or Above
100BASE-TX/1000BASE-T: Cat.5, Cat.5e or Above

Laju Pengalihan
10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps

LED
8*10/100/1000Mbps Link/Act LEDs
1*power LED

Fitur
Store-and-forward mechanism
Auto-learning and auto-aging MAC address
Switching capacity of 16Gbps

Masukan Daya Listrik
100-240V~50/60Hz

Hasil Daya Listrik
9V/0.6A

Konsumsi
Standby: 2.3W Maximum：5.5W（220V/50Hz）

Ukuran
142*90*24mm

Suhu Operasi
0℃~45℃

Kelembapan Operasi
10%~90% non-condensing

Suhu Penyimpanan
-40℃~70℃

Kelembapan Penyimpanan
5%~90% non-condensing

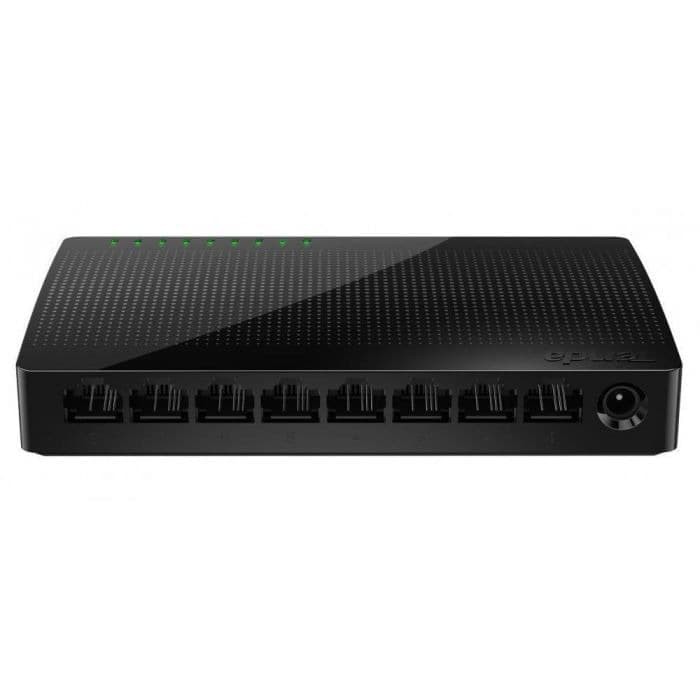

Gambar produk
