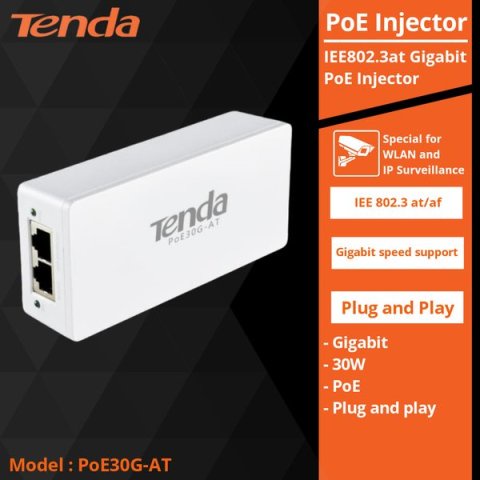

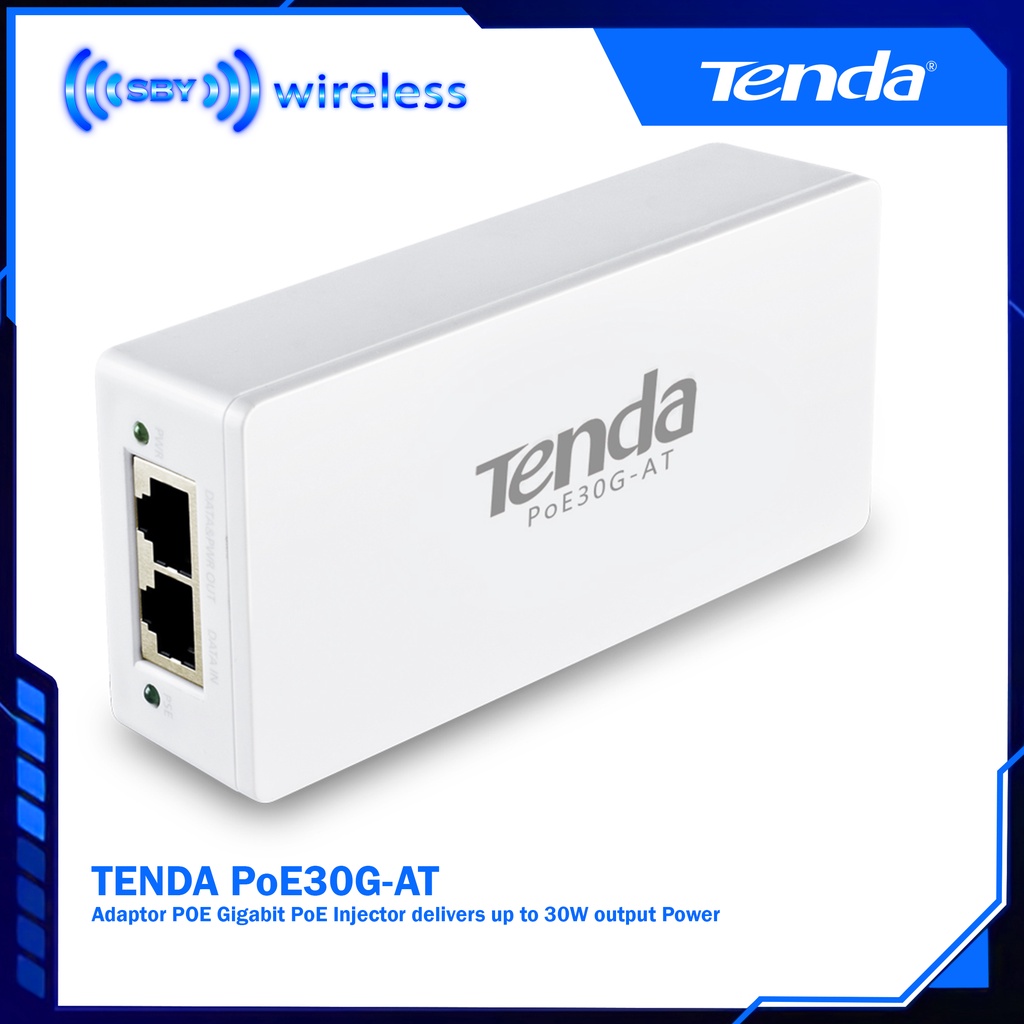

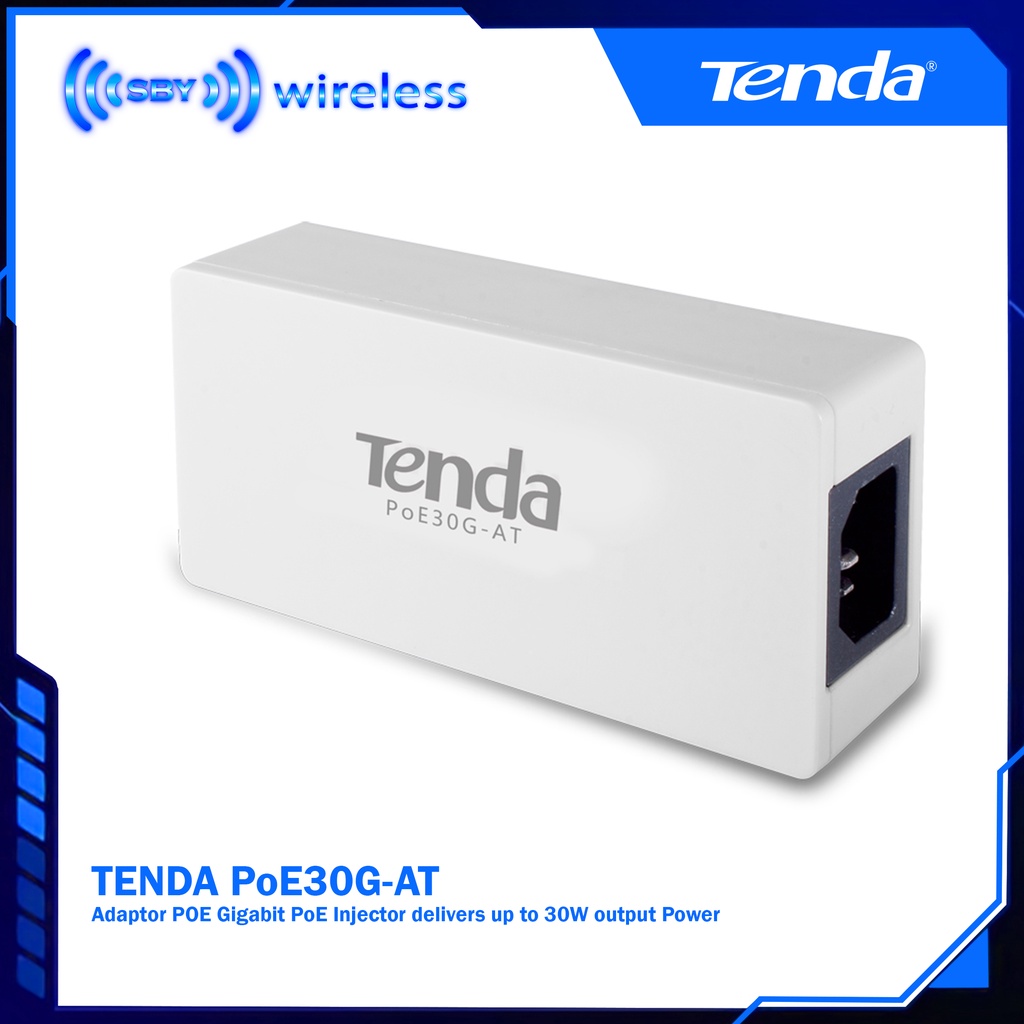

Tenda PoE30G-AT Adaptor POE Gigabit PoE Injector delivers up to 30W output Power

Detail Tenda PoE30G-AT Adaptor POE Gigabit PoE Injector delivers up to 30W output Power

Tenda PoE30G-AT Adaptor POE Gigabit PoE Injector delivers up to 30W output Power

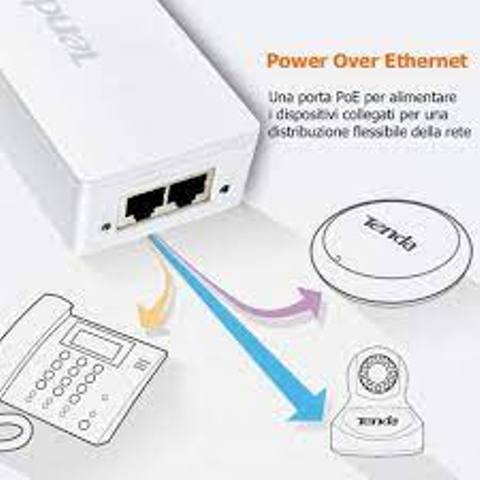

Tenda PoE30G-AT is IEEE802.3at Gigabit PoE Injector, fully complies wtih 802.3at standard, it enables to delivery power by Ethernet cable, maximum transfer distance is up to 100 meters. The PoE Injector features over two Ethernet Gigabit data port and a output port combined data and power. Also, the device enables to IEEE802.3af/at-compliant PoE power application for Ethernet device such as wireless AP, VoIP phone and web cam. PoE30G-AT supplies power by Ethernet cable, not only providing system reliability, traditional electric network extension but simplifing electric wires deployment.


Specification :

Hardware
Network standards
IEEE802.3、 IEEE802.3u 、IEEE802.3ab、IEEE802.3af、 IEEE802.3at
LED Indicator
PWR, PoE
Interfaces
1*10/100/1000 Base-T Ethernet Port(Data/PoE)
1*10/100/1000 Base-T Ethernet Port(Data)

Transmission media
Recommended: CAT5/5e UTP or better
Dimension
132.3mm*60mm*33mm
Level of protection
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Transmission Rate
1000Mbps
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 30W
Power consumption
30W
Input voltage
100－240V AC 50/60Hz
51V/0.8A DC（Power Adapter Output）
Mounting
Desktop mounting: support
Environment
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC、CE 、RoHS、UL
