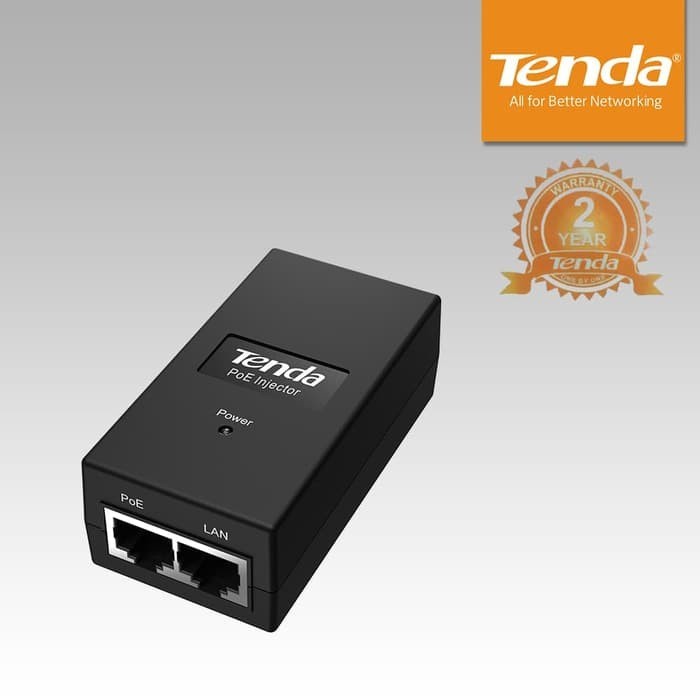

TENDA POE15F 100Base-T 802.3af PoE Injector - PoE Adapter

Detail TENDA POE15F 100Base-T 802.3af PoE Injector - PoE Adapter

WAJIB CHAT untuk cek stok!
====================
100% Brand New and Original

Tenda POE150F

Tenda PoE injector POE15F can realize the synchronous transmission of network data and power through an Ethernet cable (Cat.5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af's PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.

Network standards
IEEE802.3、IEEE802.3u

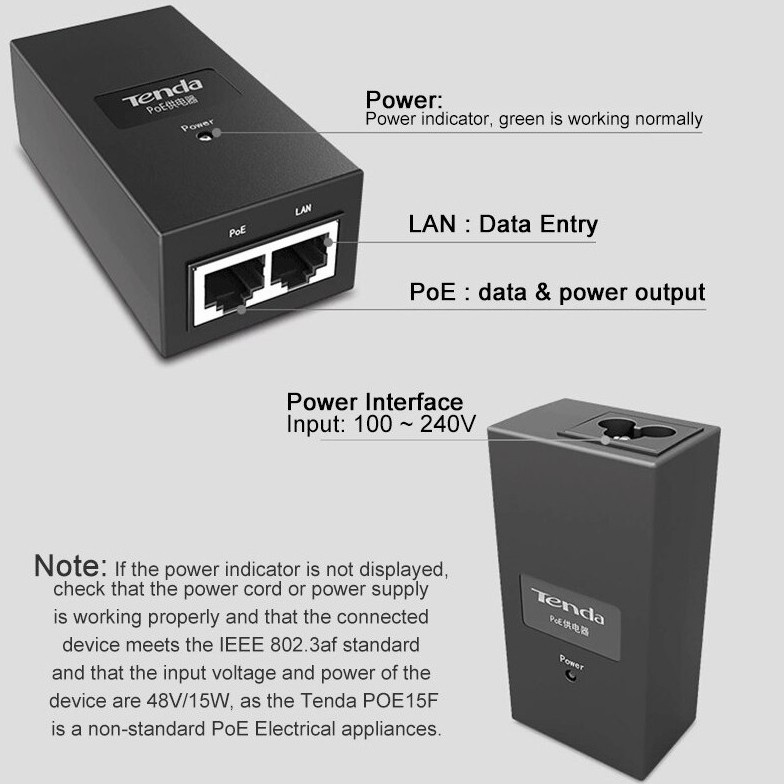

LED Indicator
Link/Act , PoE Status
Interfaces
1*10/100 Base-TX Ethernet ports(Data/PoE)
1*10/100 Base-TX Ethernet ports(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
84.5mm*44mm*29.8 mm
Level of protection
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Transmission Rate
100Mbps
PoE budget
Single port: AF: 15.4W
Whole device: 15W
Power consumption
15W
Input voltage
100－240V AC 50/60Hz
48V/0.3A DC（Power Adapter Output）
Mounting
Desktop mounting: support
Environment
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC、CE、RoHS
