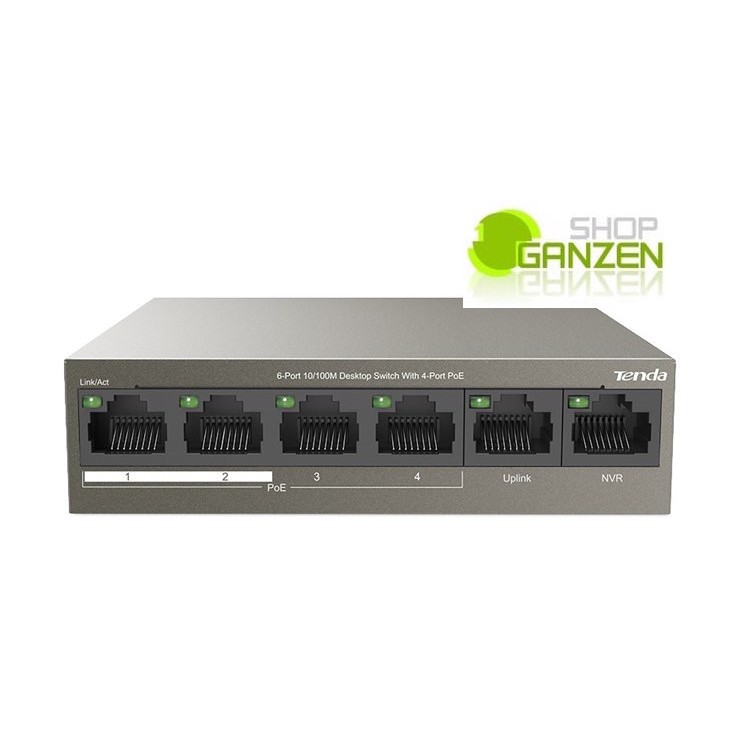

Tenda POE Switch TEF1106P 63W 4 Port + 2 Uplink

Detail Tenda POE Switch TEF1106P 63W 4 Port + 2 Uplink

Deskripsi TENDA POE SWITCH 4 PORT + 2 PORT UPLINK 10/100

Tenda TEF1106P

Standard & ProtocolIEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3af、IEEE 802.3at
Indicator 6*Link/Act per device
4*PoE per device
1*Power per device
Interface4 10/100Base-Tx ports(Data/Power)
10/100Base-Tx port(Data)
PortLightning Protection: 6KV
Store & ForwardYes
exchange capacity1 Gbps
Packet Forwarding Rate0.744Mpps
MAC Address Table2K
PoE supply managementPort 1 to Port 4 support IEEE802.3at/af PoE standard
PoE through pin1 2 4 5 +，3 6 7 8 -
Power InputAC：100-240V～ 50/60Hz
Dimension100*100*26mm ( W x D x H )
Power Consumptionin full configuration：<63W
PoE Max Power Supply：58W
Ports feature Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
