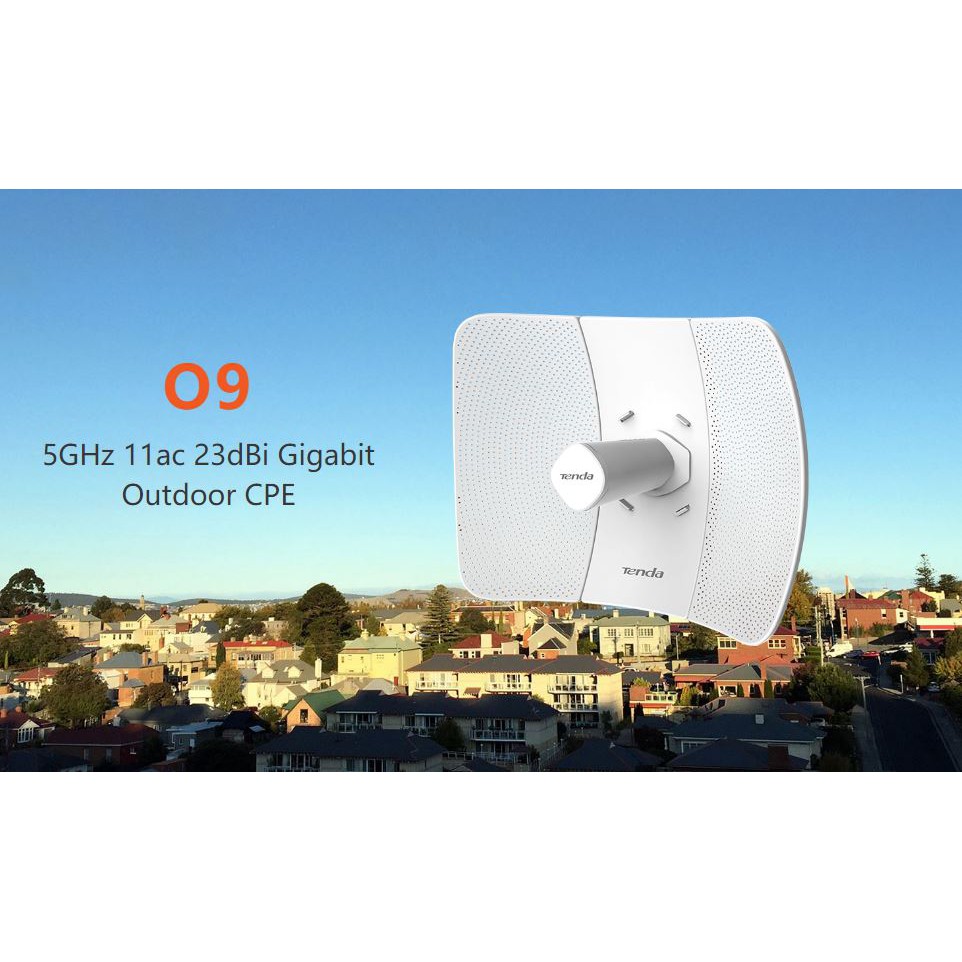

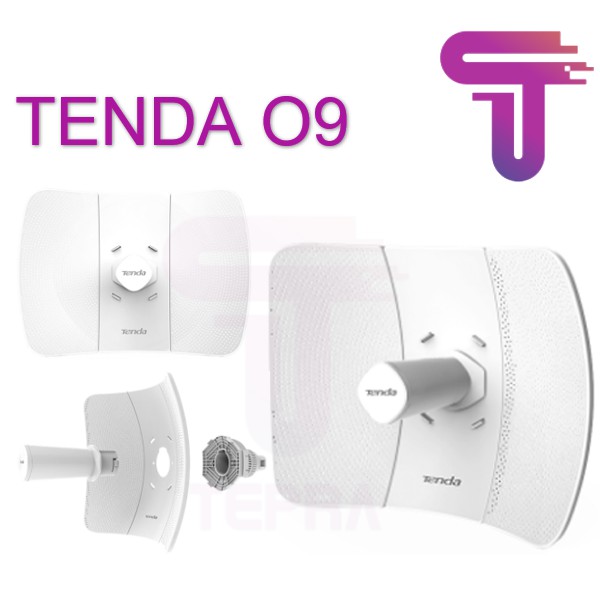

TENDA O9 5GHz 11ac 23dBi Gigabit Outdoor CPE

Merek: Tenda | Lihat selengkapnya produk Komputer & Aksesoris dari Tenda
Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > TENDA O9 5GHz 11ac 23dBi Gigabit Outdoor CPE
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail TENDA O9 5GHz 11ac 23dBi Gigabit Outdoor CPE

TENDA O9 5GHz 11ac 23dBi Gigabit Outdoor CPE

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

O9 5GHz 11ac 23dBi gigabit outdoor CPE is designed to PtP and PtMP solutions for privated ISP wireless connectivity, CCTV surveillance and data transmission. It features with 23dBi directional dual polarization antenna to provide an efficient way to pick up and maintain a stable long-distance connectivity up to 25km. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup.

Ukuran391.5*280*223mm
DeploymentPole Mount
Application ScenariosPtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Kisaran Frekuensi5GHz
Compliant StandardsIEEE 802.11a/n/ac
Private TDMA ProtocolTD-MAX
Maximum Wireless Rate867Mbps
Antarmuka1*10/100/1000Mbps Ethernet Port
Antenna gain23dBi
Beamwidth AntenaHorizontal: 10° Vertical: 10°
Konsumsi Daya Listrik7.5W
Tingkat Kedap AirIP65
ledPoE/LAN, LED1, LED2, LED3
Metode Daya Listrik24V0.5A Passive PoE
Proteksi petir6000V
Passive PoEPassive power over ethenet via PoE/LAN (+4,5pins-7,8pins)
Voltage range: 21-25V DC
Sensitivitas Penerimaan11a 6Mbps -96dBm±1.5dBm
11n MCS7 HT20 -72dBm±
1.5dBm 11ac MCS9 HT80 -65dBm±1.5dBm
Mode OperasiAP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless RadioSupport
SSID HiddenSupport
Wireless Client isolationSupport
SSID IsolationSupport
Channel Bandwidth20/40/80MHz
WMM CapableSupport
APSD CapableSupport
Keamanan Nirkabel64/128 WEP, WPA-PSK, WPA2-PSK, WPA&WPA2-PSK, WPA, WPA2
Transparent BridgeSupport
VLAN Tagging for SSIDSupport
Server DHCPSupport
Lintasan VPNPPTP, L2TP
Dikelola oleh PengontrolPC Software - CPE Assistant
Isi Paket1*5GHz 11ac 23dBi Gigabit Outdoor CPE O9
1*PoE Power Adapter
1*Quick Installation Guide
Suhu Operasi-30℃ ~ 60℃
Suhu Penyimpanan-40℃ ~ 70℃
Kelembapan Operasi10%~90% non-condensing
Kelembapan Penyimpanan10%~90% non-condensing
Default IP192.168.2.1
Nama Pengguna Masuk Defaultadmin
Kata Sandi Masuk Defaultadmin
SertifikasiFCC/CE/RoHS
