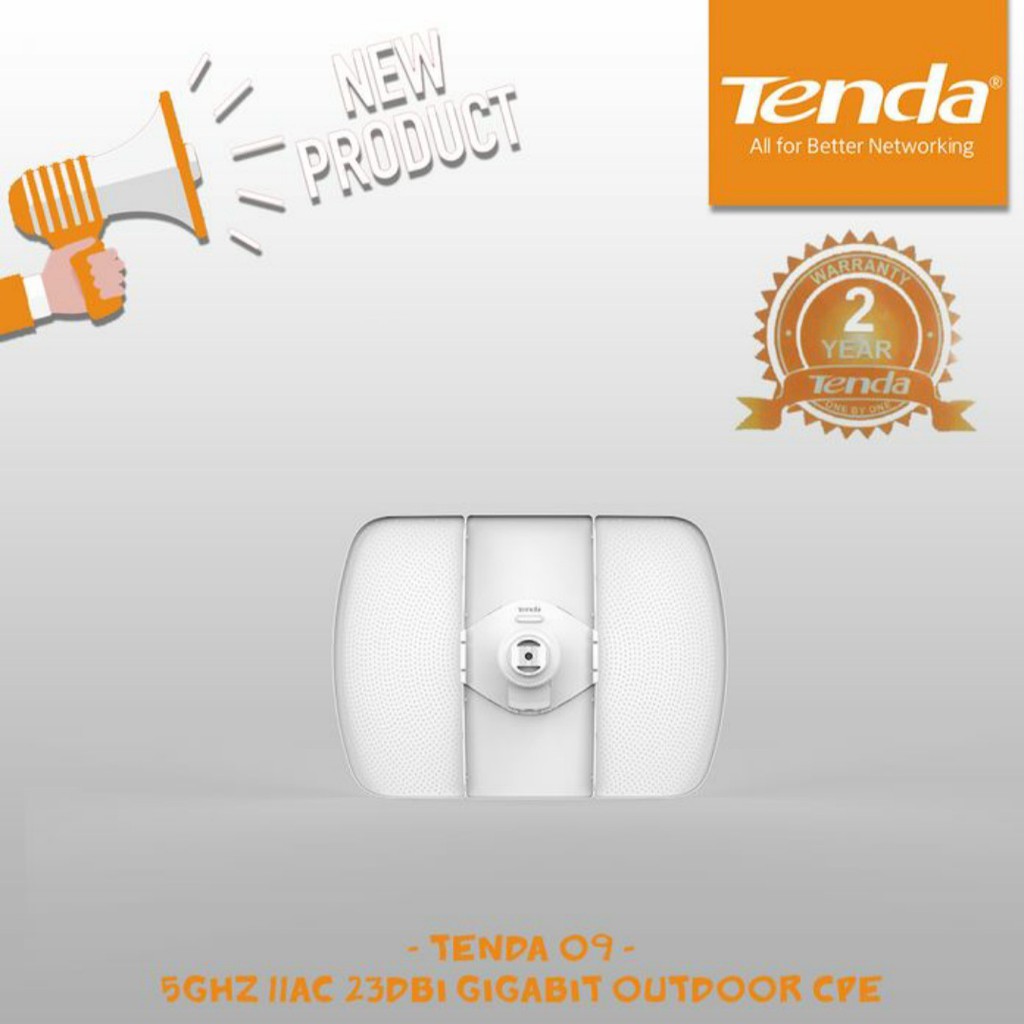

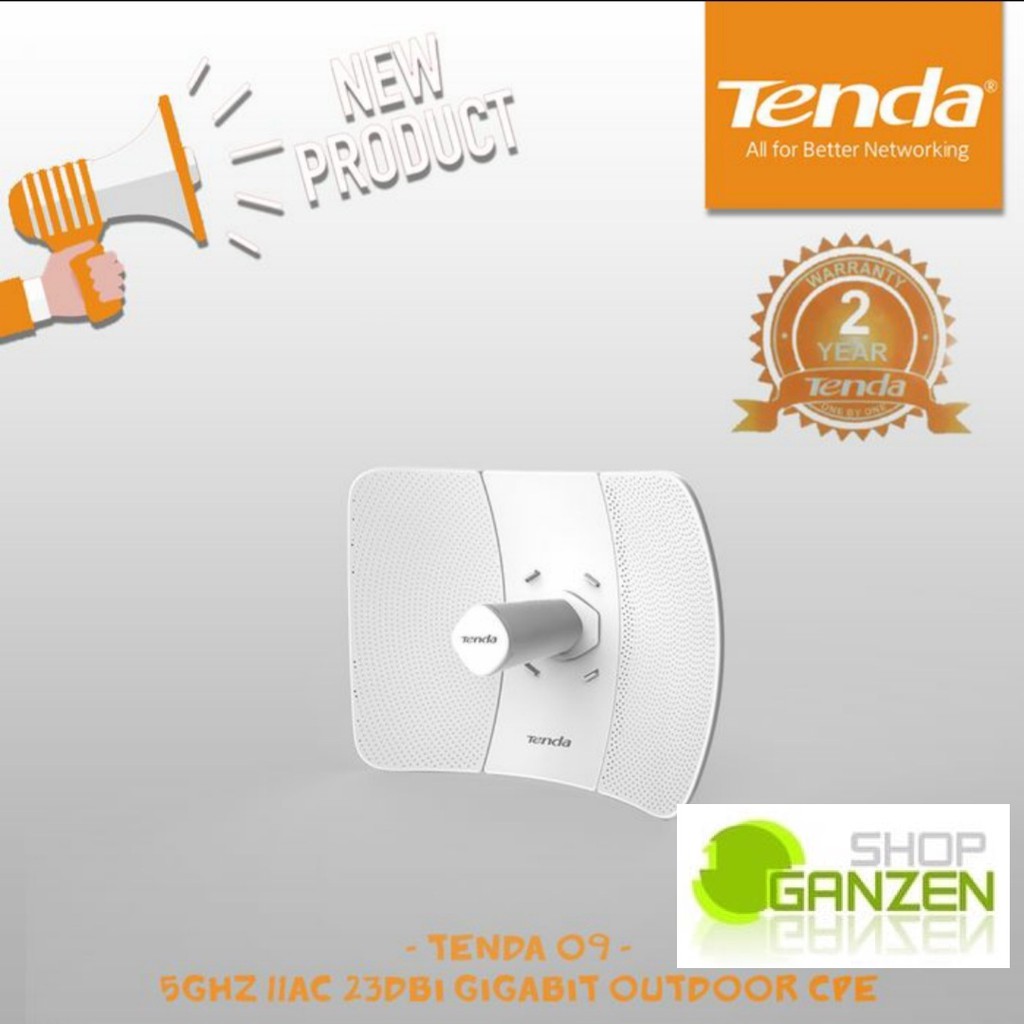

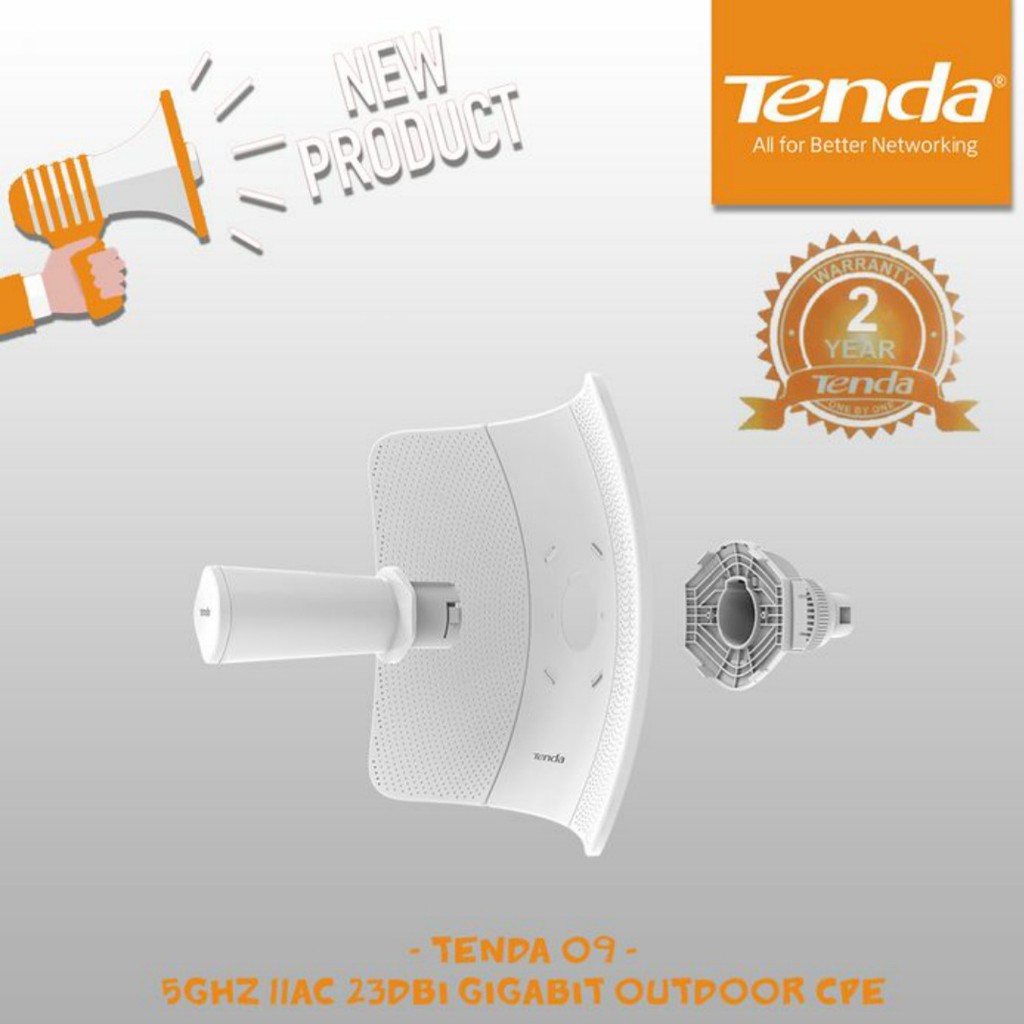

Deskripsi Tenda O9 - 5GHz 11ac 23dBi Gigabit Outdoor CPE O9 5GHz 11ac 23dBi gigabit outdoor CPE dirancang untuk solusi PtP dan PtMP untuk konektivitas nirkabel ISP pribadi, pengawasan CCTV, dan transmisi data. Ini fitur dengan antena polarisasi dual directional 23dBi untuk memberikan cara yang efisien untuk mengambil dan menjaga konektivitas jarak jauh yang stabil hingga 25 km. Mengadopsi teknologi auto-bridging, dua CPE dapat terhubung satu sama lain secara otomatis untuk memudahkan pengaturan.
Dimension391.5*280*223mm DeploymentPole Mount Application ScenariosPtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance Frequency Range5GHz Compliant StandardsIEEE 802.11a/n/ac Private TDMA ProtocolTD-MAX Maximum Wireless Rate867Mbps Interface1*10/100/1000Mbps Ethernet Port Antenna gain23dBi Antenna BeamwidthHorizontal: 10° Vertical: 10° Reset Button1 Power Consumption7.5W Waterproof LevelIP65 LED indicatorPoE/LAN,LED1,LED2,LED3 Power Method24V0.5A Passive PoE Lightning Protection6000V Passive PoEPassive power over ethenet via PoE/LAN (+4,5pins -7,8pins ) Voltage range: 21-25V DC Reception Sensitivity11a 6Mbps -96dBm±1.5dBm 11n MCS7 HT20 -72dBm±1.5dBm 11ac MCS9 HT80 -65dBm±1.5dBm Operating ModeAP/Station/WISP/P2MP/WDS Repeater/Router Enable/Disable Wireless RadioSupport SSID HiddenSupport Wireless Client isolationSupport SSID IsolationSupport Channel Bandwidth20/40/80MHz Channel ShiftSupport Wireless Access ControlSupport Weak Signal Client LimitationSupport Transmit PowerAdjustable power by 1dBm WMM CapableSupport APSD CapableSupport Wireless Security64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 Transparent BridgeSupport VLAN Tagging for SSIDSupport DHCP ServerSupport VPN Pass-throughPPTP,L2TP Remote Web accessSupport Schedule RebootSupport Page TimeoutSupport Ping WatchdogSupport Dynamic DNSnoip, dyndns.org Network DiagnosesPing, Traceroute, Signal Scan Time&Date SettingSupport Firmware UpgradeSupport Backup/Restore ConfigurationSupport Username ManagermentSupport
