Tenda O3 V.2 Wireless Outdoor 2.4Ghz

Detail Tenda O3 V.2 Wireless Outdoor 2.4Ghz

Garansi Resmi 1 Tahun !!

Deskripsi :
Model : Tenda O3
Dimension 270*94.86*67.5mm
Deployment Pole Mount
Application Scenarios WISP CPE, Data transmission and Long range video surveillance
Frequency 2.4GHz
Maximum wireless speed1 50Mbps
Interface 2*10/100Mbps Ethernet Port
Antenna 12dbi
Antenna Beamwidth Horizontal: 60°
Elevation: 30°
Reset Button1
GND Terminal1
Power Consumption 4.3W
Waterproof Level IP64
LED indicator PoE/LAN,LED1,LED2,LED3
Power Method 12V1A Passive PoE
Lightning Protection 6000V
Passive PoE power supply Passive power over ethenet via PoE/LAN ( 4,5pins -7,8pins)
Voltage range: 11-13.8V DC
Reception Sensitivity MCS0: -96dbm
MCS7: -72dbm
Operating mode : AP/Station/WISP/P2MP/WDS Repeater/Router
Standard&Protocol IEEE 802.11b/g/n
Enable/Disable Wireless Radio Support
SSID HiddenSupport
Wireless Client isolation Support
SSID Isolation Support
Client Limitation For SSID Support
Wireless Access Control Support
Weak Signal Client Limitation Support
Transmit Power Adjustable power by 1dBm
WMM Capable Support
APSD Capable Support
Wireless Security : 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transmission Media Support
VLAN Tagging for SSID Support
DHCP Server Support
VPN Pass-through PPTP,L2TP
Remote Web access Support
Schedule Reboot Support
Page Timeout Support
Ping Watchdog Support
Dyndnsno ip, dyndns.org
Network Diagnoses Ping, Traceroute, Signal Scan
Time&Date Setting Support
Firmware Upgrade Support
Backup/Restore Configuration Support
Username Managerment Support
Syslog Support
Managed By Controller PC Software -- CPE Assistant
Package Content :
1*5km Point to Point Outdoor CPE
1*Power Adapter
1*PoE Injector
2*Plastic Staps
1*Quick Installation Guide

Temperature Operating Temperature:-30℃ ~ 60℃
Storage Temperature:-40℃ ~ 70℃
Humidity Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Default Settings Default login IP:192.168.2.1
Default Login Username:admin
Default Login Password:admin
Certification FCC/CE/RoHS

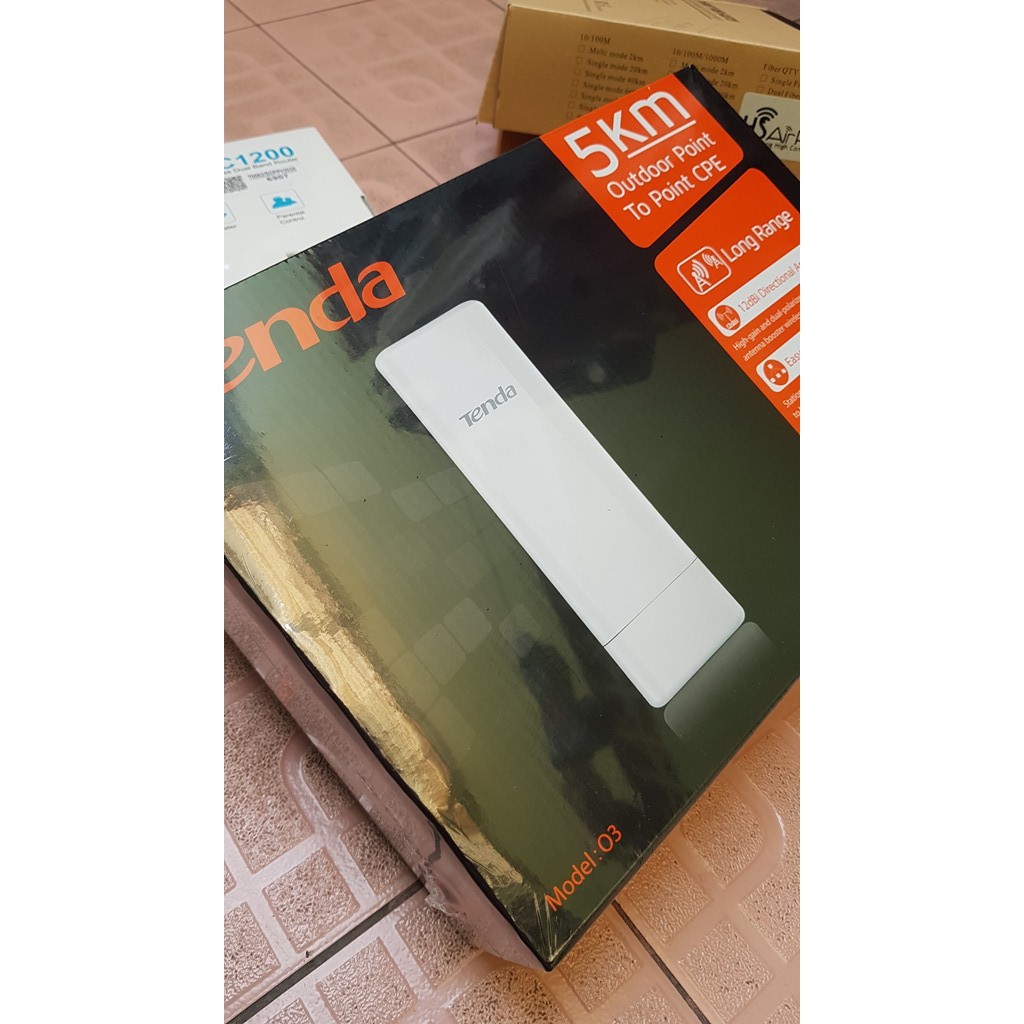

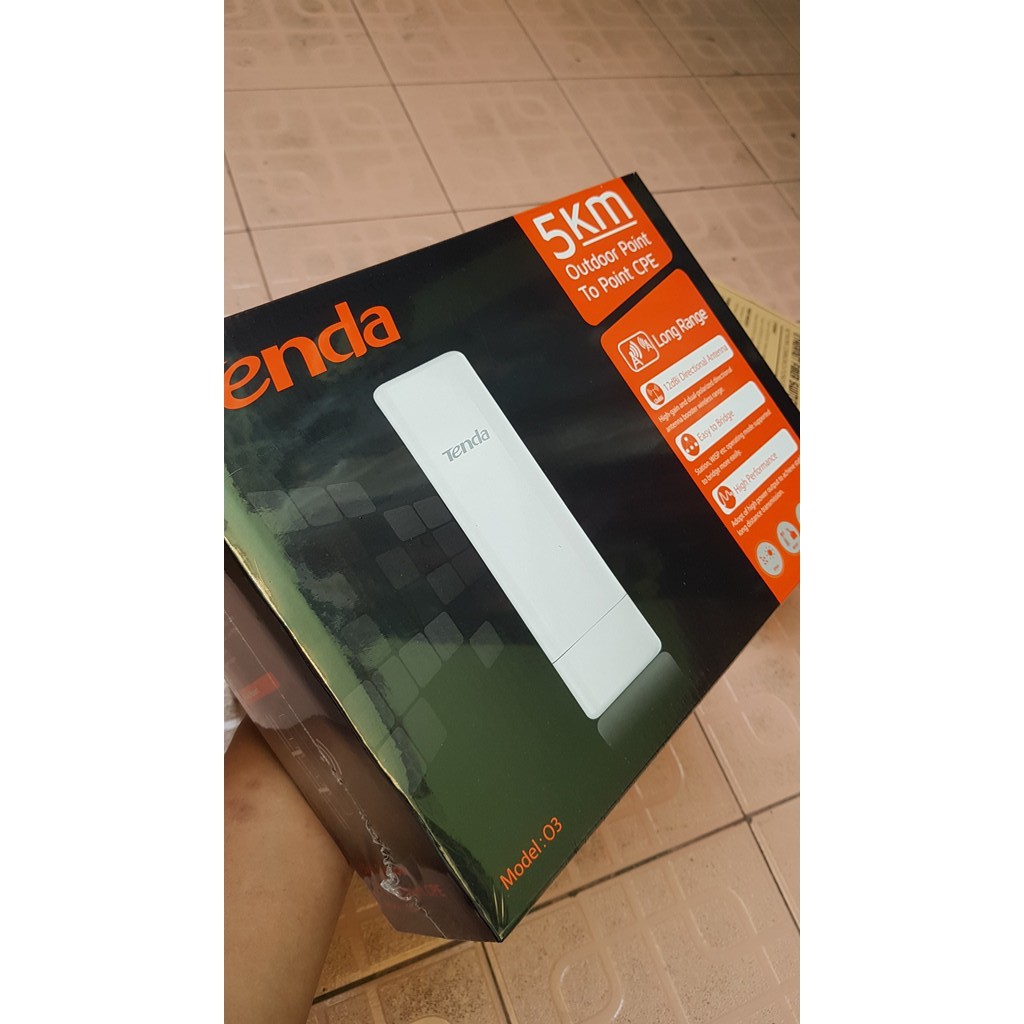

Gambar produk
