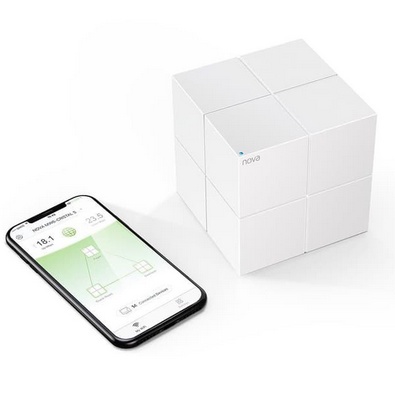

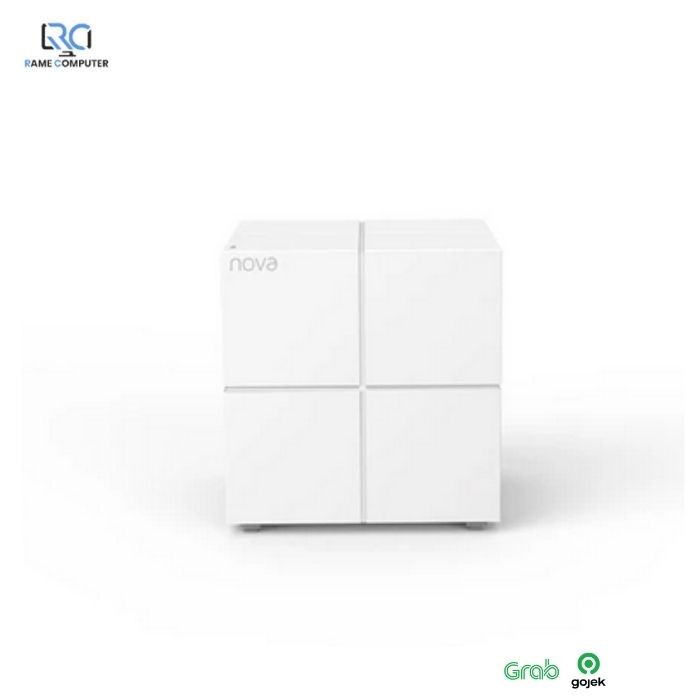

Tenda Nova MW6 Set 1 - Whole Home Mesh WiFi System

Detail Tenda Nova MW6 Set 1 - Whole Home Mesh WiFi System

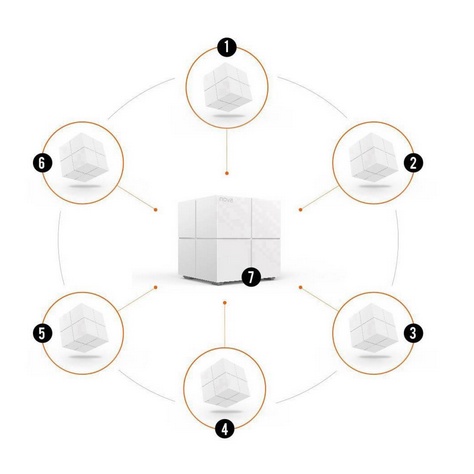

nova MW6 is powered with true Mesh technology, a set of three units cover home up to 6,000 sq.ft with strong Wi-Fi signals. Smart Auto-path Selection Technology to ensure a robust wireless network and maximize a faster home internet.

Standard&Protocol
IEEE802.3, IEEE802.3ab

Interface
2 Gigabit Ethernet ports per mesh point
WAN and LAN on primary mesh point
both act as LAN ports on additional mesh points

Button
1 reset button

Power
Input：100-240V—50/60Hz, 0.6A
Output：DC 12V==1A

Dimension
100 x 100 x 100mm(3.1 x 3.1 x 3.1in.)

Wireless Standards
IEEE 802.11ac/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz

Data Rate
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps

Frequency
Simultaneous dual band 2.4GHz & 5GHz

Basic Features
SSID Broadcast
Beamforming
Support MU-MIMO

Wireless Security
WPA2-PSK(default)

Wireless roaming
Comply with IEEE802.11v/r

Internet Connection Type
PPPoE, Dynamic IP, Static IP, Bridge Mode

DHCP
DHCP Server
DHCP Client List

Virtual Server
Port Forwarding
UPnP

Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack

DNS
Support manually setting DNS server

VPN
IPsec pass through
PPTP pass through
L2TP pass through

Other
Parental Control
Guest Network
Firmware upgrade online
Reset to factory settings

System Requirement
A mobile device running Android 4.0+ or iOS 8+

Temperature
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.

Humidity
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.

Certification
FCC, CE, RoHS, EAC, IC
