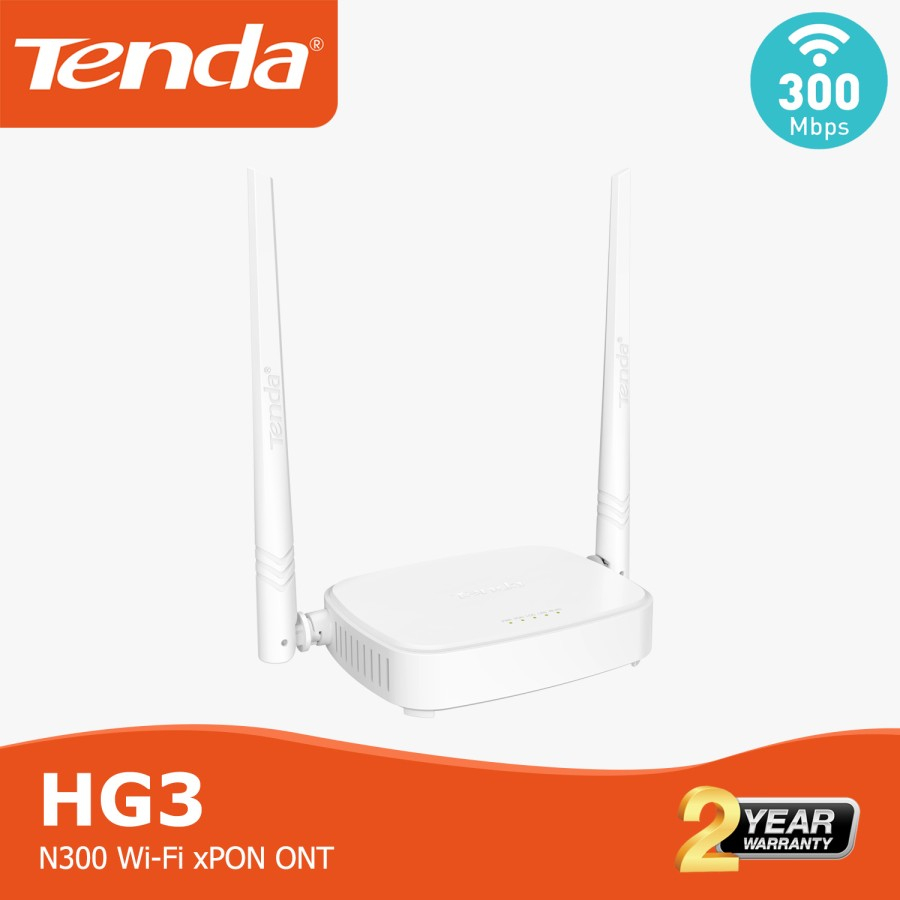

Tenda HG3 N300 Wi-Fi xPON ONT

Detail Tenda HG3 N300 Wi-Fi xPON ONT

Hardware
IEEE Standards : IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON Standards : GPON: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4
EPON: IEEE802.3ah
Interfaces : 1*SC/APC (or UPC) Port, 1*1000Mbps RJ45 LAN Port, 1*100Mbps RJ45
LAN Port, 1*DC Port
LED Indicator : 1*WPS/RST Button
Button : 1*WPS/RST Button
Optical Mode : Class B+
Optical Wavelength : Transmit at 1310nm, Receive at 1490nm
Transmission Distance : 20km Max
Bandwidth
Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
Dimension : 166.6*90.5*27mm (W * D * H)
TX Power : 0.5~5dBm
RX Power : -28~-8dBm
External Power Supply : DC 9V /1A
Power Consumption : ≤9w

Software
DHCP Server : PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
WAN Connection : PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
Business Type : TR069, Internet, IPTV
Quality Of Service : Bandwidth Control
IP Version : IPv4, IPv6
Services : DHCP, Dynamic DNS , IGMP Proxy UPnP
VPN Pass-through : PPTP, L2TP, IPsec Pass-through
Firewall : ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ
IPv6 : Radvd, DHCPv6, MLD Proxy, MLD Snooping

Wireless
Frequency : 2.4GHz
Bandwidth : 20M/40M
Channel Range : CH1-CH13
Antenna : 2 * 5 dBi Antenna
Easy Client Setup : WPS/RST Button
Speed : 11n 300M
Transmission Power : <20 dBm(EIRP)
Wireless Functions : Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security : 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering
SSIDs : Main SSID ,4 Guest SSIDs
Max Terminal Linked : 16
Environment
Operation Temperature : 0°c ~ 45°c
Storage Temperature : -40°c ~ 70°c
Operating Humidity : 10% ~ 90% (Non-condensing)
Storage Humidity : 5% ~ 90% (Non-condensing)
Others
Package Contents : 1*HG3, 1* Power adapter, 1* User Manual, 1* RJ45 cable
Certification : CE, FCC , RoHS
