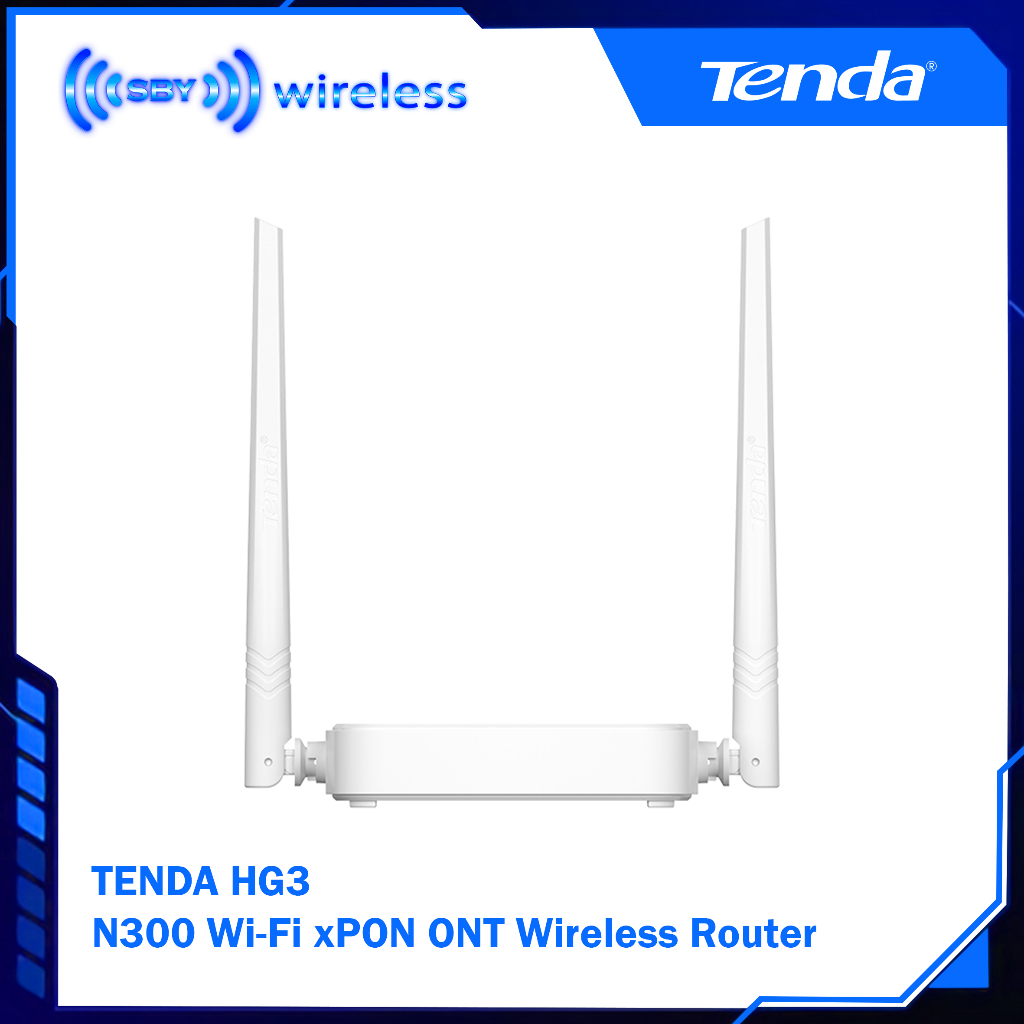

TENDA HG3 N300 Wi-Fi xPON ONT Wireless Router

Detail TENDA HG3 N300 Wi-Fi xPON ONT Wireless Router

Specification
Hardware
IEEE Standards
IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z

PON Standards
GPON: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4
EPON: IEEE802.3ah

Interfaces
1*SC/APC (or UPC) Port, 1*1000Mbps RJ45 LAN Port,
1*100Mbps RJ45
LAN Port, 1*DC Port

LED Indicator
1*WPS/RST Button

Button
1*WPS/RST Button

Optical Mode
Class B+

Optical Wavelength
Transmit at 1310nm, Receive at 1490nm

Transmission Distance
20km Max

Bandwidth
Upstream 1.25Gbps Max, Downstream 2.5Gbps Max

Dimension
166.6*90.5*27mm (W * D * H)

TX Power
0.5~5dBm

RX Power
-28~-8dBm

External Power Supply
DC 9V /1A

Power Consumption
≤9w

Software
DHCP Server
PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection

WAN Connection
PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection

Business Type
TR069, Internet, IPTV

Quality Of Service
Bandwidth Control

IP Version
IPv4, IPv6

Services
DHCP, Dynamic DNS , IGMP Proxy UPnP

VPN Pass-through
PPTP, L2TP, IPsec Pass-through

Firewall
ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ

IPv6
Radvd, DHCPv6, MLD Proxy, MLD Snooping

Diagnostics
Ping, Ping6, Tracert, Tracert6

TR069
ACS, Connection request

VoIP
-

Wireless
Frequency
2.4GHz

Bandwidth
20M/40M

Channel Range
CH1-CH13

Antenna
2 * 5 dBi Antenna

Easy Client Setup
WPS/RST Button

Speed
11n 300M

Transmission Power
<20 dBm(EIRP)

Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering

SSIDs
Main SSID ,4 Guest SSIDs

Max Terminal Linked
16

Environment
Operation Temperature
0°c ~ 45°c

Storage Temperature
-40°c ~ 70°c

Operating Humidity
10% ~ 90% (Non-condensing)

Storage Humidity
5% ~ 90% (Non-condensing)

Others
Package Contents:
1*HG3 unit,
1* Power adapter,
1* User Manual,
1* RJ45 cable


Certification
CE, FCC , RoHS
