Tenda F9 Wireless Router N 600Mbps

Detail Tenda F9 Wireless Router N 600Mbps

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

Tenda F9 4 * 6dBi Antena penerimaan yang tinggi dari segala arah, jangkauan dan keandalan Wi-Fi yang luar biasa,Kecepatan tinggi 600Mbps dan keseluruhan jangkauan Wi-Fi router,Dibanding produk 450Mbps dan 300Mbps, transmisinya lebih efisien dan lancar.Mendukung lebih banyak koneksi perangkat secara bersamaan

Standard&Protocol: IEEE802.11b,IEEE 802.11g, IEEE 802.11n

Interface: 1*10/100/100Mbps WAN port, 3* 10/100/100Mbps LAN ports

Button: 1*WPS/RST,1*WIFI

Indicator: SYS "'WiFi"' 1"' 2"' 3"' WAN "' WPS

Chipset: Realtek

Flash: 2MB

Memory: 16MB

Output Power: 9V1A

Plug Type: Chinese-standard
American-standard
British-standard
European-standard

Power Consumption: No-load 1.66W
Full-load 1.98W

Dimension: 171.3mm*171.3mm*36.4mm

Temperature: Operating Temperature:0"C~40"C
Storage Temperature:-40~70'"

Humidity: Operating Humidity:10%~90%, non-condensing
Storage Humidity:5%~90%, non-condensing

Modulation: 802.11b: DSSS ( DBPSK / DQPSK / CCK )
802.11g: OFDM ( BPSK / QPSK / 16QAM / 64QAM )
802.11n: OFDM ( BPSK / QPSK / 16QAM / 64QAM )
802.11n: OFDM ( BPSK / QPSK / 16QAM / 64QAM / 256QAM )

Data Rate: 802.11b : 11 Mbps
802.11g : 54 Mbps
802.11n : 450Mbps
802.11n (256QAM): 600Mbps

Frequency: 2.4~2.4835 GHz

Power: 802.11b-1M: 21.5 dBm 1.5 dBm
802.11g-54M: 17.5 dBm 1.5 dBm
802.11n-MCS7: 17 dBm 1.5 dBm
802.11n-VHT: 15 dBm 1.5 dBm

Reception Sensitivity: 802.11b-1M: -95 dBm /802.11g-54M: -74 dBm / 802.11n-MCS7: -72 dBm/ 802.11n-VHT: -62 dBm
150Mbps""'-70 Bm@10% PER
108Mbps""'-73 dBm@10% PER
54Mbps""'-74 dBm@10% PER
11Mbps""'-86 dBm@8% PER
6Mbps""'-90 dBm@10% PER
1Mbps""'-95 dBm@8% PER

Antenna: 4*6dBi external non-detachable

Package Content: Refer to Quick Installation Guide and User Manual

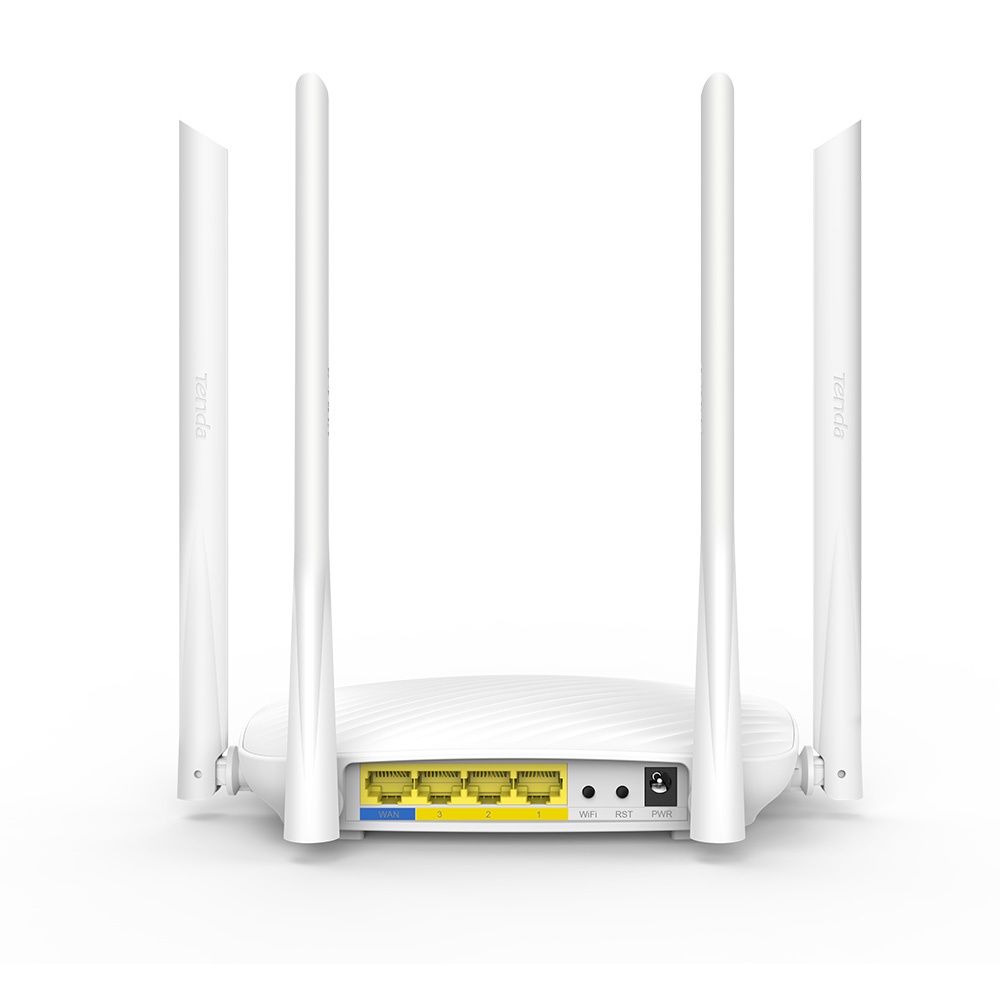

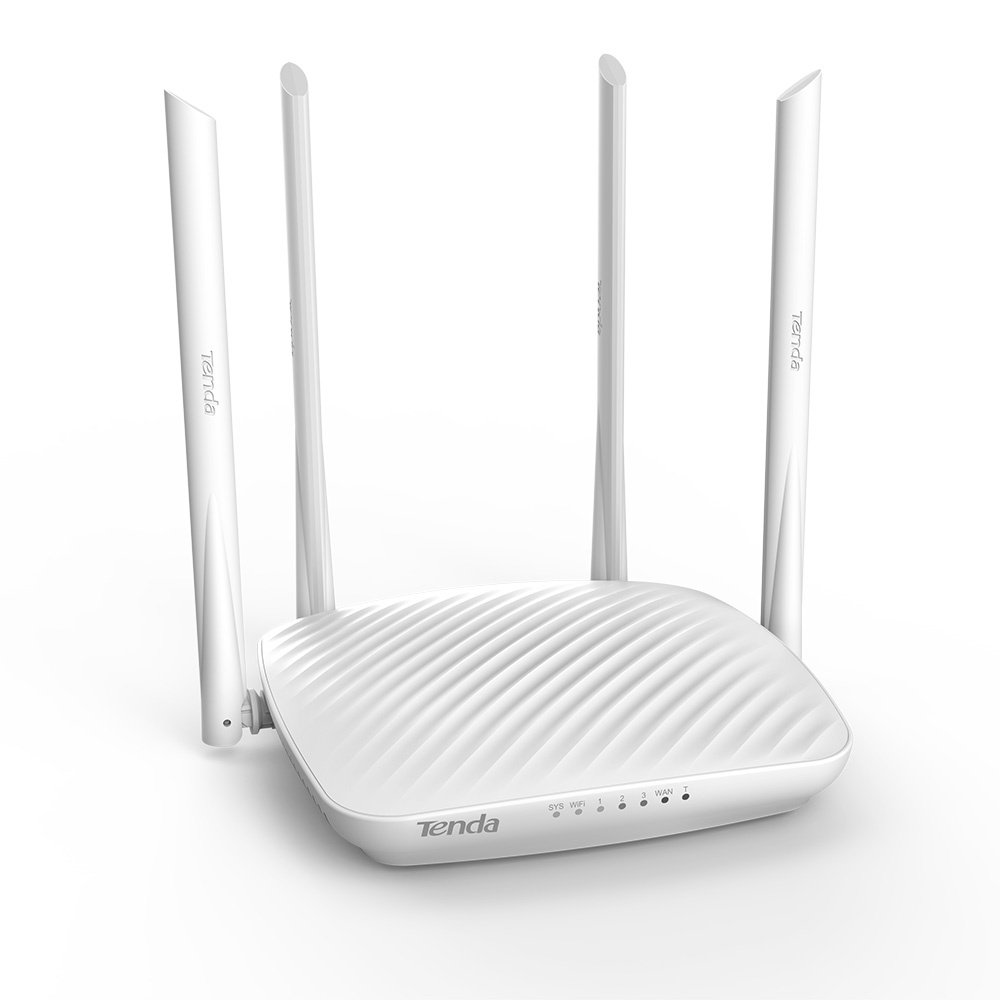

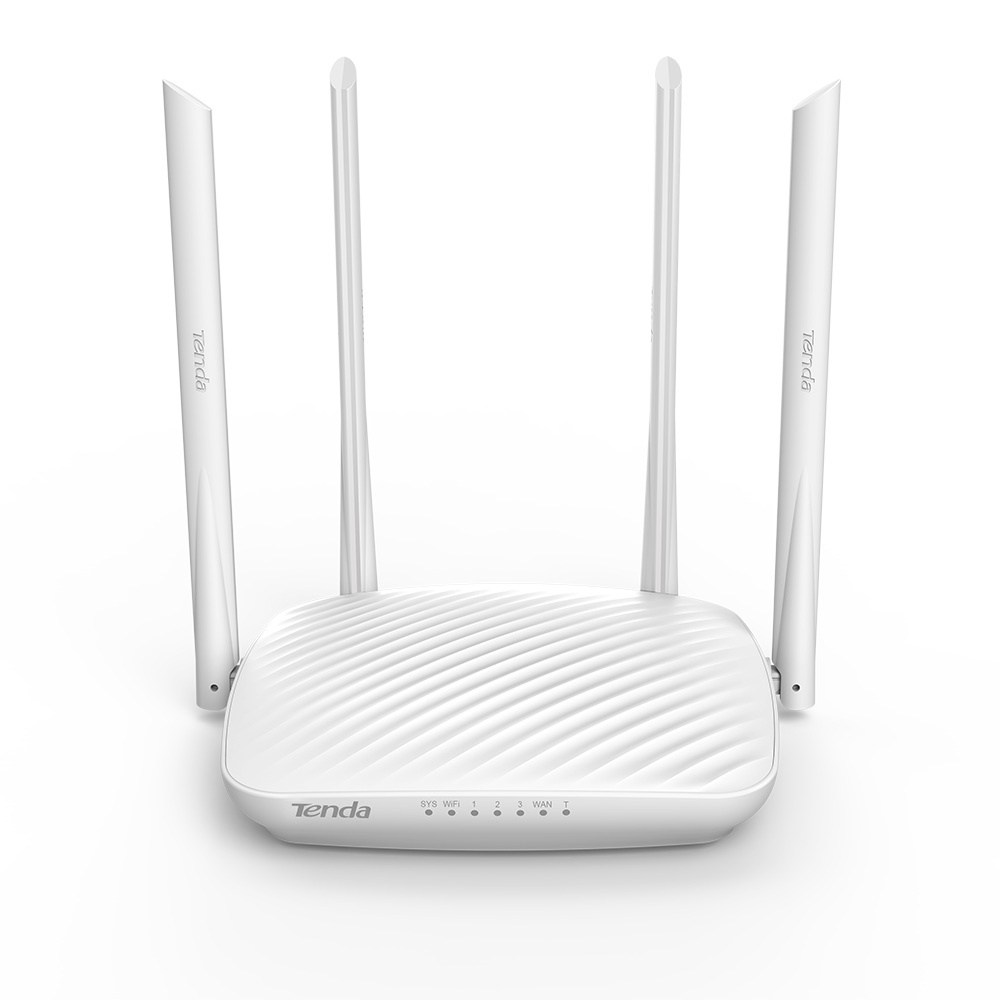

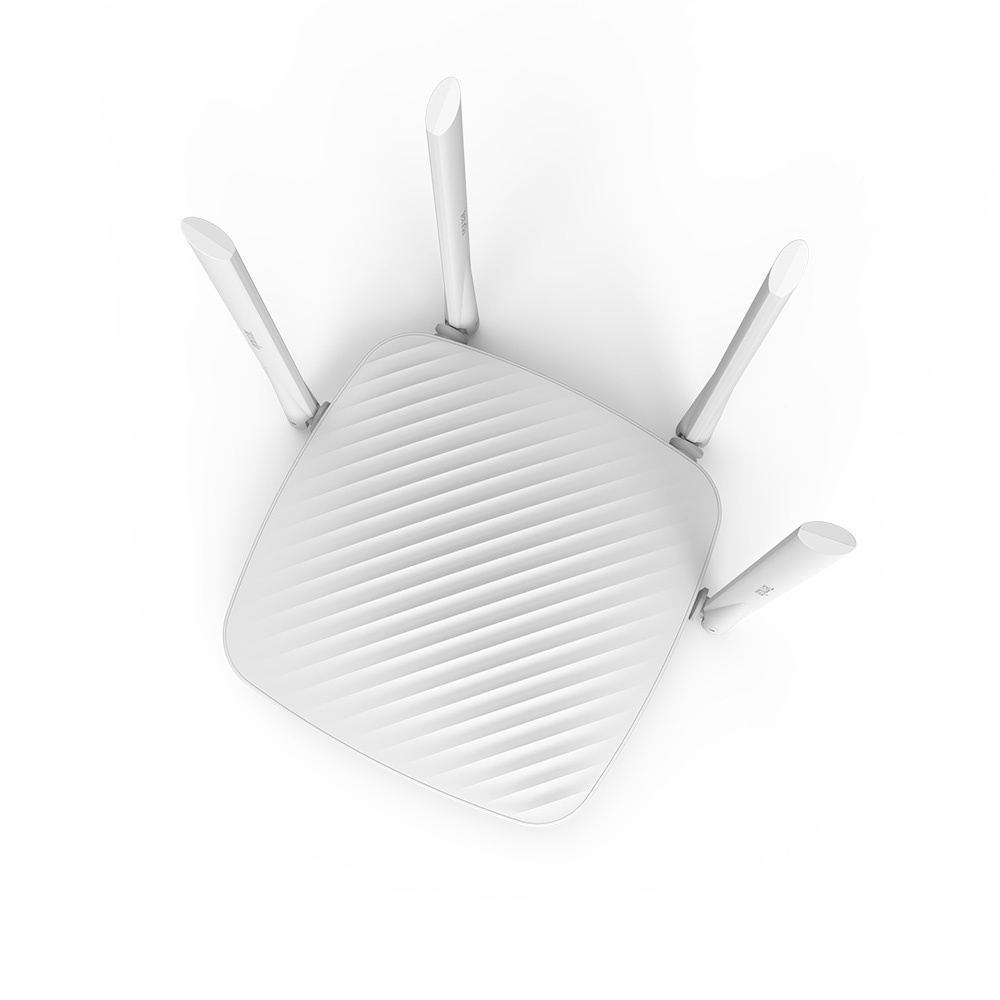

Gambar produk
