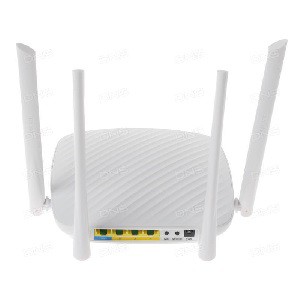

Tenda F9 Router 600M Whole-Home Coverage Wi-Fi Router

Detail Tenda F9 Router 600M Whole-Home Coverage Wi-Fi Router

Output Power9V1A

Plug TypeChinese-standard

American-standard

British-standard

European-standard

Power ConsumptionNo-load 1.66W

Full-load 1.98W

Dimension171.3mm*171.3mm*36.4mm

TemperatureOperating Temperature:0ºC~40ºC

Storage Temperature:-40~70℃

HumidityOperating Humidity:10%~90%, non-condensing

Storage Humidity:5%~90%, non-condensing

Modulation802.11b: DSSS ( DBPSK / DQPSK / CCK )

802.11g: OFDM ( BPSK / QPSK / 16QAM / 64QAM )

802.11n: OFDM ( BPSK / QPSK / 16QAM / 64QAM )

802.11n: OFDM ( BPSK / QPSK / 16QAM / 64QAM / 256QAM )

Data Rate802.11b : 11 Mbps

802.11g : 54 Mbps

802.11n : 450Mbps

802.11n (256QAM): 600Mbps

Frequency2.4~2.4835 GHz

Power802.11b-1M: 21.5 dBm ± 1.5 dBm

802.11g-54M: 17.5 dBm ± 1.5 dBm

802.11n-MCS7: 17 dBm ± 1.5 dBm

802.11n-VHT: 15 dBm ± 1.5 dBm

Reception Sensitivity802.11b-1M: -95 dBm /802.11g-54M: -74 dBm / 802.11n-MCS7: -72 dBm/ 802.11n-VHT: -62 dBm

150Mbps：-70 Bm@10% PER

108Mbps：-73 dBm@10% PER

54Mbps：-74 dBm@10% PER

11Mbps：-86 dBm@8% PER

6Mbps：-90 dBm@10% PER

1Mbps：-95 dBm@8% PER

Antenna4*6dBi external non-detachable

Package ContentRefer to Quick Installation Guide and User Manual

Standard VersionRFC768 UDP

RFC791 IP

RFC792 ICMP

RFC793 TCP

Channel Bandwidth: 20MHz、20/40MHz

Working ModeRouter、WISP、Universal Reader、AP

Wireless SecurityWPA-PSK/WPA2-PSK、WPA、WPA2

DHCP ServerSupport

System ToolInternet time、Backup/Recovery、Upgrade

Reset to Factory Default

Login Password

System Log

Reboot

System Requirementswindows 2000

IE 5.0 or Firefox1.0 or higher

Network Adapter
