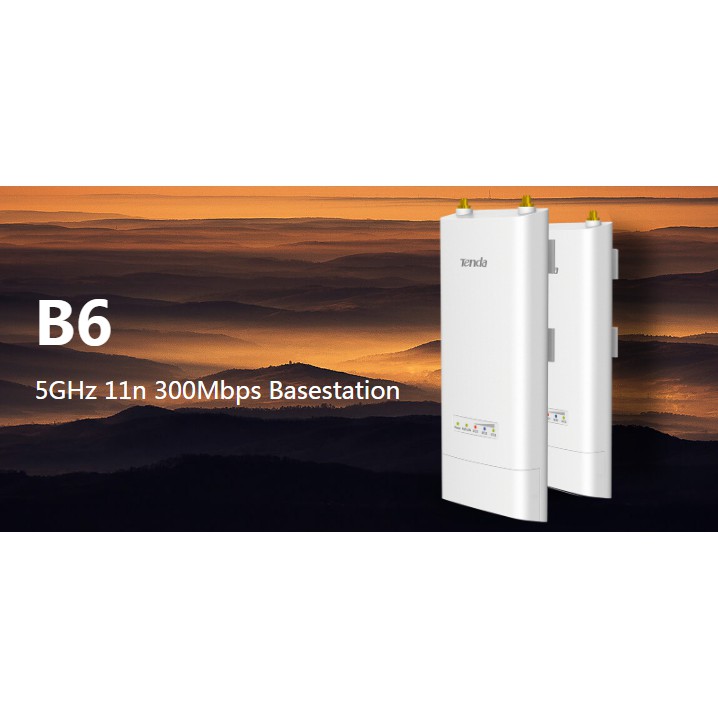

Tenda B6 Wireless Access Point 5GHz 11n 300Mbps Basestation

Merek: Tenda | Lihat selengkapnya produk Komputer & Aksesoris dari Tenda
Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > Tenda B6 Wireless Access Point 5GHz 11n 300Mbps Basestation
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Tenda B6 Wireless Access Point 5GHz 11n 300Mbps Basestation

B6 5GHz 11n 300Mbps Basestation is designed for PtP and PtMP solutions for rural wireless connectivity and CCTV surveillance.Features with two RP- SMA enable it to pair with dish antenna or sector antenna to establish PtP backhaul connection and P2MP link. It adopts Tenda TDMA (Time Division Multiple Access) proprietary protocol--TD-MAX to improve performance and capacity. The auto-bridging technology enable it easy to setup for both business and home users.

Dimension194.7*83*42.1mm
DeploymentPole Mount
Application ScenariosPtP, PtMP for rural wireless connectivity and CCTV surveillance
Frequency Range5GHz
Standard&ProtocolIEEE 802.11a/n
Private TDMA ProtocolTD-MAX
Maximum wireless speed300Mbps
Interface1*10/100Mbps Ethernet Port
Antenna2*RP-SMA
Reset Button1
GND1
Power Consumption8.5W
Waterproof LevelIP65
LED indicatorPoE/LAN,LED1,LED2,LED3
Power Method24V0.5A Passive PoE
Lightning Protection6000V
Passive PoE power supplyPassive power over ethenet via PoE/LAN ( 4,5pins
-7,8pins)
Voltage range: 21-25V DC
Reception SensitivityMCS0: -96dbm
MCS7: -72dbm
Operating ModeAP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless RadioSupport
SSID HiddenSupport
SSID IsolationSupport
Channel10/20/30/40MHz
Client Limitation For SSIDSupport
Wireless Access ControlSupport
Weak Signal Client LimitationSupport
Transmit PowerAdjustable power by 1dBm
WMM CapableSupport
APSD CapableSupport
Wireless Security64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent BridgeSupport
VLAN Tagging for SSIDSupport
DHCP ServerSupport
VPN Pass-throughPPTP,L2TP
Schedule RebootSupport
Page TimeoutSupport
Ping WatchdogSupport
Dynamic DNSnoip, dyndns.org
Network DiagnosesPing, Traceroute, Signal Scan
Time&Date SettingSupport
Firmware UpgradeSupport
Backup/Restore ConfigurationSupport
Username ManagermentSupport
SyslogSupport
Managed By ControllerPC Software -- CPE Assistant
Package Content1*5GHz 11N 300Mbps Basestation
1*PoE Power Adapter
1*Quick Installation Guide
TemperatureOperating
