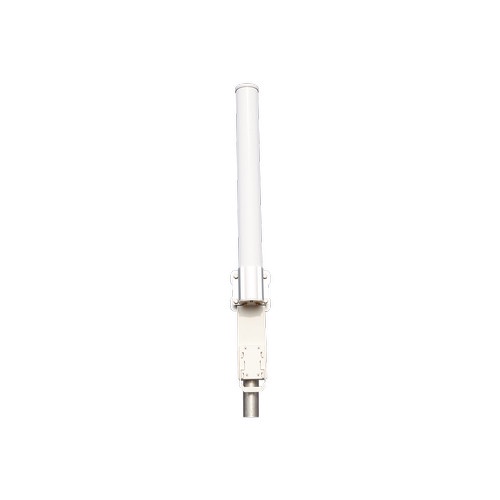

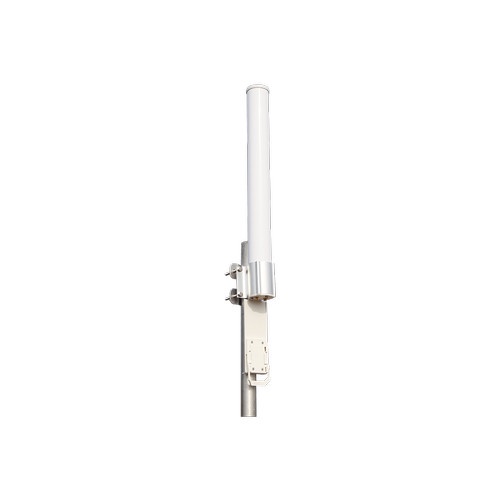

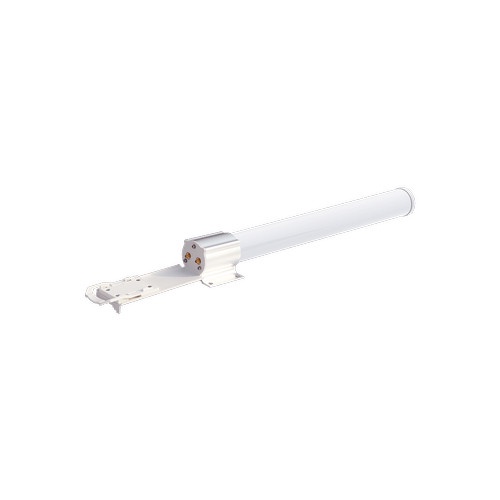

Tenda ANT12-5G360 5GHz 12dBi Dual Polarity Antena Omni

Komputer & Aksesoris > Komponen Network > Kabel Network & Konektor > Tenda ANT12-5G360 5GHz 12dBi Dual Polarity Antena Omni

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:Magic Wireless Mall OfficialLihat semua produk Komputer & Aksesoris oleh Magic Wireless Mall Official

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

Detail Tenda ANT12-5G360 5GHz 12dBi Dual Polarity Antena Omni

Electrical
Antenna Type
Omni-Dircectional Antenna
Frequency Range
5100-5850 MHz
Gain
11-12dBi
Polarization
Vertical
Horizontal Beamwidth (6dB)
360°
Vertical Beamwidth (6dB)
360°
Elevation Beamwidth
6°
Electrical Downtilt
0°
Front-To-Back Ratio
-
Isolation
>25dB
VSWR
≤ 2.0
Maximum Power Per Port
20W
Impedance
50Ω
Mechanical
Antenna Dimensions( LxWxD)
Φ70 x 870mm
Mounting
Pole (D30-70mm)
Mechanical tilt capability
-
Connector Type
2*RP-SMA
Operational Temperature
-55°C to 70°C
Operational Humidity
10%~90% non-condensing
Survival Wind
≤200km/hr
Application Scenarios
Application Scenarios
Pair with B6 to deliver PtMP wireless connection within 1km for Privated ISP access or CCTV Surveillance
