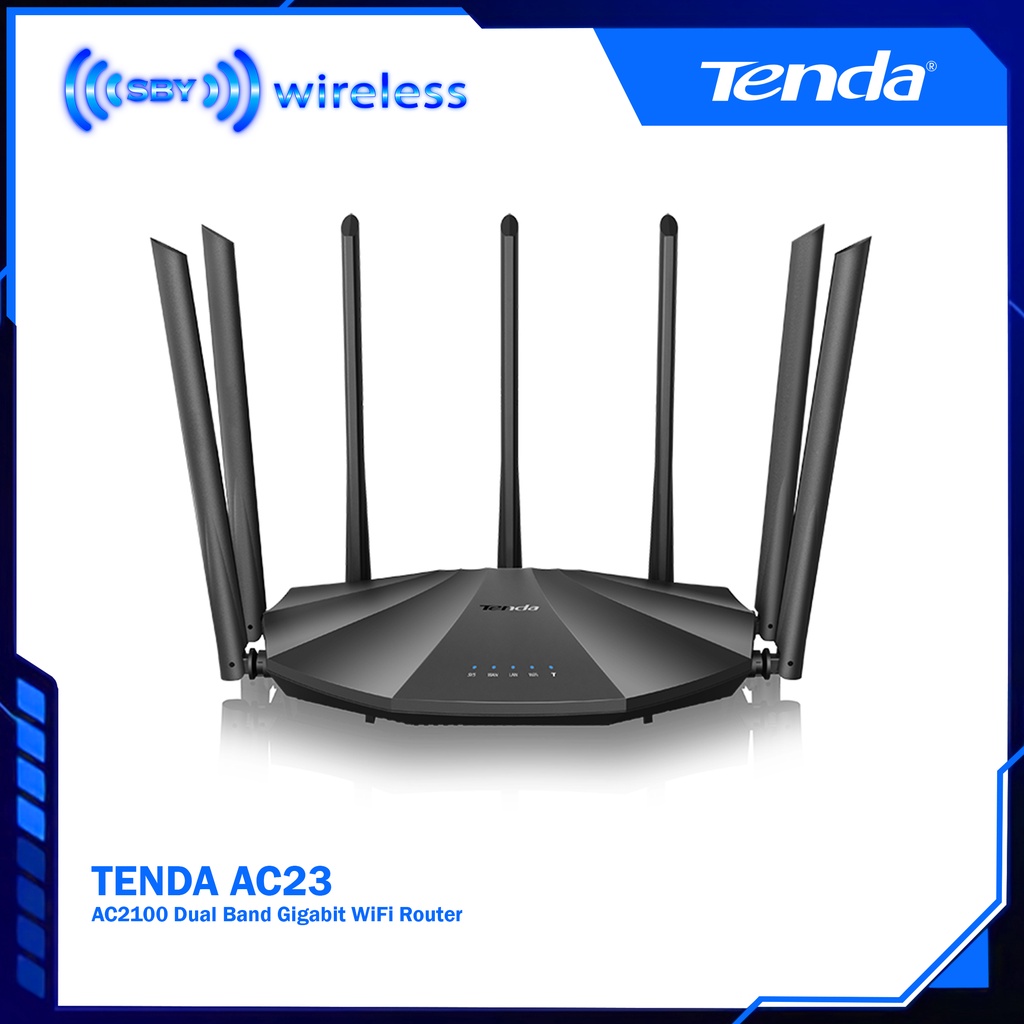

Tenda AC23 AC2100 Dual Band Gigabit WiFi Router

Detail Tenda AC23 AC2100 Dual Band Gigabit WiFi Router

Tenda AC23 AC2100 Dual Band Gigabit WiFi Router

Tenda AC23 is a dual band gigabit wireless router specially designed for households with high speed internet access. It supports 802.11ac wave2 techonology and provides WiFi speed up to 2033Mbps (2.4 GHz: 300Mbps, 5GHz: 1733Mbps) to achieve the best performance for your fiber internet connection. Powered by 4X4 MU-MIMO technology of 5GHz band, it provides wider WiFi coverage and faster WiFi speed than regular routers with 3X3 MU-MIMO technology. Equipped with full gigabit ports, it supports up to 1000Mbps bandwith access. The 28nm 1GHz CPU equipped with 500MHz co-processor, dual-core design brings a faster processing speed and provides optimized operation. Featured with 7*6dBi external antennas , AC23 outshines in performance and wall penetration capacity.

Spesifikasi :

EIRP Power (Max.)2.400-2.4835GHz:19.86dBm (EIRP)
5.150-5.250GHz:22.96dBm (EIRP)
Standar & ProtokolIEEE802.3, IEEE802.3u,IEEE802.3ab

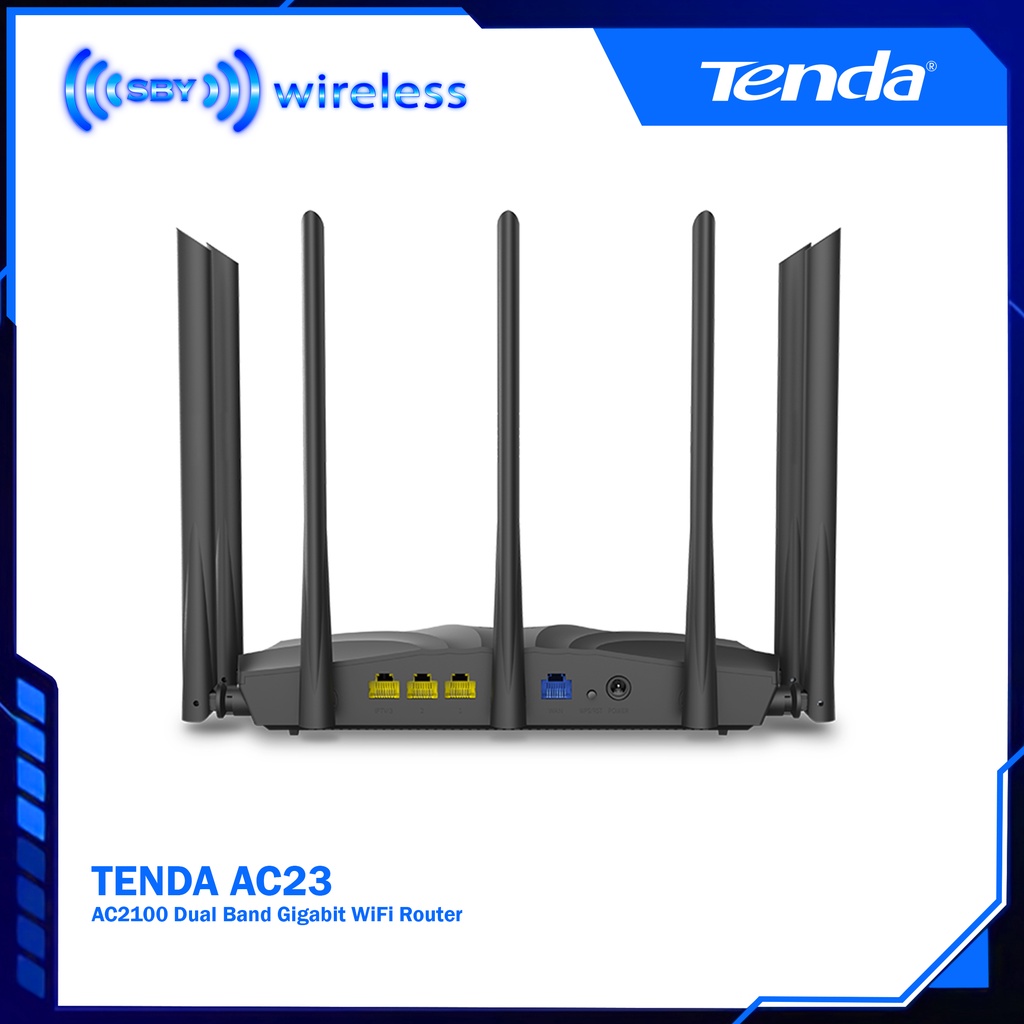

Antarmuka1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports
Antena7*6dBi external antennas
Tombol1* WPS/Reset button
Daya ListrikInput：AC 100-240V~50/60Hz 0.6A
Output：DC 12V1.5A
Ukuran238.9*144.3*40.3mm
LEDSys*1,WAN*1, LAN*1,WiFi/WPS*1
Standar NirkabelIEEE 802.11ac wave2/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Laju5GHz: Up to 1733Mbps
2.4GHz: Up to 300Mbps
FrekuensiSimultaneous dual band 2.4 & 5GHz
Daya TransmitCE:
<20dBm(2.4G)
<23dBm(5G)
FCC:
<30dBm
Fitur dasarSSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO
Keamanan NirkabelWPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
Jenis Koneksi InternetPPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Mode OperasiWireless Router Mode
Universal Repeater Mode
WISP Mode
Server DHCPDHCP Server
DHCP Client List
DHCP Reservation
Server VirtualPort Forwarding
DMZ Host
UPnP
KeamananClient Filter
Parental Control(support black list and white list)
Remote Web Management
FirewallForbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
DDNSSupport DynDNS, Oray.com, 88ip
VPNIPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client
Special FeaturesSmart Traffic Prioritisation
PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App
Lain-lainBandwidth Control
IPTV
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6
SuhuOperating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.
KelembapanOperating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
Pengaturan DefaultDefault Access: tendawifi.com
SertifikasiCE/FCC/RoHS

Isi PaketWireles Router*1
Power Adapter *1
Install Guide*1
Ethernet Cable*1
#TENDA#AC23
