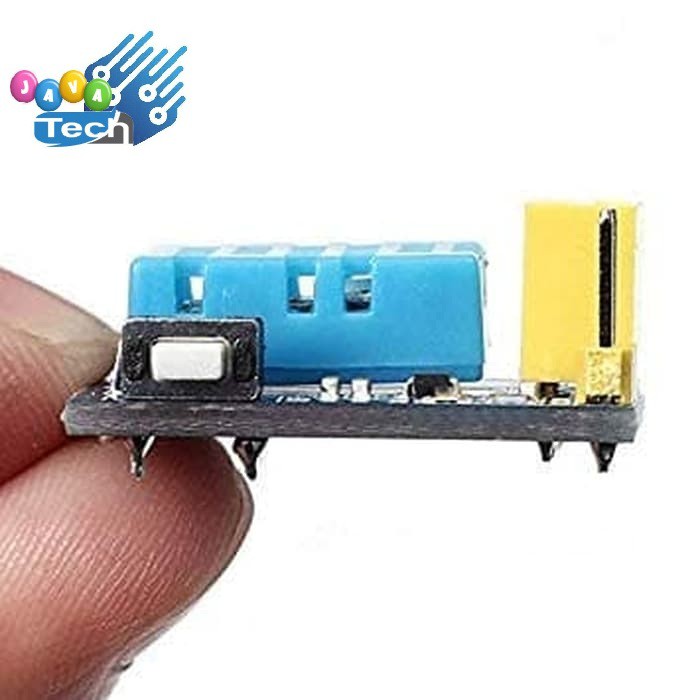

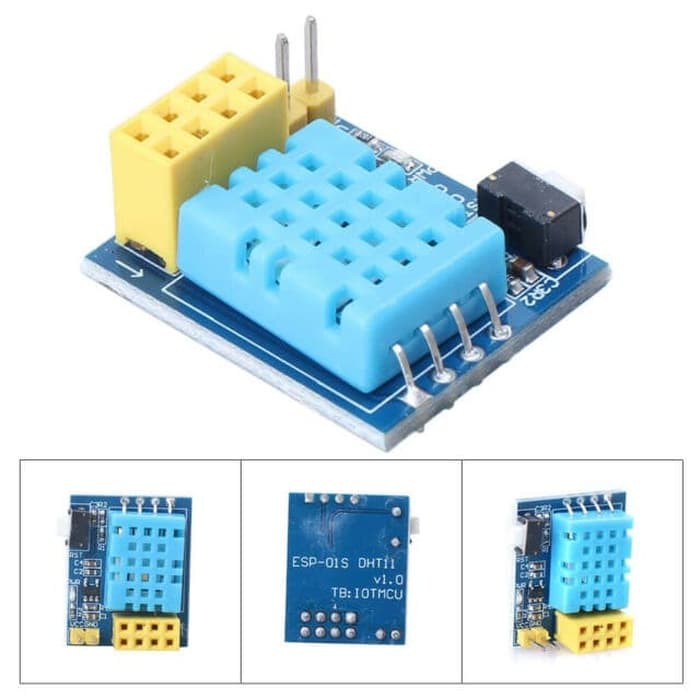

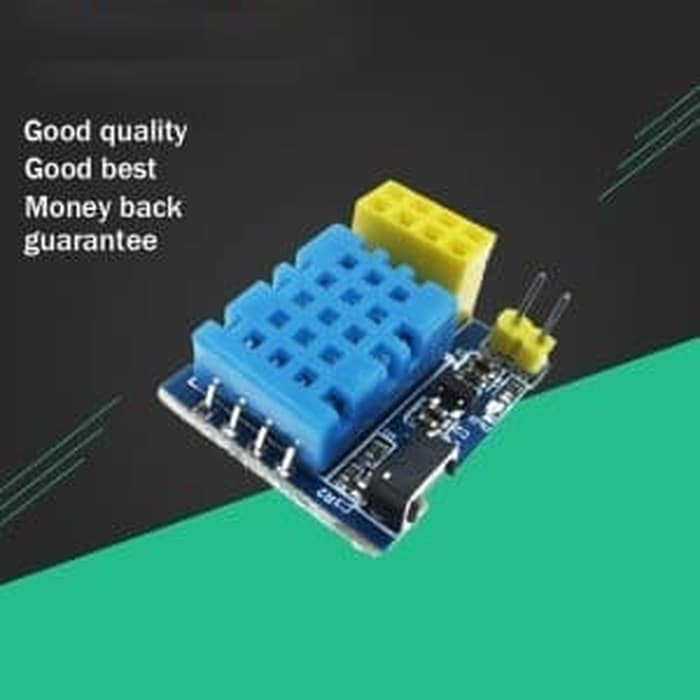

Temperature & Humidity DHT11 Shield for ESP8266 ESP-01 & ESP-01S
Deskripsi singkat
Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > Temperature & Humidity DHT11 Shield for ESP8266 ESP-01 & ESP-01S
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Temperature & Humidity DHT11 Shield for ESP8266 ESP-01 & ESP-01S
Temperature & Humidity DHT11 Shield for ESP8266 ESP-01 & ESP-01SFeature:
This module is mainly controlled by ESP8266-01/ESP-01S, and DHT11 is a temperature and humidity sensor. The temperature and humidity in the ESP8266 acquisition environment are uploaded to the server. Support 3.7v-12V DC power supply (3.7V lithium battery). Can be used as a temperature and humidity collection node for smart home or IOT projects.
Characteristic:
Master: ESP-01/ESP-01S (This module does not include ESP-01/ESP-01S)
Temperature and humidity sensor: DHT11
Working voltage: DC 3.7V-12V (supports 3.7v lithium battery power supply)
Measuring range: 20-90% RH 0-50 °C
Measurement accuracy: Temperature: ± 2 ° C Humidity ± 5% RH
Application example:
1. Power supply: 3.7V-12V DC power supply is connected to VCC GND (2.54mm pin header)
2. Download the program to ESP-01S (package does not includes this wireless module)
3. Plug the ESP-01/ESP-01S (package does not includes this wireless module) into the 2*4 Pin female (in the direction of the arrow)
