Temperature Controller/Thermo Control Digital E508-G 48x48mm AC/DC 85~265V EWIG.

Merek: Ewig | Lihat selengkapnya produk Elektronik dari Ewig
Elektronik > Kelistrikan > Kelistrikan Lainnya > Temperature Controller/Thermo Control Digital E508-G 48x48mm AC/DC 85~265V EWIG.
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Temperature Controller/Thermo Control Digital E508-G 48x48mm AC/DC 85~265V EWIG.


Video perkenalan produk Temperature Controller/Thermo Control Digital E508-G 48x48mm AC/DC 85~265V EWIG.. Sumber: Shopee.

"TIDAK BISA SSR"
Merk EWIG.

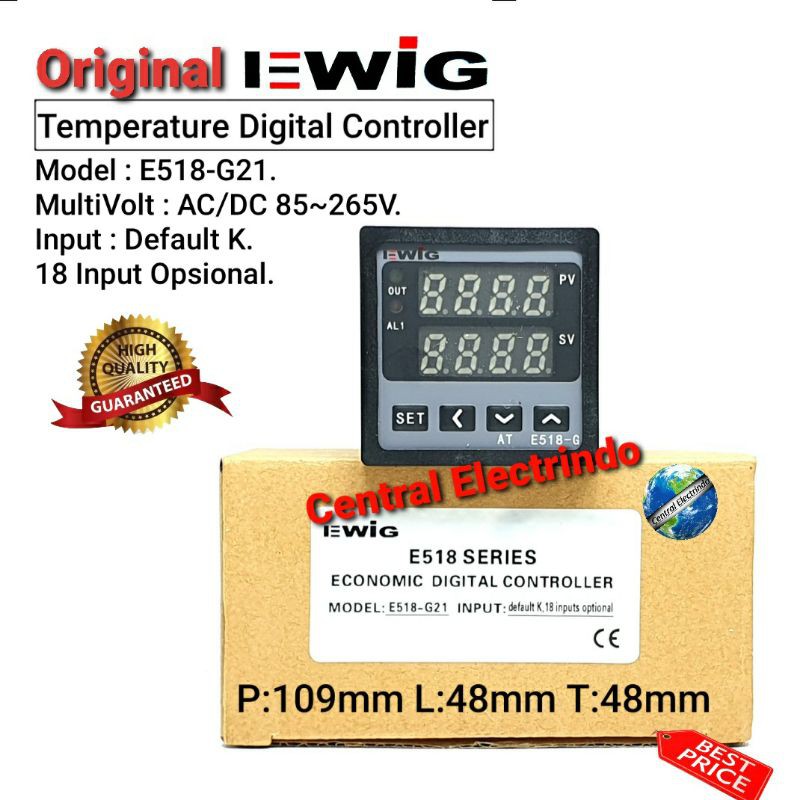

Temperature Digital Controller.
Type: E508-G21 Digital.
* Size: P:109mm L:48mm T:48mm
* Multivolt : AC/DC 85~265V.
* Class : 0.2.
* Relay Output.
* Pemakaian bisa di atas 1000°C.
Tergantung pemakaian type thermo couple.

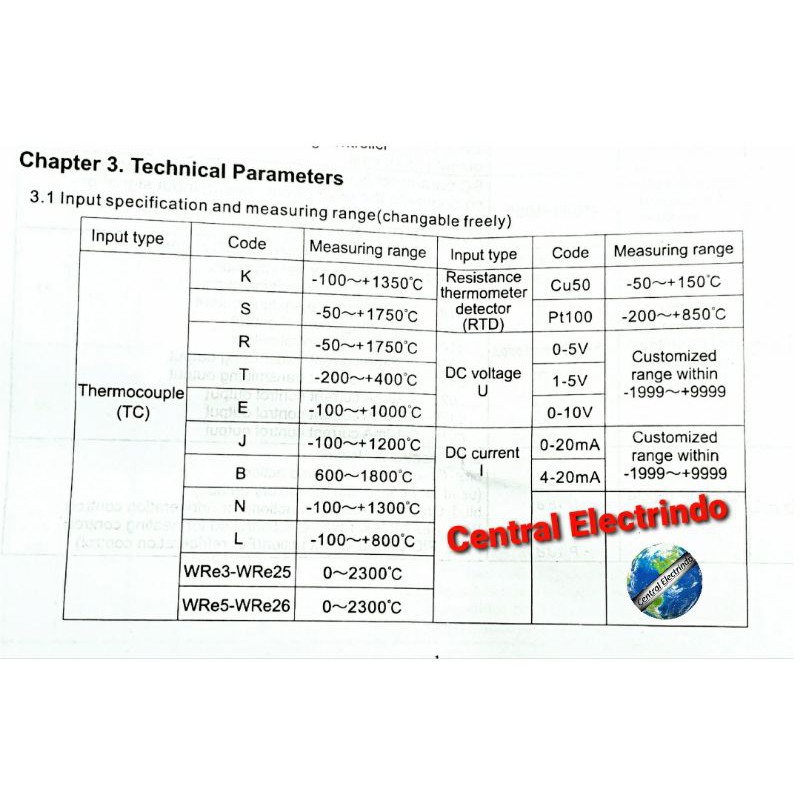

Spesifikasi bisa dilihat di gambar iklan no 5.
* Untuk pemakaian arus VDC harus menggunakan power supply. Bisa di lihat di buku panduan.
Signal Input :
* TC : Thermo Couple Input.
* RTD : Thermal Resistance Input.
* I : Direct Current Input.
Control Output : Out.
* Relay : Normally Open Contact Output of Relay.
* SCR : Unindirectional SCR Zero Crossing Trigger Signal Output.
V : Direct Voltage Output.
Alarm Output : Alarm.
* Relay : Relay Contact Switch Output ( COM.N/O.N/C Are Respectively Common Port. N/O Port and N/O port.

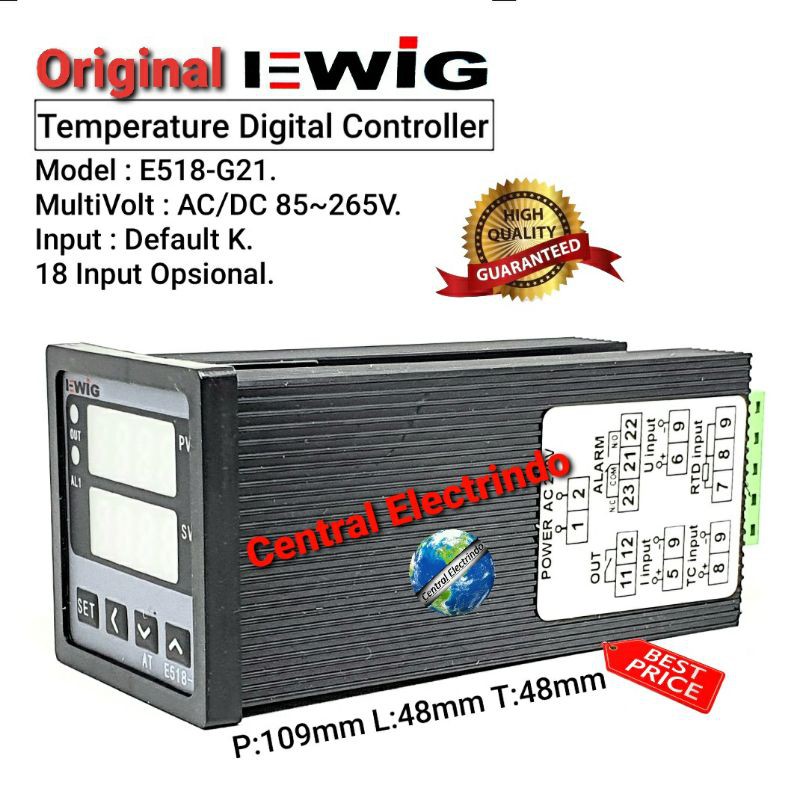

Diagram bisa di lihat di gambar iklan no 3/4/5.

QUALITAS DIJAMIN.
DI CENTRAL ELECTRINDO.
