Detail Temperature Controller/Thermo Control Digital E508-A 96x96mm EWIG.


Video perkenalan produk Temperature Controller/Thermo Control Digital E508-A 96x96mm EWIG.. Sumber: Shopee.

"TIDAK BISA SSR"
Merk EWIG.
Temperature Digital Controller.
Type: E508-A21 Digital.
* Size: P:92mm L:96mm T:96mm
* Voltase: AC 110VAC/220VAC.
* Class : 0.2.
* Relay Output.
* Pemakaian bisa di atas 1000°C.
Tergantung pemakaian type thermo couple.

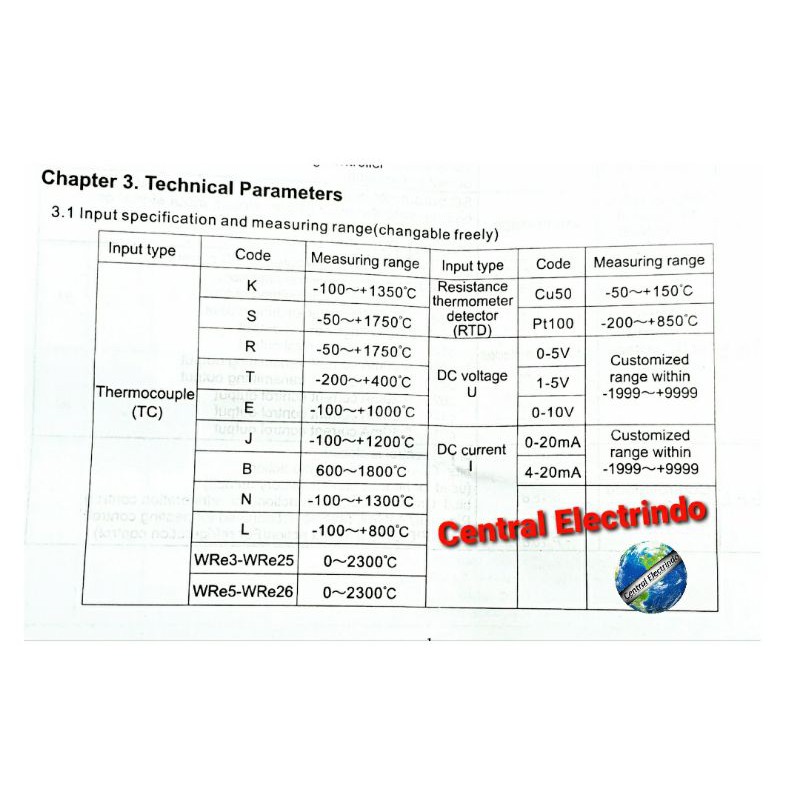

Spesifikasi bisa dilihat di gambar iklan no 4.
* Untuk pemakaian arus VDC harus menggunakan power supply. Bisa di lihat di buku panduan.
Signal Input :
* TC : Thermo Couple Input.
* RTD : Thermal Resistance Input.
* I : Direct Current Input.
Control Output : Out.
* Relay : Normally Open Contact Output of Relay.
* SCR : Unindirectional SCR Zero Crossing Trigger Signal Output.
V : Direct Voltage Output.
Alarm Output : Alarm.
* Relay : Relay Contact Switch Output ( COM.N/O.N/C Are Respectively Common Port. N/O Port and N/O port.
Diagram bisa di lihat di gambar iklan no 2/3/4.
QUALITAS DIJAMIN.
DI CENTRAL ELECTRINDO.
