TEG3224P - 24Port 10/100/1000Mbps with 4 Shared SFP PoE

Detail TEG3224P - 24Port 10/100/1000Mbps with 4 Shared SFP PoE

Standar & Protokol
IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1D,IEEE 802.3af,IEEE 802.3at

Sakelar Lapisan 2
All ports support linear forward
Packet forwarding speed: 35.7Mpps

MTBF
≥100 thousand hours

Penyimpanan & Pengalihan
Yes

Susunan Sakelar
56Gbit/s
Tabel Alamat MAC 8K MAC
Support set port MAC address learning maximum number

Port Terpasang tetap
24 10/100/1000Base-T ports (Data/PoE)
4 10/100/1000 Base-X SFP ports ( Combo)

Modul pilihan
SFP optical fiber module with single port

Modul Persediaan Daya Listrik
Supply 24 RJ-45 802.3af（15.4W）/12 RJ-45 802.3at（30W）
Power Pin Assignment: 1/2(+),3/6(-)

Tegangan masuk
AC：176V~264V
50/60Hz

Ukuran
440*284*44 (W x D x H mm)
Berat
Konsumsi
Power consumption：PoE Power Budget：370 Watts
Suhu Operasi0～45 Degree C

Kelembapan Operasi
10%～95%(Non-condensing)
Penyaluran kabel (trunking) Port Support LACP
Support manual polymerization
12 groups of port trunk support，up to 16 GE port per trunk group
Manajemen persediaan PoEPoE port setting and power priority supply setting
PoE over temperature protection
Smart graphical management and detection of PD equipment, (priority, port state, power allocation, PD equipment state), intelligent management power of PD equipment

Protokol Jaringan Lapisan 2 lingkar
Conform to STP/RSTP/MSTP
Support equipment to prevent the loop

VLAN
Support port-based VLAN（4K）、protocol-based VLAN Compliant with Voice VLAN、VLAN Mapping、VLAN VPN（QinQ），flexible QinQ

DHCP
DHCP Snooping、DHCP Relay/Client/Server
DHCP Snooping Option82/DHCP Relay Option82

Multicast
Support IGMP Snooping、multicast VLAN、IGMP V1/V2、PIM-SM/ PIM-DM/MSDP

Pencerminan
N:1 port mirror、flow mirror、RSPAN（Remote port mirror）

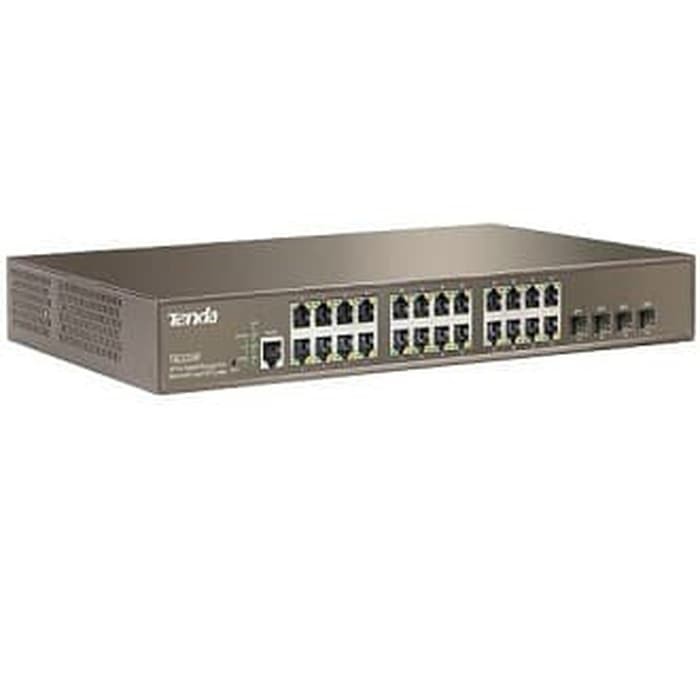

Gambar produk
