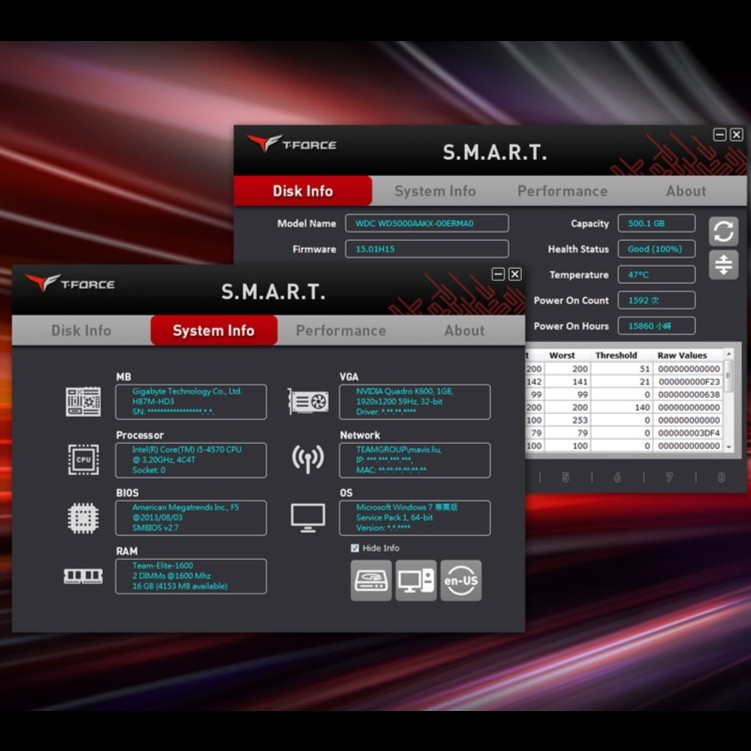

FEATURES Enjoy the read/write performance of PCIe Gen4x4 Patented ultra-thin graphene heat spreader Not only faster but also more stable and durable Supports the latest NVMe 1.4 standard SSD smart monitoring software Five-year warranty offers you peace of mind United States Patent (number:US11051392B2) Taiwan Invention Patent (number: I703921) China Utility Patent (number: CN 211019739 U)
Product Specifications Model CARDEA Z44L Interface PCIe Gen4x4 with NVMe 1.4 Capacity 500GB / 1TB Voltage DC +3.3V Operation Temperature 0˚C ~ 70˚C Storage Temperature -40˚C ~ 85˚C Terabyte Written (TBW) 500GB - 300TBW 1TB - 600TBW

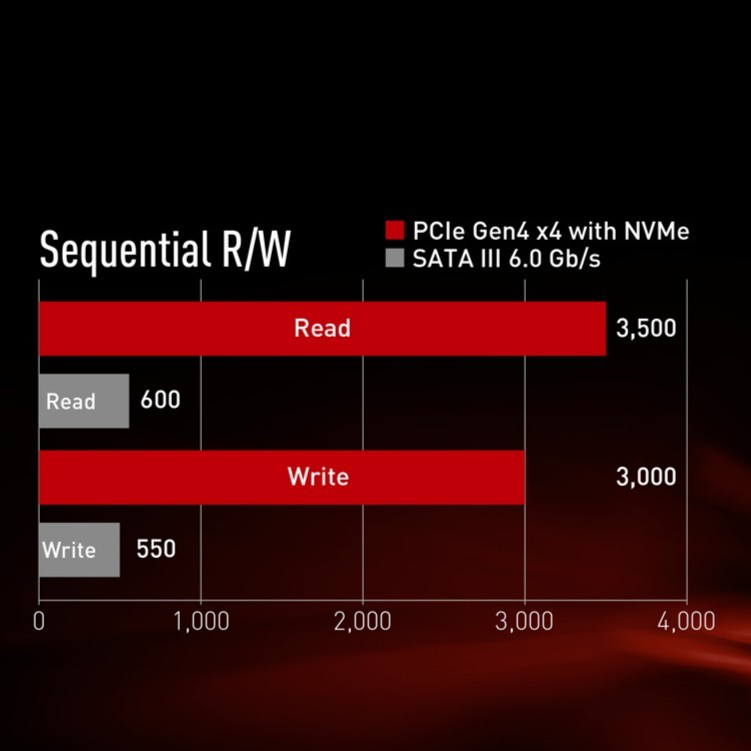

Performance Crystal Disk Mark: 500GB Read/Write: up to 3300/2400 MB/s 1TB Read/Write: up to 3500/3000 MB/s IOPS: 500GB Read/Write: 142K/357K IOPS Max 1TB Read/Write: 263K/382K IOPS Max
Weight 7g (PCBA) Dimensions 80.0(L) x 22.0(W) x 3.7(H) mm Humidity RH 90% under 40°C (operational) Vibration 80Hz~2,000Hz/20G Shock 1,500G/0.5ms MTBF 3,000,000 hours Operating System System Requirements: Windows 10 / 8.1 / 8 / 7 / Vista Linux 2.6.33 or later Warranty 5-year limited warranty
