Teamgroup SSD M.2 T-FORCE Cardea Z44L 250GB PCIe Gen4x4 with NVMe

Detail Teamgroup SSD M.2 T-FORCE Cardea Z44L 250GB PCIe Gen4x4 with NVMe

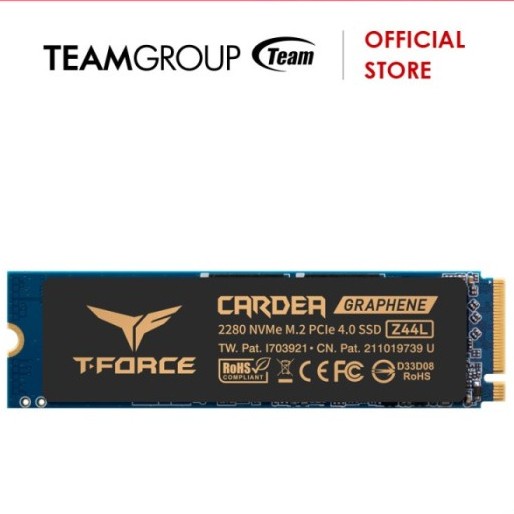

CARDEA Z44L M.2 PCIe SSD
1TB, 500GB, 250GB

FEATURES
Enjoy the read/write performance of PCIe Gen4x4
Patented ultra-thin graphene heat spreader
Not only faster but also more stable and durable
Supports the latest NVMe 1.4 standard
SSD smart monitoring software
Five-year warranty offers you peace of mind
United States Patent (number：US11051392B2)
Taiwan Invention Patent (number: I703921)
China Utility Patent (number: CN 211019739 U)



Model CARDEA Z44L
Interface PCIe Gen4x4 with NVMe 1.4
Capacity 250GB / 500GB / 1TB[2]
Voltage DC +3.3V
Operation Temperature 0˚C ~ 70˚C
Storage Temperature -40˚C ~ 85˚C
DRAM Cache NO
Terabyte Written (TBW) 250GB – 150TBW
500GB - 300TBW
1TB - 600TBW[3]
Performance Crystal Disk Mark:
250GB Read/Write: up to 3300/1400 MB/s
500GB Read/Write: up to 3300/2400 MB/s
1TB Read/Write: up to 3500/3000 MB/s[1] IOPS:
250GB Read/Write: 132K/985K IOPS Max
500GB Read/Write: 142K/357K IOPS Max
1TB Read/Write: 263K/382K IOPS Max[1]
Weight 7g (PCBA)
Dimensions 80.0(L) x 22.0(W) x 3.7(H) mm
Humidity RH 90% under 40°C (operational)
Vibration 80Hz~2,000Hz/20G
Shock 1,500G/0.5ms
MTBF 3,000,000 hours
Operating System System Requirements:
Windows 10 / 8.1 / 8 / 7 / Vista[4]
Linux 2.6.33 or later
Warranty 5-year limited warranty[5]
