Detail TEA5767 FM RADIO MODULE

Hi #RekanEasyWare ...
EasyWare Part#: EP000436

FITUR DAN SPESIFIKASI :
* High sensitivity due to integrated low-noise RF input
* FM mixer for conversion to IF of the US/Europe (87.5 MHz to 108 MHz) and Japanese (76 MHz to 91 MHz) FM band
* Preset tuning to receive Japanese TV audio up to 108 MHz
* RF Automatic Gain Control (AGC) circuit
* LC tuner oscillator operating with low cost xed chip inductors
* FM IF selectivity performed internally
* No external discriminator needed due to fully integrated FM demodulator
* Crystal reference frequency oscillator; the oscillator operates with a 32.768 kHz clock crystal or with a 13 MHz crystal and with an externally applied 6.5 MHz reference frequency
* Phase-locked loop (PLL) synthesizer tuning system
* I2C-bus and 3-wire bus, selectable via pin BUSMODE
* 7-bit IF counter output via the bus
* 4-bit level information output via the bus
* Soft mute
* Signal dependent mono to stereo blend [Stereo Noise Cancelling (SNC)]
* Signal dependent High Cut Control (HCC)
* Soft mute, SNC and HCC can be switched off via the bus
* Adjustment-free stereo decoder
* Autonomous search tuning function
* Standby mode
* Two software programmable ports
* Bus enable line to switch the bus input and output lines into 3-state mode

KELENGKAPAN :
* 1pcs TEA5767 FM RADIO MODULE

Gambar produk

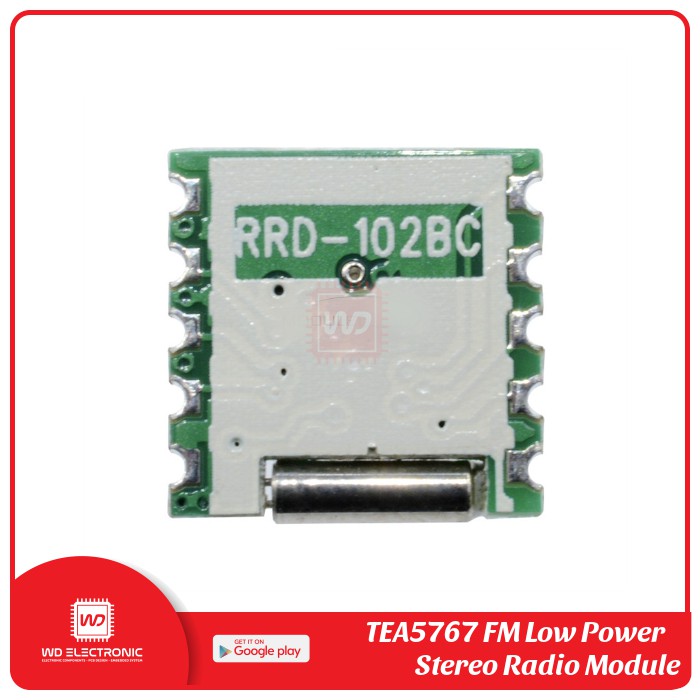

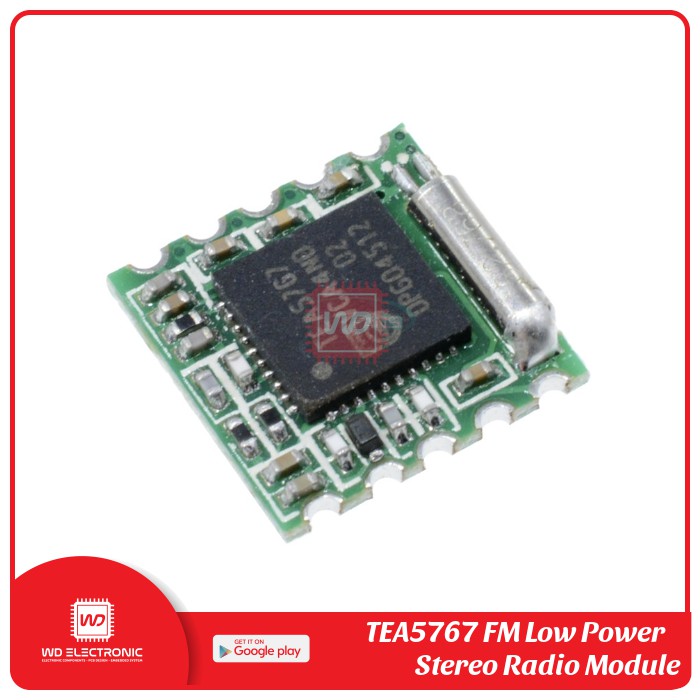

TEA5767 FM RADIO MODULE
