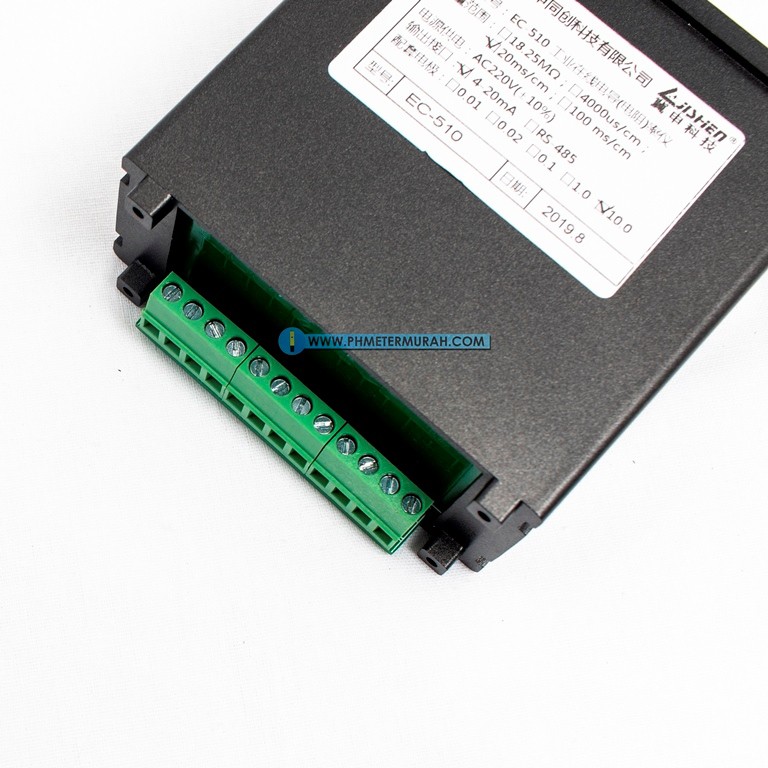

TDS CONTROLLER EC-510

Detail TDS CONTROLLER EC-510

Measuring Range:
- 0.05~18.25 MQ; with 0.01, 0.02cm-1,
(0.01cm-1 is a pipe plug-in electrode);
(0.02cm-1 is a quick-loading electrode
(1/4"NPT);
- 0.5~200 us/cm, with O.1cm-1
- 1-2000 us/cm , with 1.0cm-1,
(optional: 1~4000us),
- 20us 20ms/cm, with10.0cm-1,
(optional: 200us~100ms)

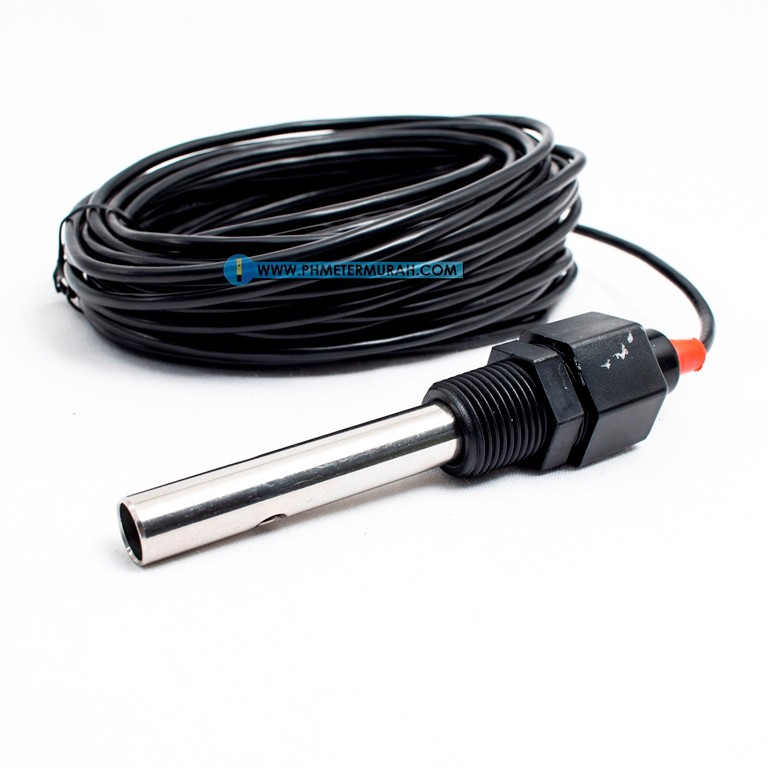

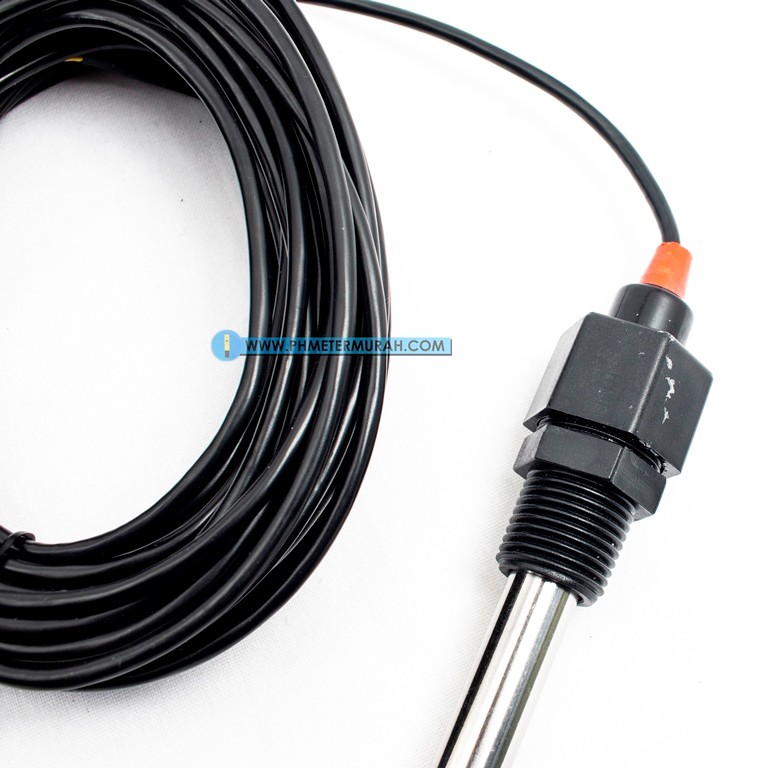

Electrode wire length:
- Plug-in electrode length: 5 m;
- Quick-fit electrode: 1.5 m; (can be customized);
- Accuracy: <1.5% (F S);

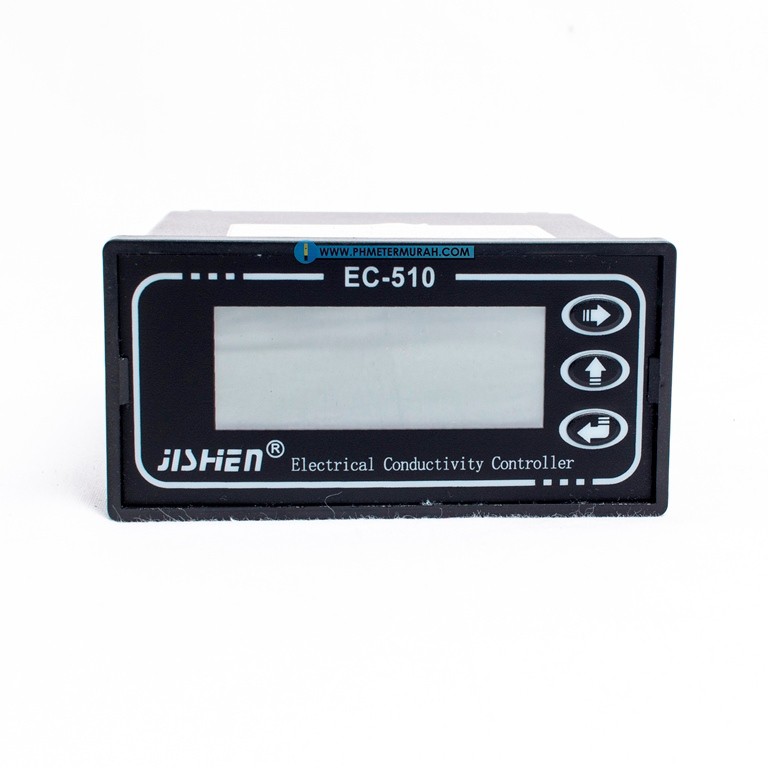

Display mode:
- The full-view LCD screen can display the
conductivity value, temperature value and
mA value on the same screen,
Medium temperature:
- Normal temperature electrode: 0 60 ° C;
- High temperature electrode: 0~120 ° C;
- Medium pressure: <0.5MPa,
- Temperature compensation: automatic
compensation based on 25 °C;
Alarm setting:
- Upper and lower limit relay alarm output, alarm
prompts HI or LO, and sounds an alarm;
- Contact capacity: Maximum 3A/250V AC (resistive load)
- Power supply: AC 220V + 10%
Environmental conditions:
- (1) Temperature 0~50°C
(2) Humidity 80%RH

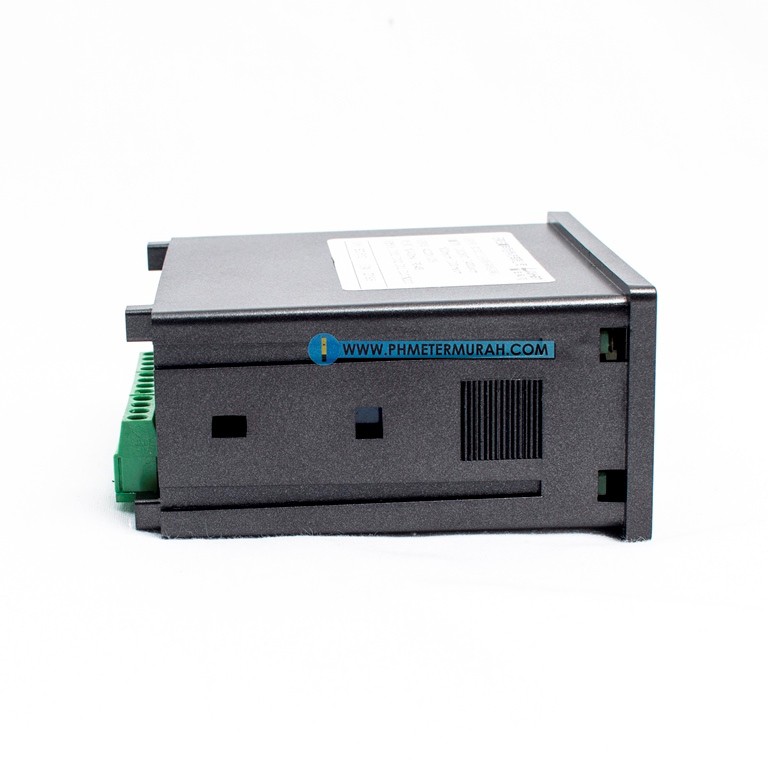

- Dimensions: 48 x 96 x 100mm (height x width x depth)
- Opening size: 45x92mm

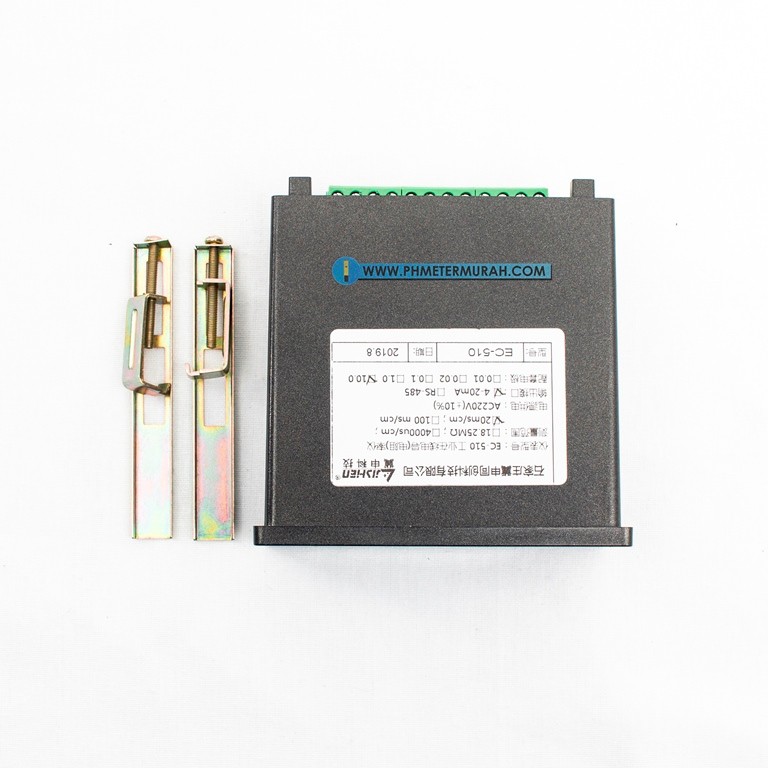

- Installation method: Panel mounted
