【TDA7498E】 daya tinggi digital power amplifier papan 2.0HIFI stereo daya tinggi 160W * 2 dukungan BTL220W

Detail 【TDA7498E】 daya tinggi digital power amplifier papan 2.0HIFI stereo daya tinggi 160W * 2 dukungan BTL220W

【 Description: 】
High output power digital amplifier
DC 15-36V power supply, with reverse polarity protection
When the temperature of the radiator rises to a certain level, the cooling fan will work
Support BTL mode, single channel 36V 3ohm, output 220W
Two track stereo, very good sound quality
The sound quality is very good and can drive 4/6/8 ohm speakers.
It has sufficient high power output of 2 x 160W.
It supports BTL mode, and when the radiator temperature rises to a certain level, the cooling fan will operate.

【 Function: 】
1, High output power digital amplifier
2, DC 15-36V power supply, with reverse polarity protection.
3, when the temperature of the radiator rises to a certain degree, the cooling fan will work.

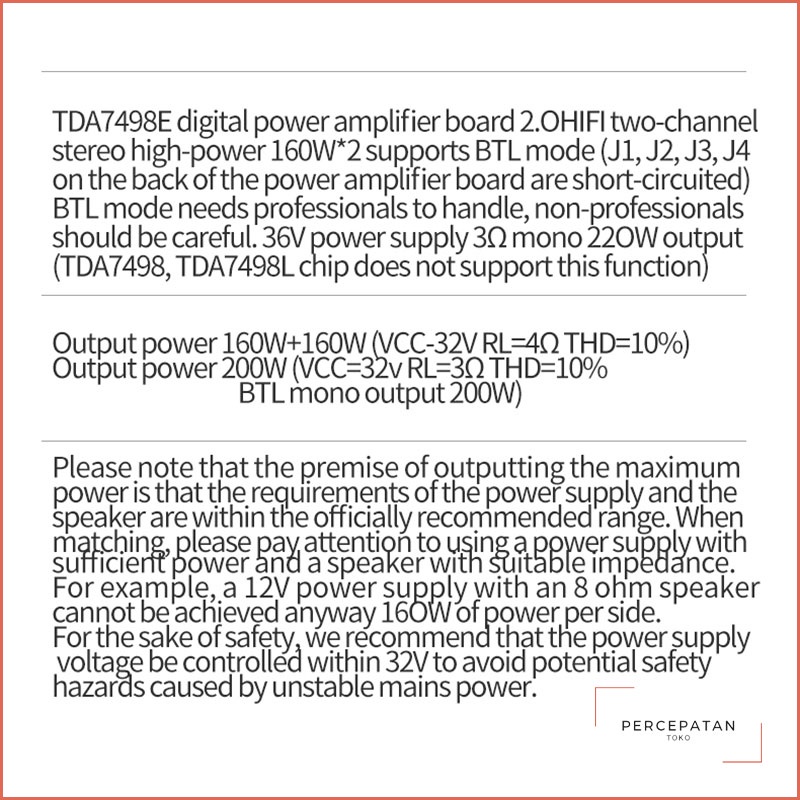

4, Support BTL mode (J1, J2, J3, J4 on the back of the power amplifier should be short circuit), single channel 36V 3ohm, output 220W.
Two-channel stereo with very good sound quality.

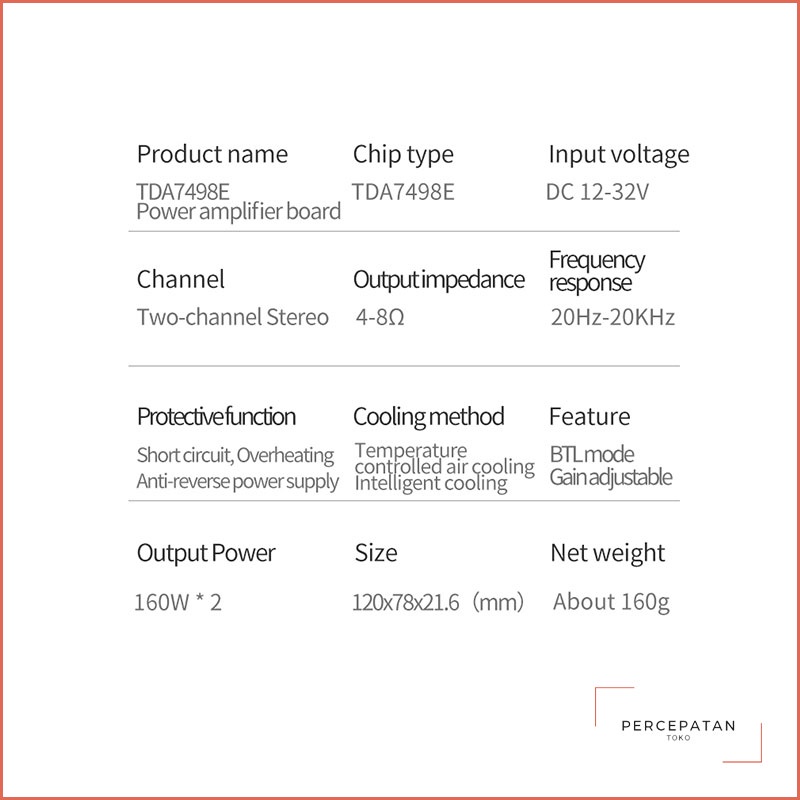

【 Specification: 】
Amplifier chip: TDA7498E
Working voltage: DC 15-36V (recommended 32V, 8A, if the power is too small will appear distortion, etc.)
Output power: 2 x 160W
Track count: two track stereo
Efficiency: 85%
Applicable speaker impedance: 4/6/8 ohm (best is 8ohm)
PCB size: 120mm x 78mm x 21.6mm
Weight: approx. 160g

[Included in package]
1 x TDA7498E digital amplifier board
