TDA7498E Daya Tinggi Digital Power Amplifier Papan 2.0HIFI Stereo Daya Tinggi 160W * 2 Dukungan BTL220W Kit Power Amplifier

Detail TDA7498E Daya Tinggi Digital Power Amplifier Papan 2.0HIFI Stereo Daya Tinggi 160W * 2 Dukungan BTL220W Kit Power Amplifier

Video perkenalan produk TDA7498E Daya Tinggi Digital Power Amplifier Papan 2.0HIFI Stereo Daya Tinggi 160W * 2 Dukungan BTL220W Kit Power Amplifier. Sumber: Shopee.

Description:
High output power digital amplifier
DC 15-36V power supply, with reverse polarity protection
When heat sink temperature rises to a certain extent, the cooling fan will work
Support BTL mode, 36V 3ohm for single channel with 220W output
Two-channel stereo, sound quality is very good
Sound quality is very good and it can drive 4/6/8 ohm speakers.
It has sufficient and high power output 2 x 160W.
It supports BTL mode and when heat sink temperature rises to a certain extent, the cooling fan will work.

Features:
1, High output power digital amplifier.
2, DC 15-36V power supply, with reverse polarity protection.
3, When heat sink temperature rises to a certain extent, the cooling fan will work.

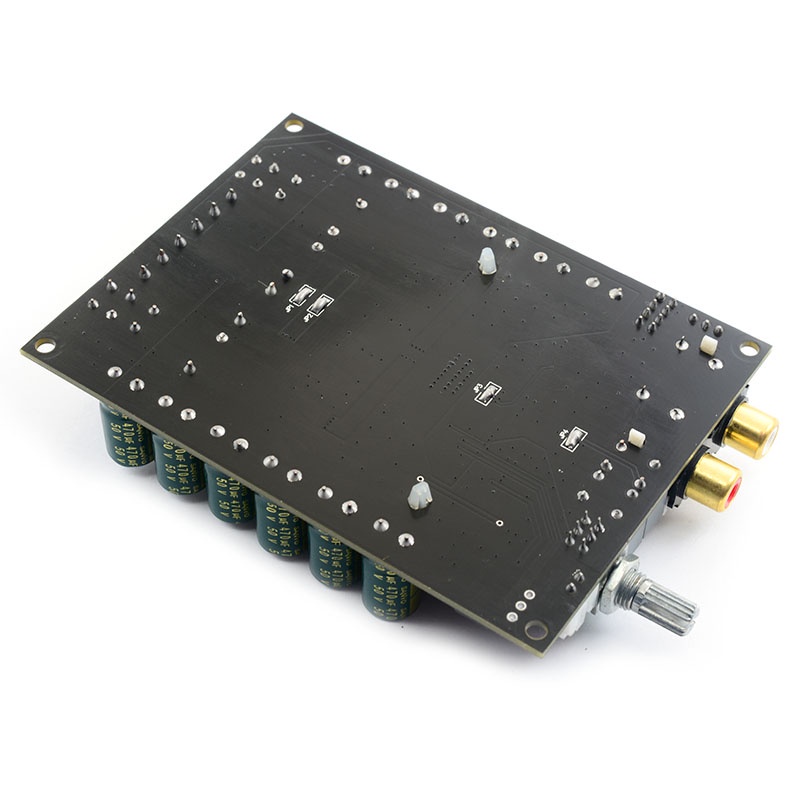

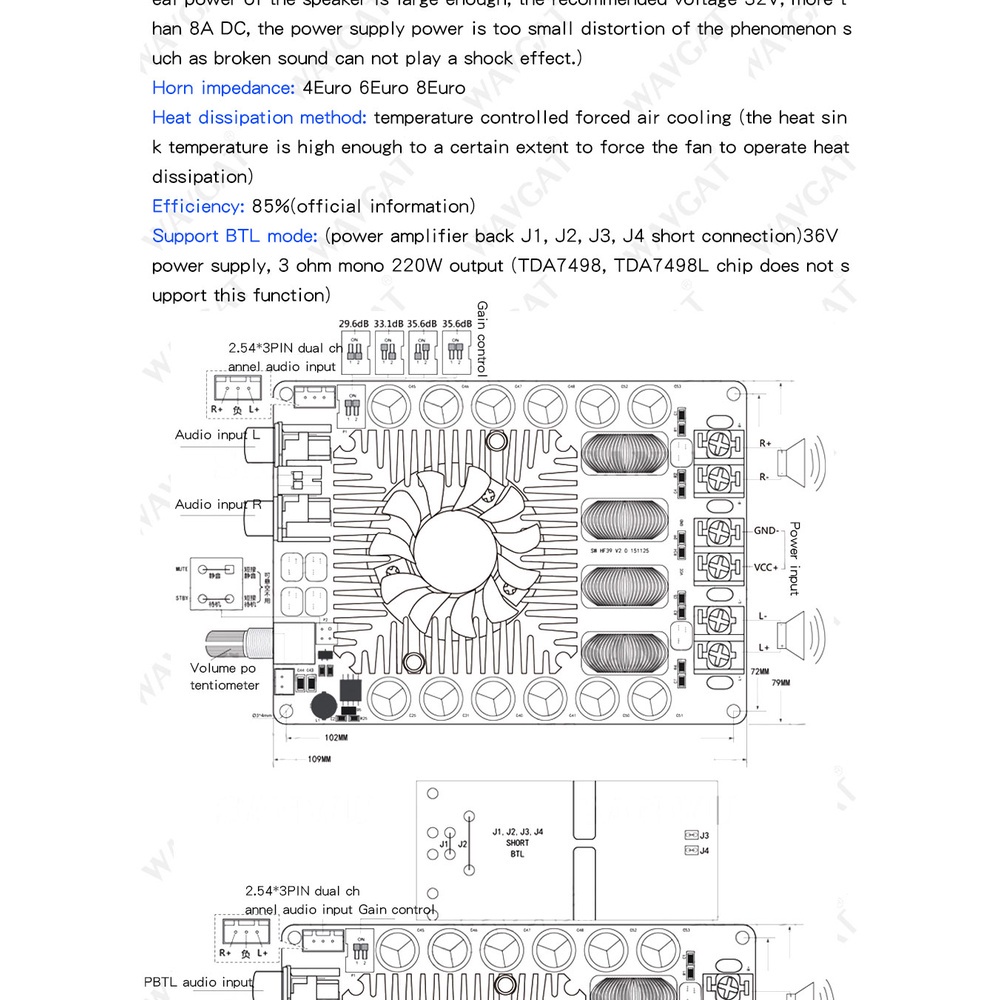

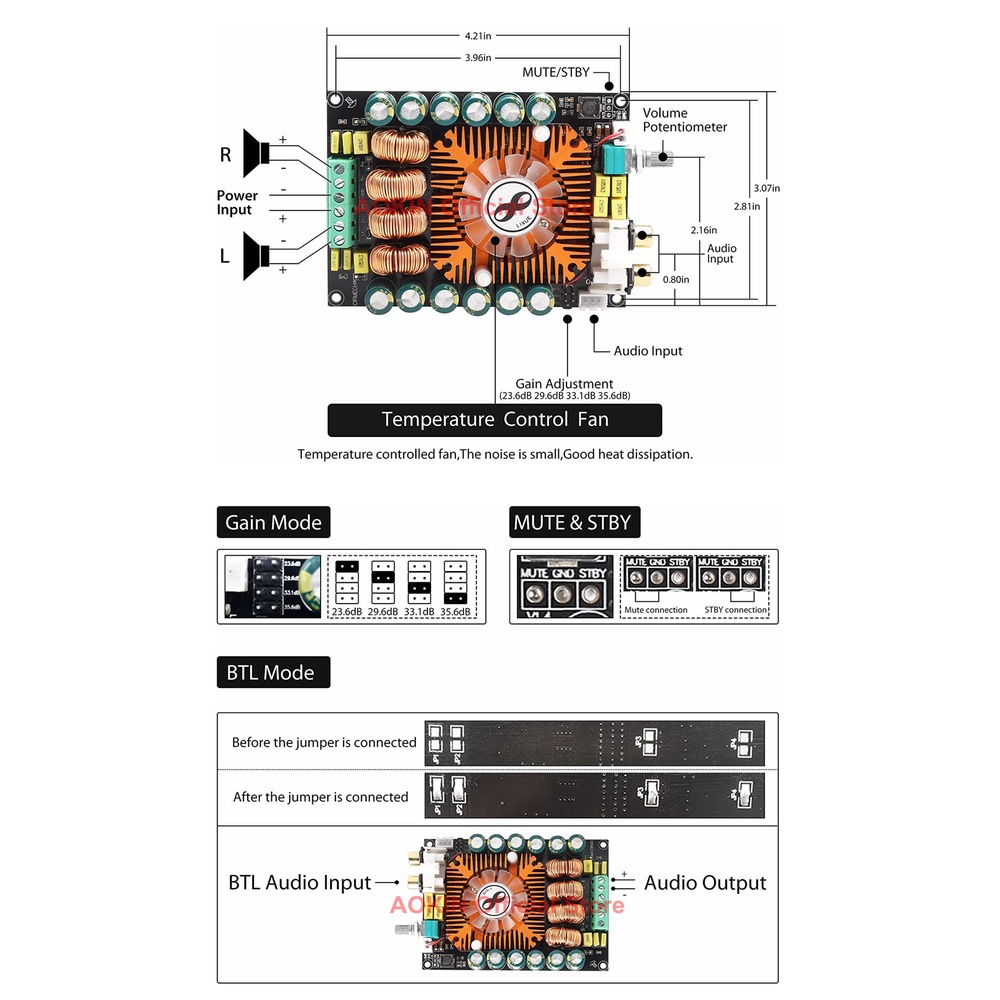

4, Support BTL mode ( J1, J2, J3, J4 on the back of amplifier board should be shorted), 36V 3ohm for single channel with 220W output.
5, Two-channel stereo, sound quality is very good.

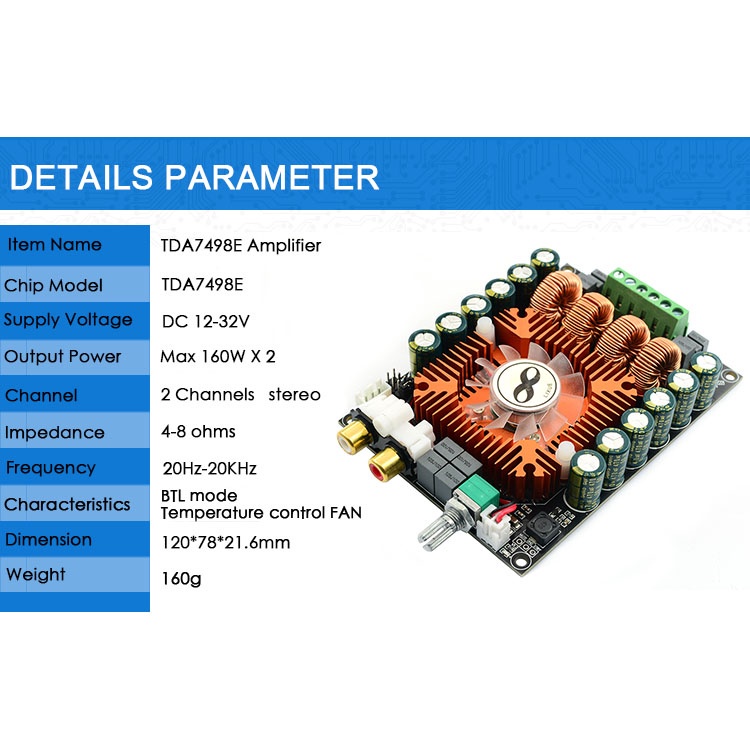

Specifications:
Amplifier chip: TDA7498E
Working voltage: DC 15-36V (Recommend 32V, 8A, if power is too small will appear distortion and so on.)
Output power: 2 x 160W
Number of channels: Two-channel Stereo
Efficiency: 85%
Applicable speaker impedance: 4/6/8ohm(8ohm is the best)

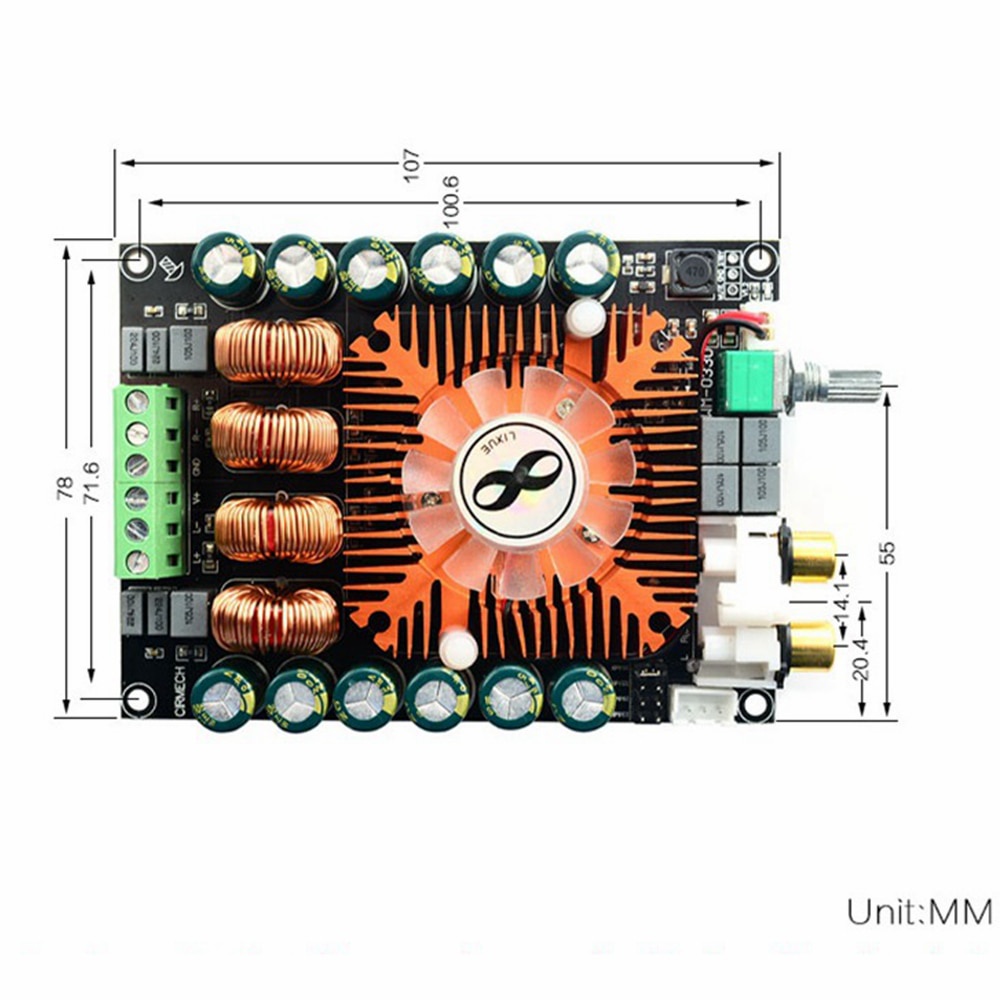

PCB board size: 120mm x 78mm x 21.6mm
Weight: 160g(approx.)

Package includes:
1 x TDA7498E Digital Amplifier Board
