TDA7498E 2 x 160W High Power Digital Stereo 2.0 Hifi Amplifier
Deskripsi singkat
Elektronik > Elektronik Lainnya > TDA7498E 2 x 160W High Power Digital Stereo 2.0 Hifi Amplifier
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail TDA7498E 2 x 160W High Power Digital Stereo 2.0 Hifi Amplifier
Chip type: tda7498eInput voltage: DC 12-36v
Output power: 160W × 2
Channel: two channel stereo
Output impedance: 4-8 Ω
Frequency response: 20Hz-20KHz
Protection function: short circuit overheated power supply anti reverse connection
Heat dissipation mode: temperature controlled air cooling intelligent heat dissipation
Features: BTL mode gain adjustable
Size: about 83 * 64 * 26mm
Net weight: About 160g

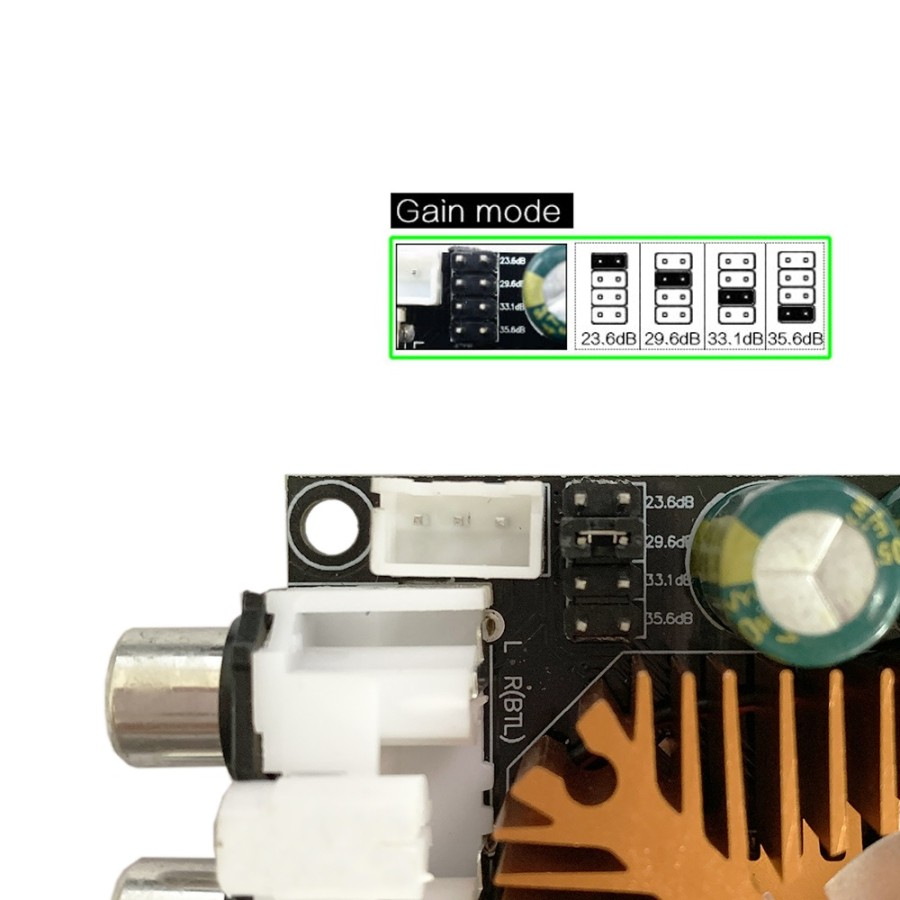

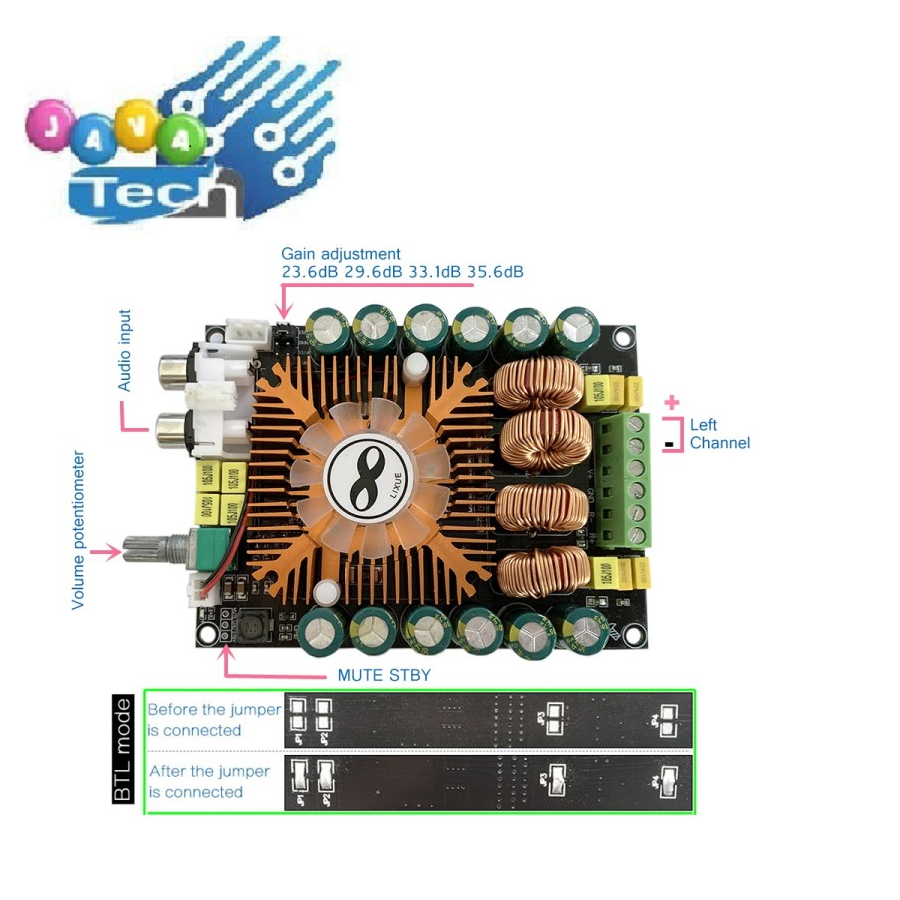

Gain setup :
- 23.6dB
- 29.6dB
- 33.1dB
- 35.6dB

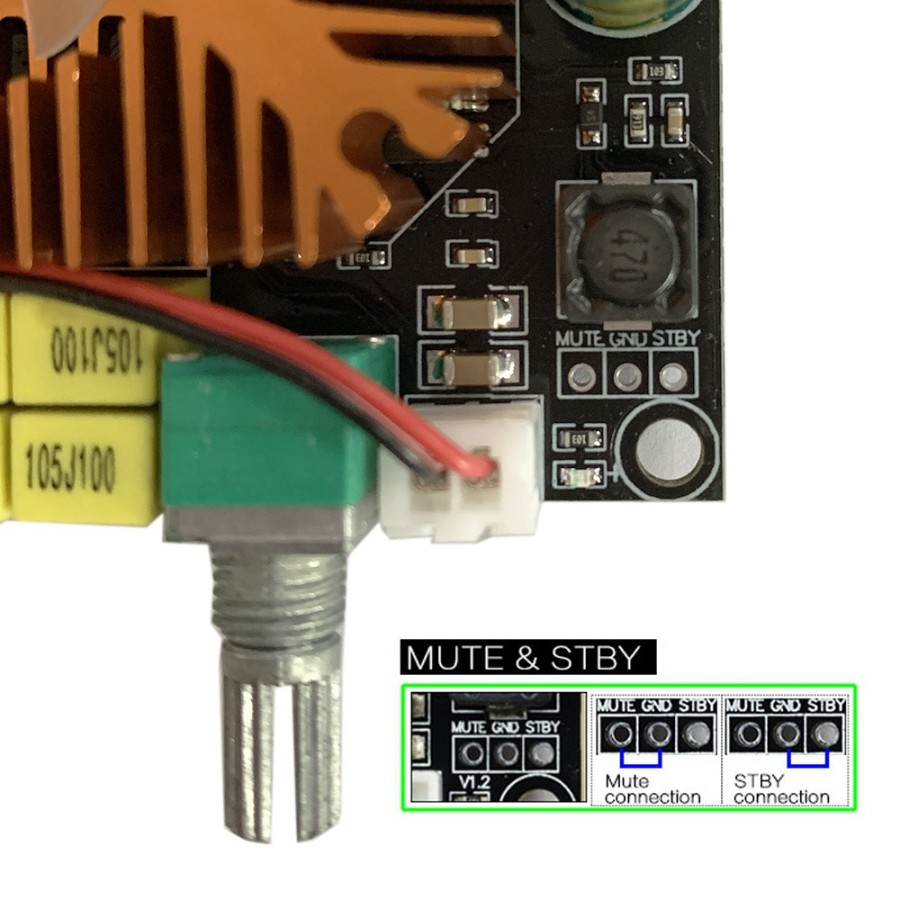

Stanby & Mute configuration via jumper
BTL mode via soldering pad
2x160W with 4Ohm load and DC36V supply
