Detail TDA7498 XH-M510 modul class D 2 x 100W Digital Power Amplifier Board

TDA7498 XH-M510 modul class D 2 x 100W Digital Power Amplifier Board

Features:

Output power:100w+100w (VCC+32V,RL=4ohm,THD=10%

Wide:14-30v signal power supply

Level 4 gain optional:(21.6dB,27.6dB,31.1dB,33.1dB)

Using differential input to reduce common-mode noise significantly

Has the pattern of the fault and silent mode

With intelligent protection function

Have overheating protection function




Specifications:

The input voltage: DC14-34 v

Output power:100W*2

Output resistance:4-8ohm

Line type:D types

Chip:TDA7498

Harmonic distortion:Po=1W/0.05%

Frequency response range:18-100KHZ

Switching frequency:360KHz

Signal to noise ratio:110db

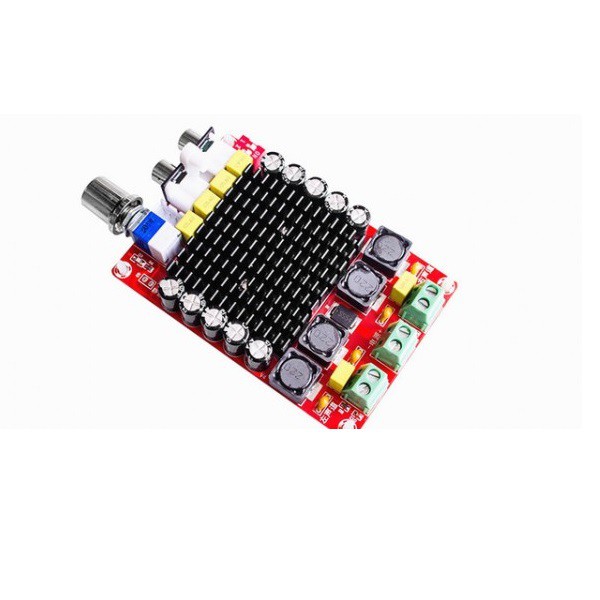

Gambar produk

TDA7498 XH-M510 modul class D 2 x 100W Digital Power Amplifier Board
TDA7498 XH-M510 modul class D 2 x 100W Digital Power Amplifier Board
