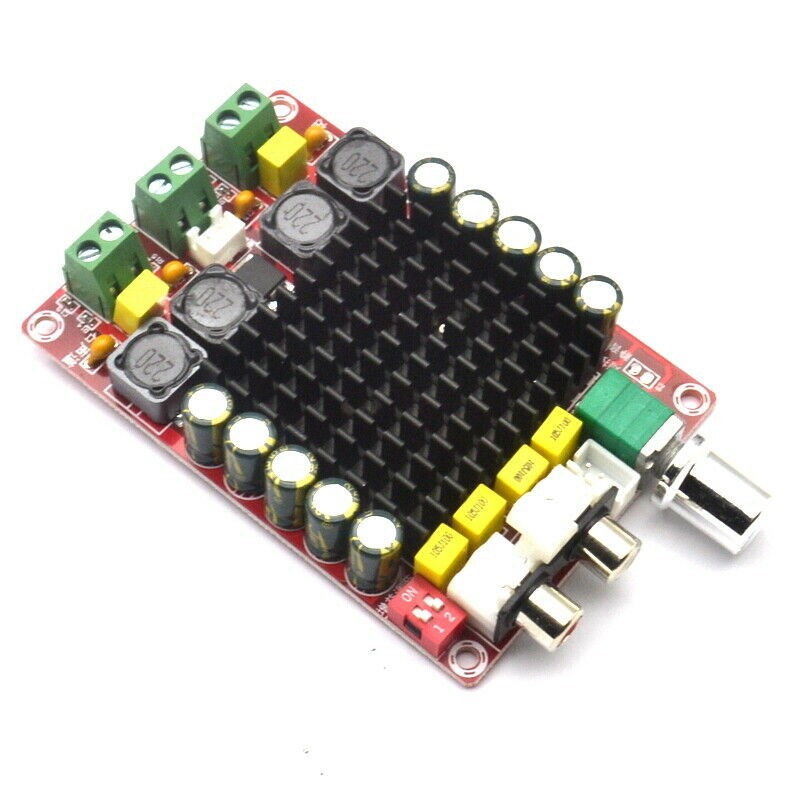

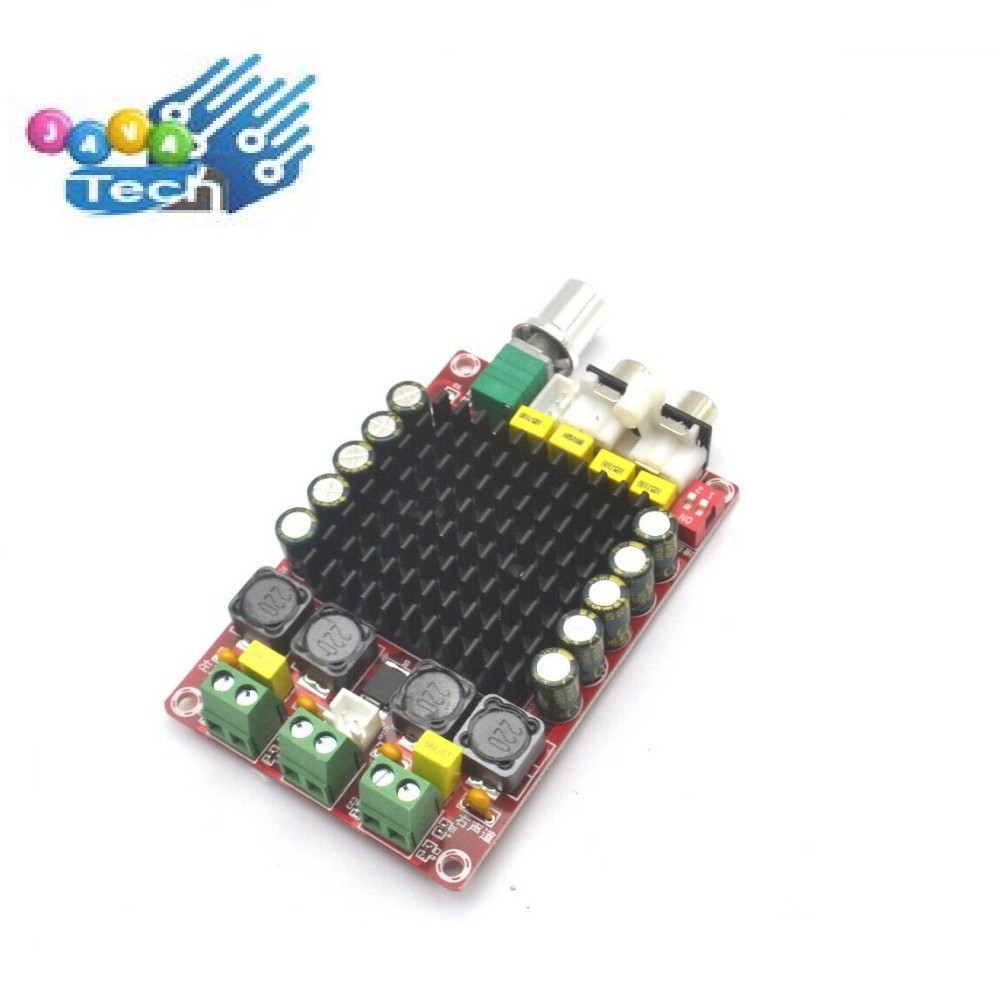

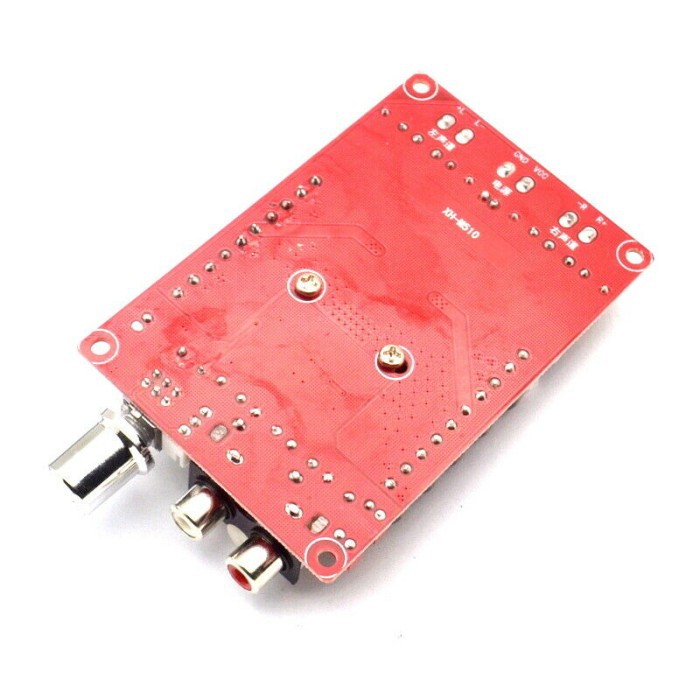

Detail TDA7498 XH-M510 High Power Stereo 2x100W Audio Amplifier Kit
Deskripsi TDA7498 XH-M510 High Power Stereo 2x100W Audio Amplifier KitFeatures:
Output power:100w+100w (VCC+32V,RL=4ohm,THD=10%
Wide:14-30v signal power supply
Level 4 gain optional:(21.6dB,27.6dB,31.1dB,33.1dB)
Using differential input to reduce common-mode noise significantly
Has the pattern of the fault and silent mode
With intelligent protection function
Have overheating protection function
Specifications:
The input voltage: DC14-32 v
Output power:100W*2
Output resistance:4-8ohm
Line type:D types
Chip:TDA7498
Harmonic distortion:Po=1W/0.05%
Frequency response range:18-100KHZ
Switching frequency:360KHz
Signal to noise ratio:110db
Product size:about(L*W)9.4*6.2cm/3.7*2.44inch
No Retail Packages
