TB6600 Stepper motor driver TB 6600 NEMA23 Nema 23 42 57 with Case box
Deskripsi singkat
Elektronik > Perangkat Dapur > Oven > TB6600 Stepper motor driver TB 6600 NEMA23 Nema 23 42 57 with Case box
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

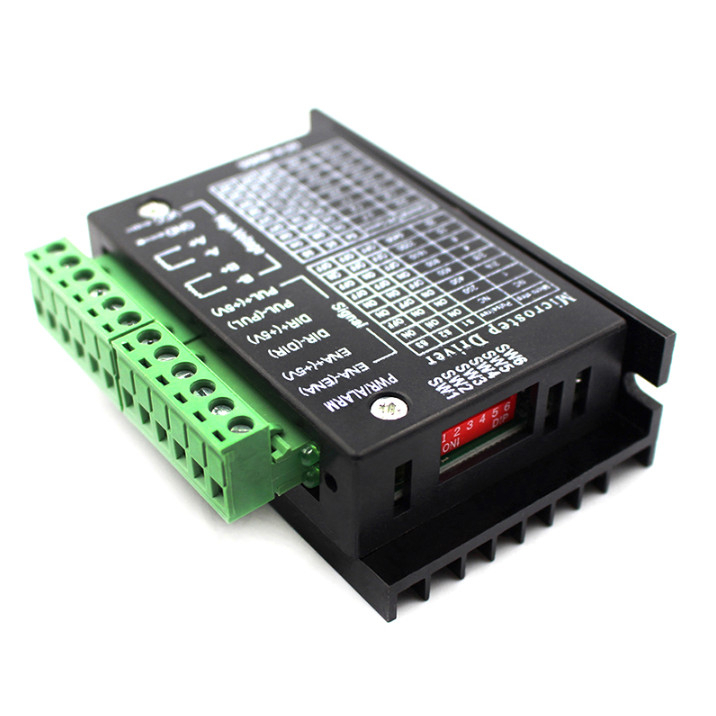

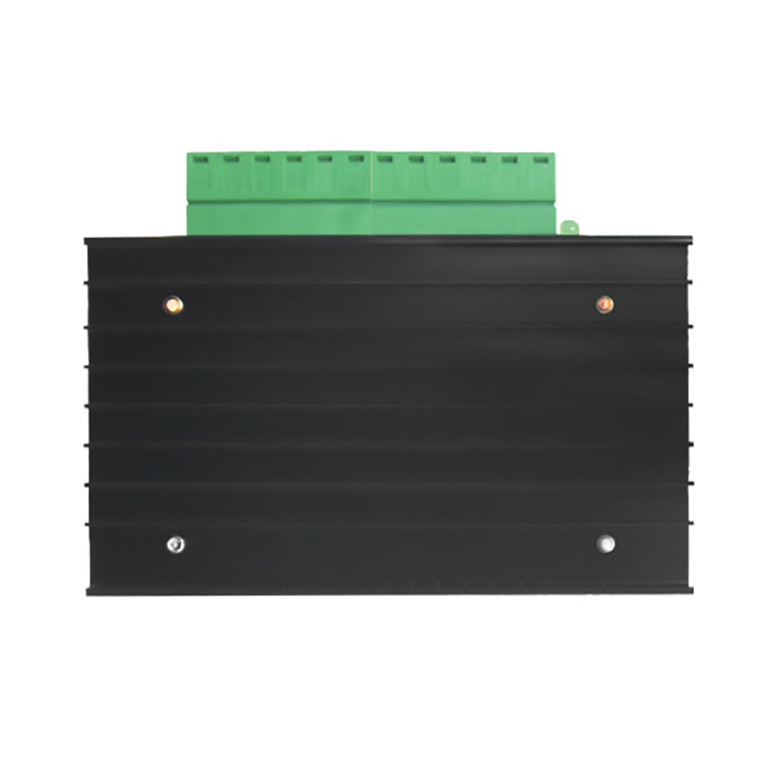

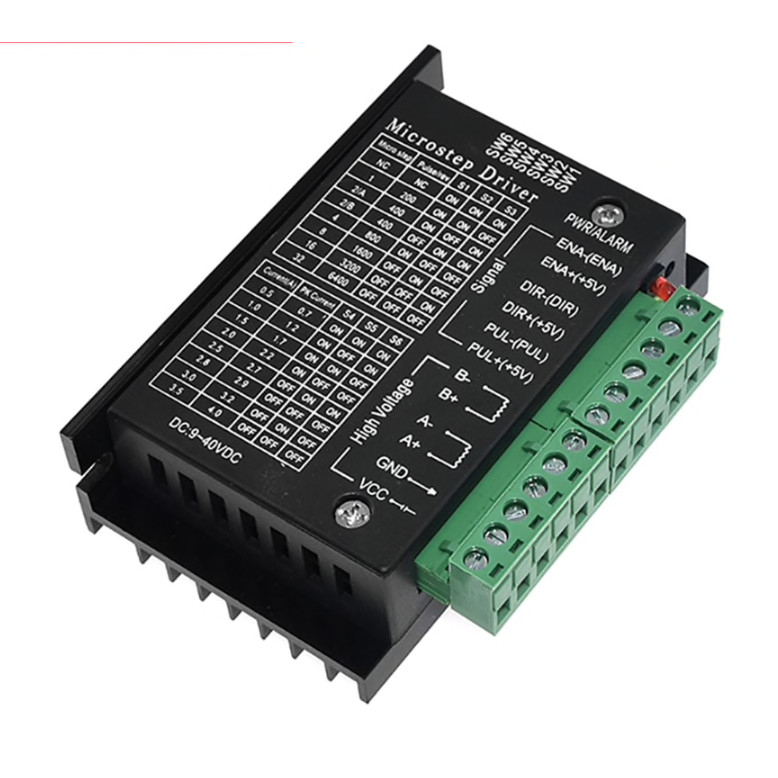

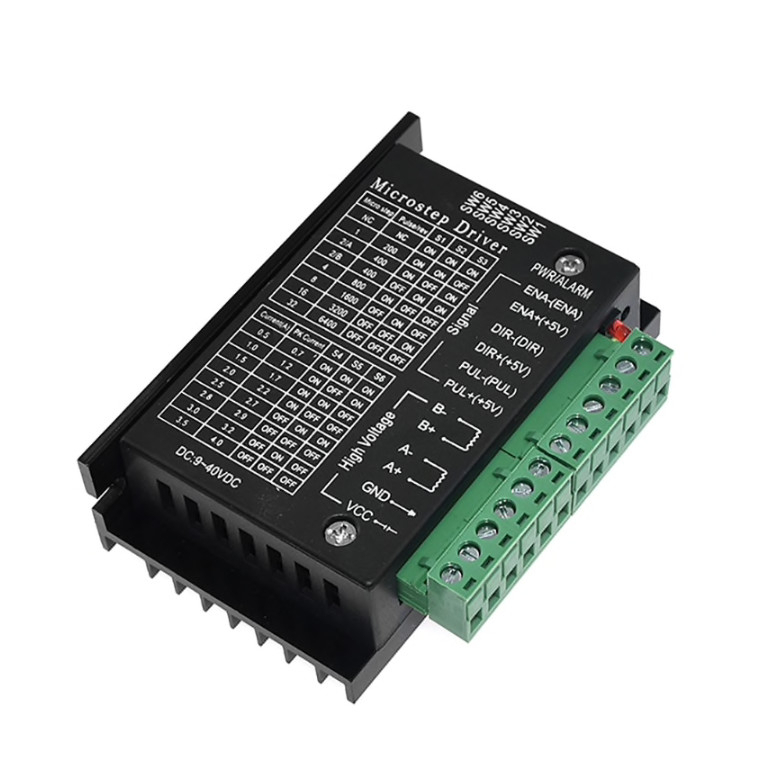

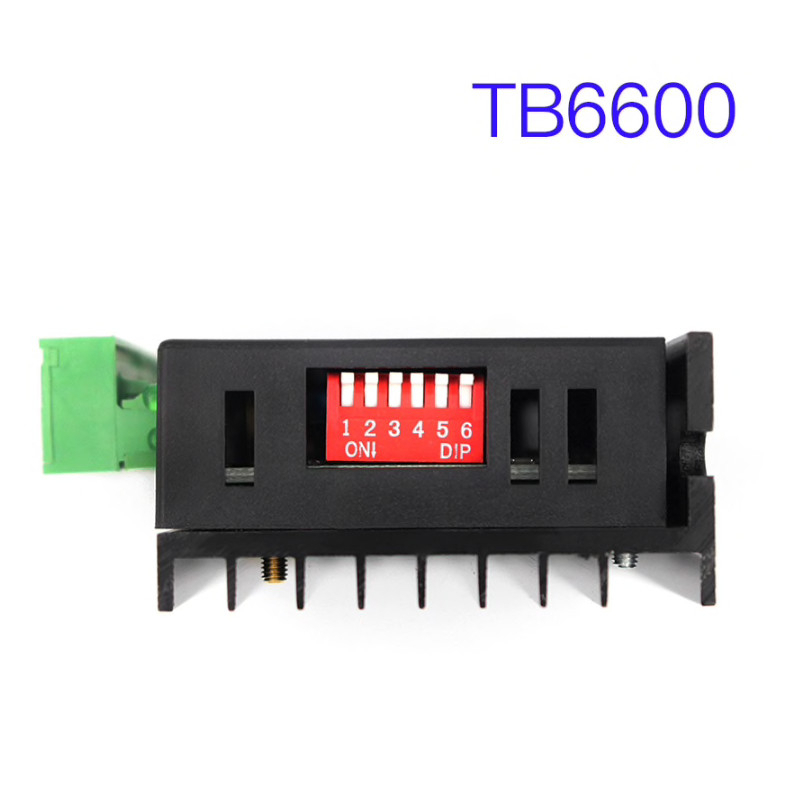

Detail TB6600 Stepper motor driver TB 6600 NEMA23 Nema 23 42 57 with Case box
Baby features: This driver is an upgraded version of TB6600, the subdivision is increased to 32 subdivisions, suitable for high subdivision purposes. Applicable stepper motors: 42, 57 and 86 type 2 phase 4 phase (4 wire 6 wire 8 wire)1. 9V-42V DC power supply;
2. H-bridge bipolar constant-phase flow drive;
3. Eight output currents of 4.0A are optional;
4. Six subdivision modes of 32 subdivisions are optional;
5. High-speed photoelectric isolation of input signal;
6. Standard common positive single pulse interface;
7. Offline hold function;
8. The semi-enclosed casing can adapt to more severe environment;
9. Provide energy-saving semi-automatic current lock function;
10. Built-in temperature protection and over-current protection.
Gambar produk
