TB6560 3A Single Axis CNC Stepper Motor Driver

Detail TB6560 3A Single Axis CNC Stepper Motor Driver

TB6560 3A Single Axis CNC Stepper Motor Driver
Single Axis 3A TB6560 Stepper Motor Driver Controller CNC Router

Description:
100% brand new and high quality

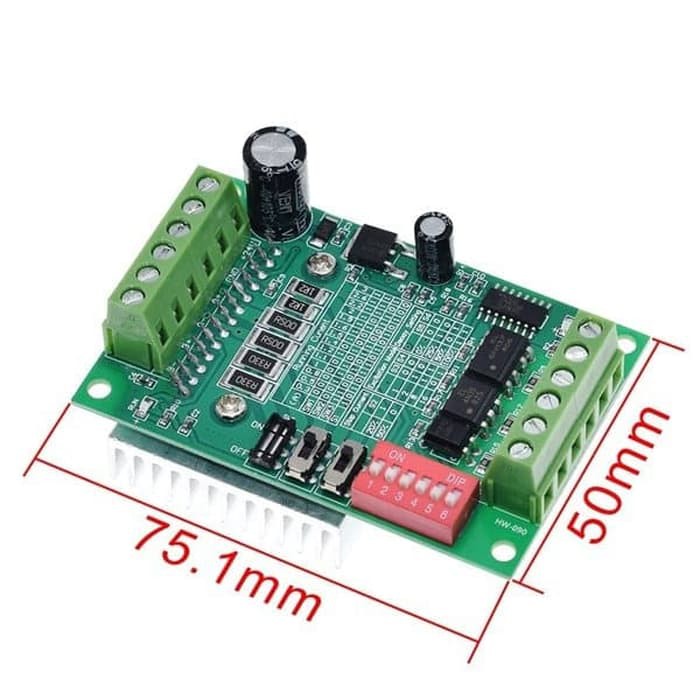

Size:75*50*35(mm) (LxWxH) / 2.95''x1.96''x1.37'' (approx)
Rated maximum output: 3A, peak 3.5A.
Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.
Using the Toshiba TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance.
For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function.
6N137 high-speed optical coupling, guarantee high speed without losing step.
Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 Subdivisions.

Features similar products:
1 current grade-by-adjustable to meet your demand for a variety of applications.
2 semi-automatic flow adjustable.
3 6N137 high-speed optical coupling, guarantee high speed without losing step.
4 plate printed setup instructions operation without manual also.

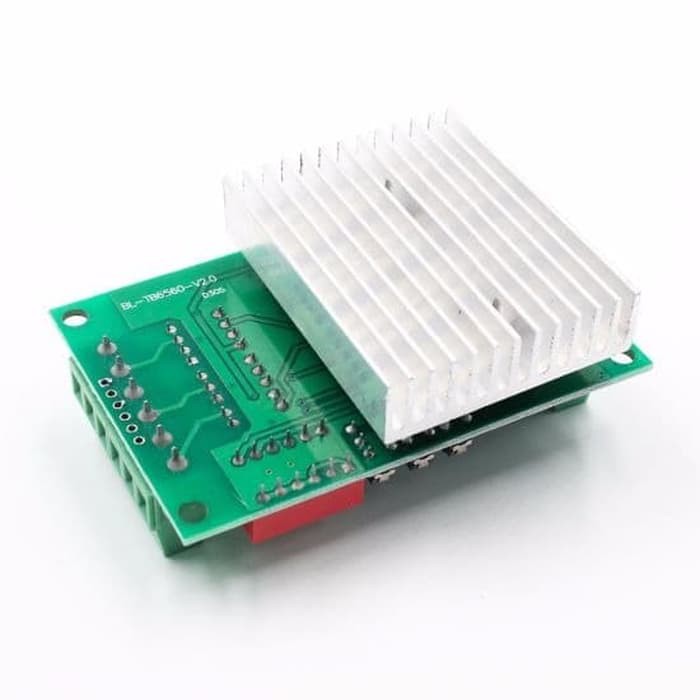

5 thick teeth radiator, good heat dissipation.

Package Included:

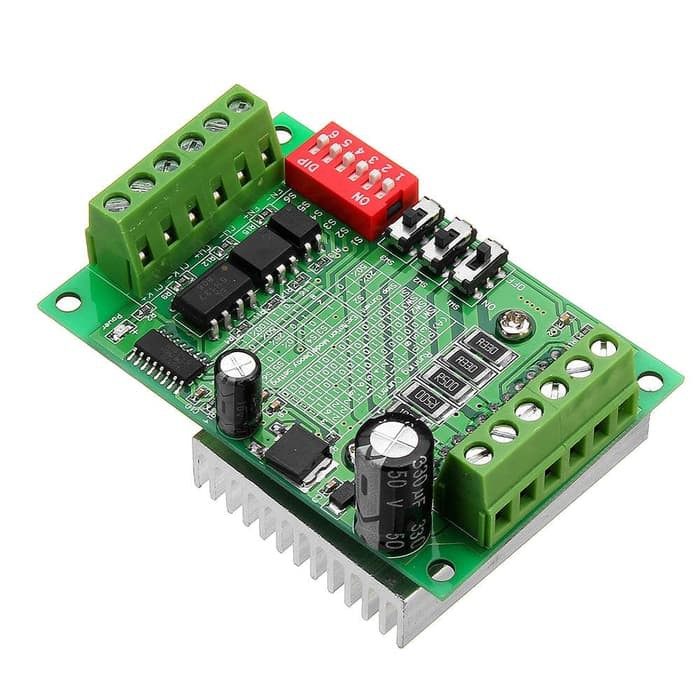

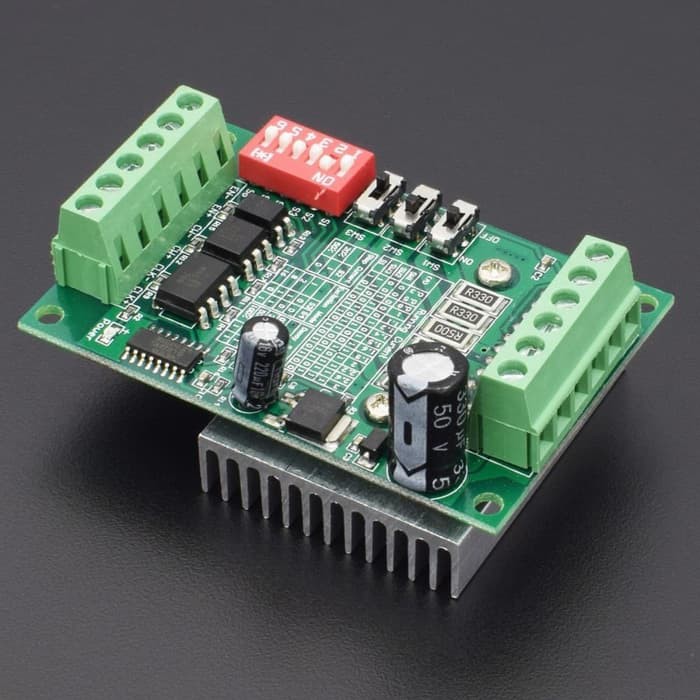

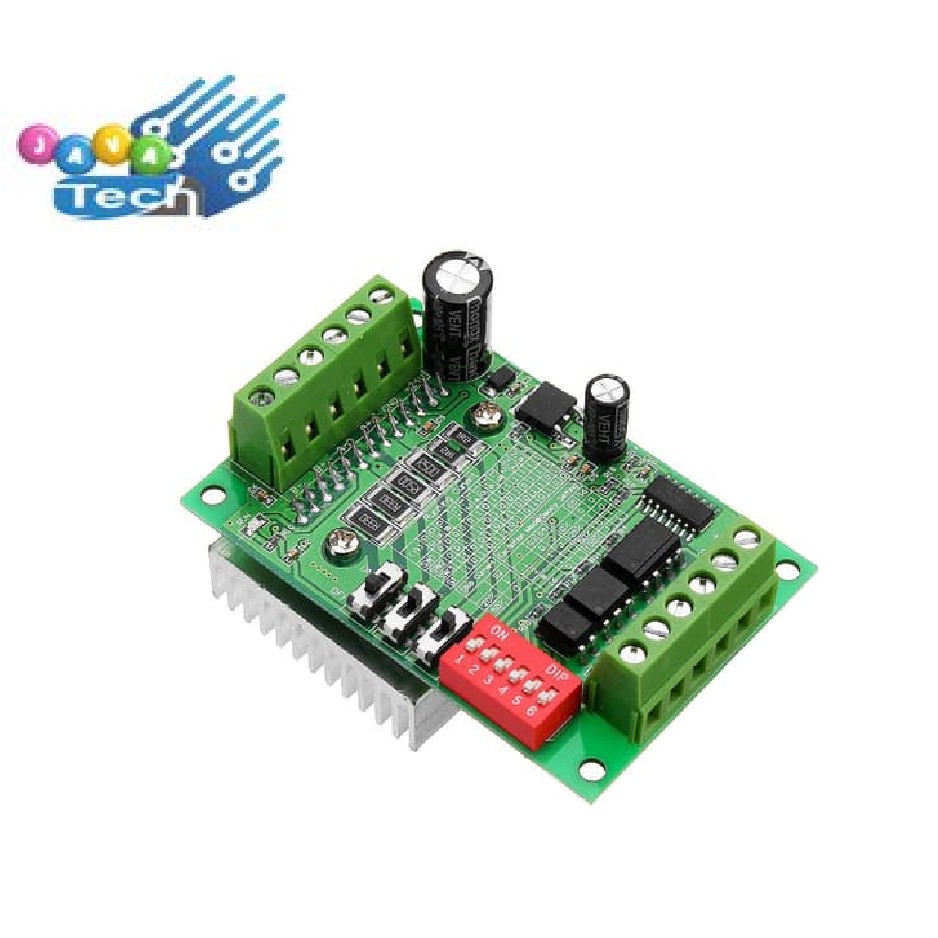

1 x CNC Router Single 1 Axis Controller Stepper Motor TB6560 3A Driver Board
Packing Tanpa dus

Gambar produk
