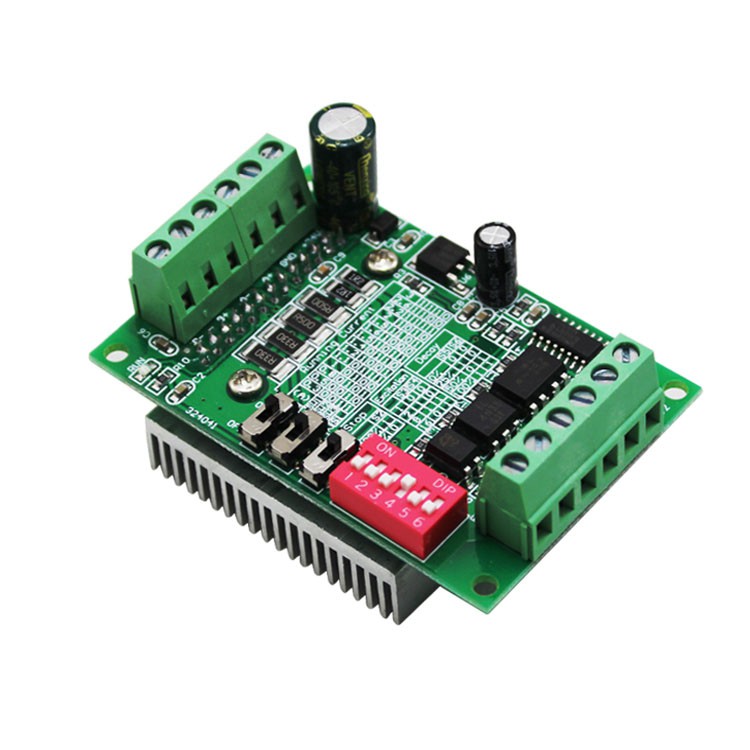

TB6560 3A CNC Router Single Axis Controller Stepper Motor Driver AG05

Detail TB6560 3A CNC Router Single Axis Controller Stepper Motor Driver AG05

TB6560 3A CNC Router Single Axis Controller Stepper Motor Driver AG05

Features
The current level is adjustable to meet your various application requirements; Automatic semi-flow adjustable; The use of high-speed optical coupling 6N137, ensuring high speed without losing step; The board printed setup instructions, no user manual can operate; Using thick fine-toothed radiator, good heat dissipation.

Specification
- Working voltage: DC 10~35V, recommended using switch DC 24V power supply;
- Uses 6N137 high speed optocoupler, ensuring high speed never lost steps;
- Uses Toshiba TB6560AHQ brand new genuine chip, with low-voltage shutdown, over-temperature and over-current protection circuit parking, to ensure optimum performance;
- Rated maximum output is about 3A, peak value is 3.5A;
- Suitable 42, 57 3A stepper within two / four phase, four wire / six wire stepper motor, not suitable for more than 3A stepper motor;
- Automatic half current function; Segments: full step, half step, 1/8 step, 1/16 step, up to 16 segments;
- Size: 50 x 75 x 35 (mm)
- Packing List 1 x Motor driver board
- Dimensions: 2.95 in x 1.97 in x 1.38 in (7.5 cm x 5.0 cm x 3.5 cm)
- Weight: 2.89 oz (82 g)
