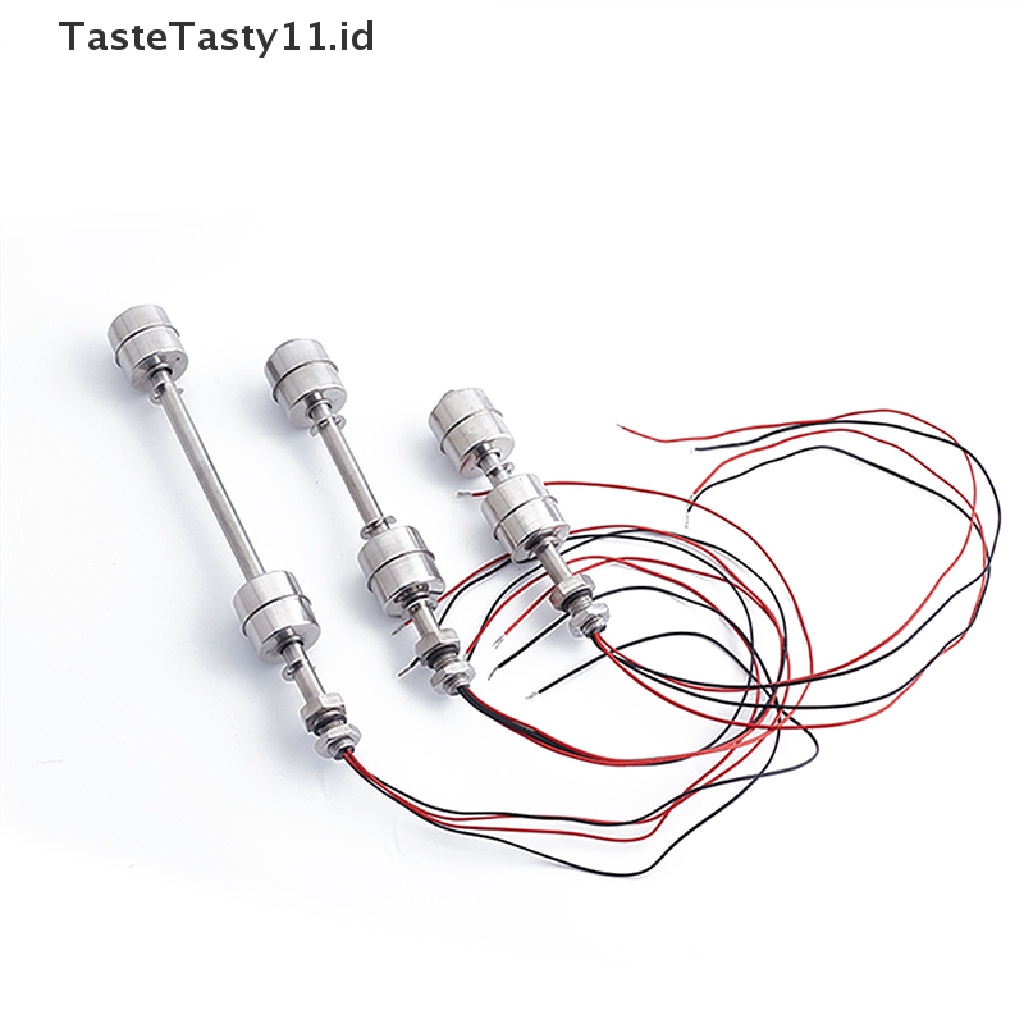

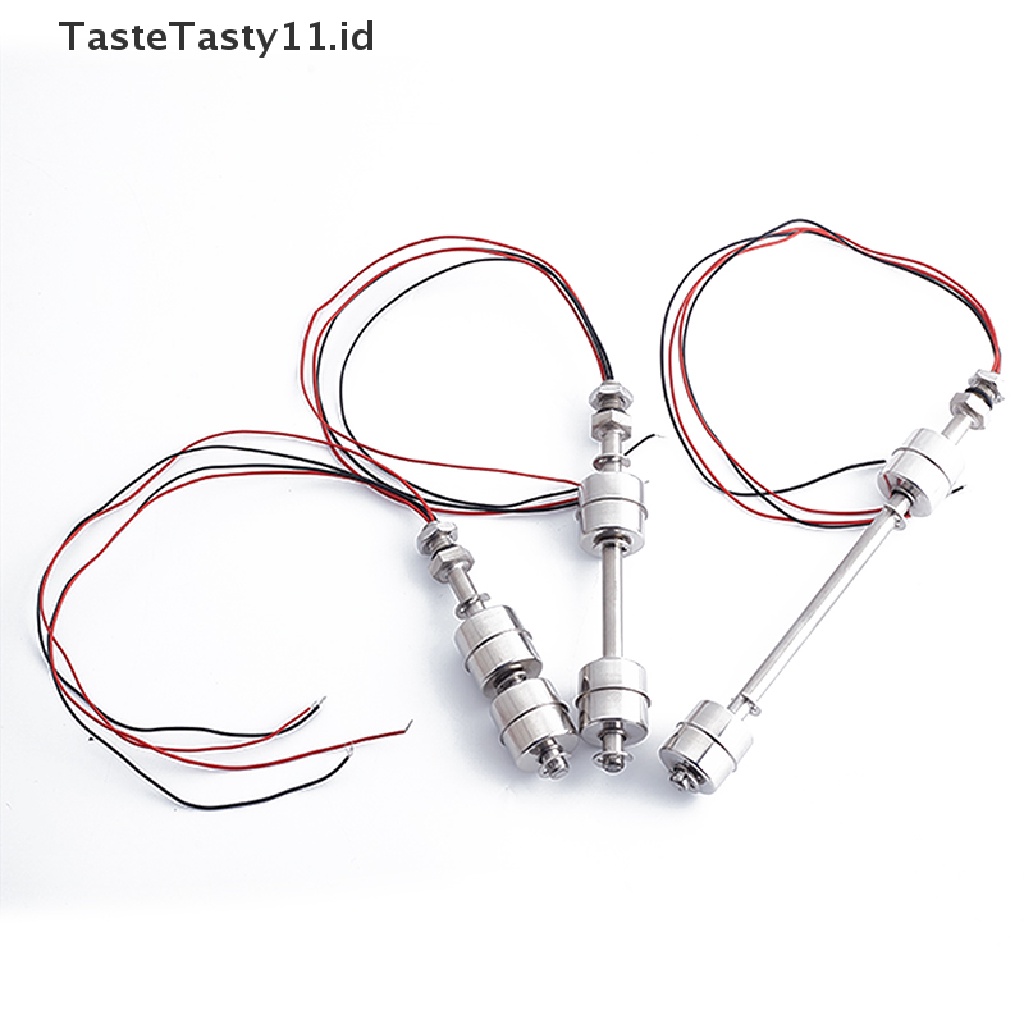

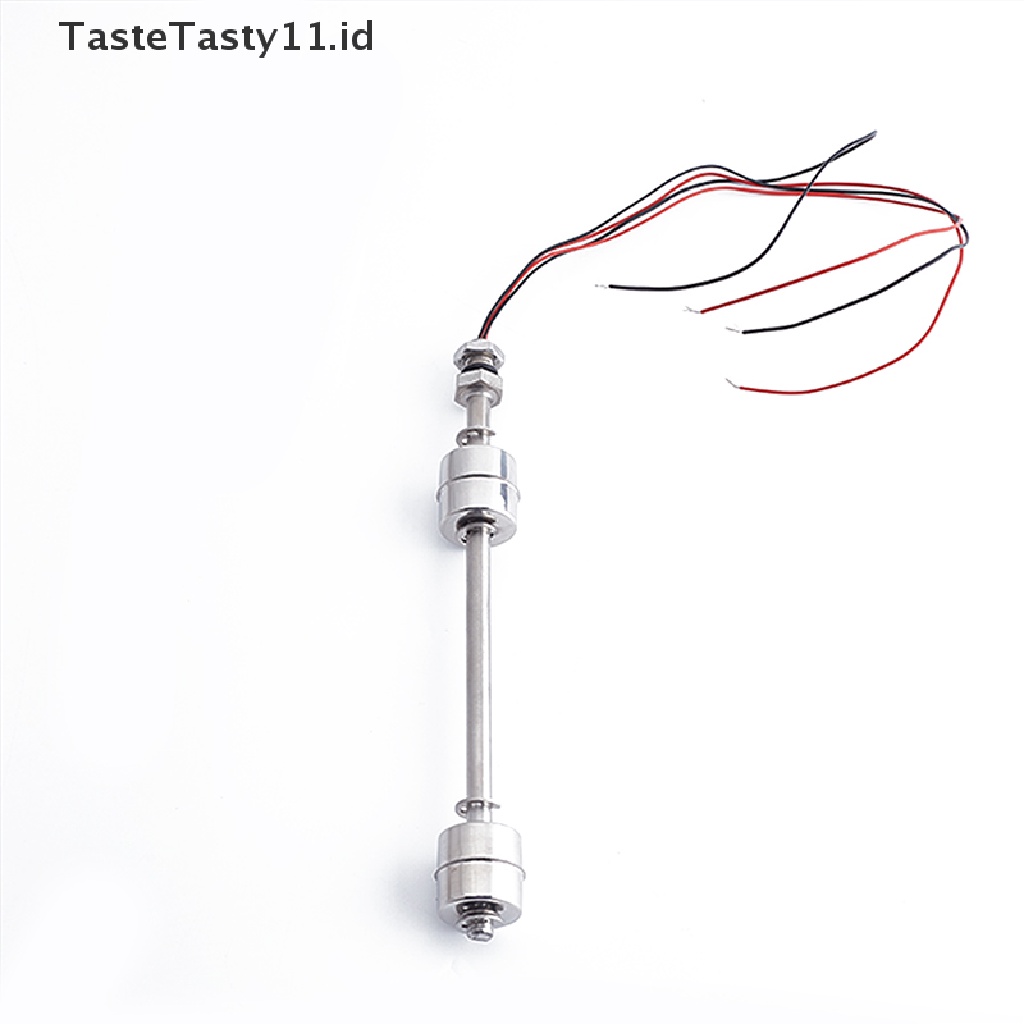

【TasteTasty】 Stainless Steel Double Ball Float Switch Tank Liquid Water Level Flow Sensor .

Detail 【TasteTasty】 Stainless Steel Double Ball Float Switch Tank Liquid Water Level Flow Sensor .

Features:
Used to sense the level of liquid within a tank.
Light weight and simple working principle, high reliability.
The switch may activate a pump, an indicator, an alarm, or other device.
This float switch is a simple structure, easy installation liquid level controller.
Widely used in electronic, electrical, chemical, water treatment, drainage and other fields.
The versatility of this vertically mounted sensor means that it can be installed either at the top or base of your tank, depending on whether you for wish to detect the water's rise or fall.
Specification:
Color: Silver
Material: Stainless Steel
Max. Contact Rating: 10W / 50W
Max. Switching Voltage: 240V AC
Max. Breakdown Voltage: 220V DC
Max. Switching Current: 0.5A
Max. Carry Current: 1A
Max. Contact Resistance: 100mΩ
Operating Pressure: 10kg/cm
Max. Pressure: 0.2 Mpa
Applicable Proportion: 0.75
Operating Temperature: -10 ~ +120℃
Switch Operation: Reversible
Wire: PTFE High Temperature Line
Installation Method: Vertical Mounting
Thread Diameter: 10mm / 0.39 inch

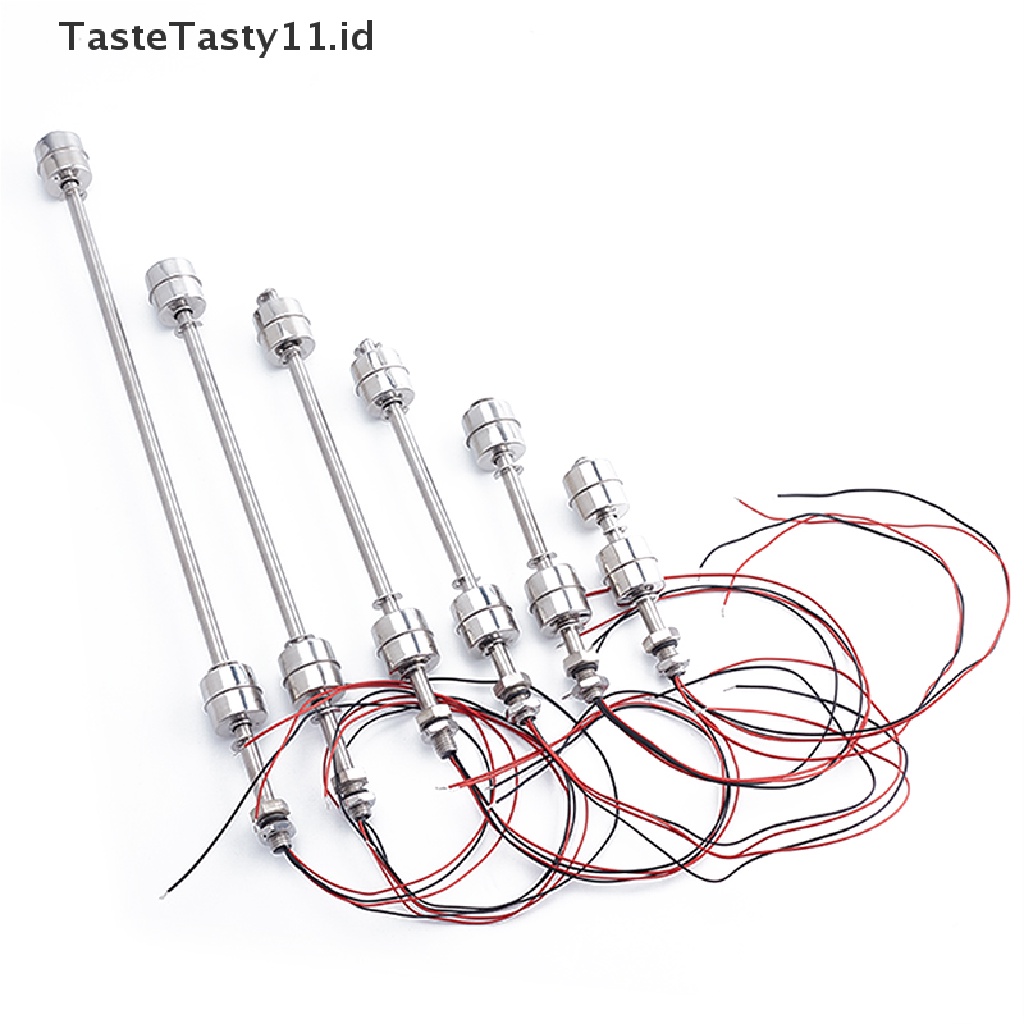

4 Size Optional:
100mm / 3.94 inch
150mm / 5.91 inch
200mm / 7.87 inch
250mm / 9.84 inch

Package Included:
1 x Floating Switch
