Kelowna Type-C Metal Connector Plug Type C Shell Customized Data Cable Plug CNC Anodized
Kelowna Type-C connector



Connector accessories only, non-data cable



Using 2-in-1 design anodized aluminum process,

The back end plug does not need to be filled with glue at the back end, and the elongated drawing design increases friction.

After the plug terminal is welded, install it at the front, and the wire is drawn from the plug and screwed on the screw

The installation process can be completed, and it is also convenient for later maintenance.



Basic Information:

❀ The total length of the combination: about 37mm, the maximum allowable wire diameter: about 6mm

❀ Product outer diameter: about 11.2mm at the widest point

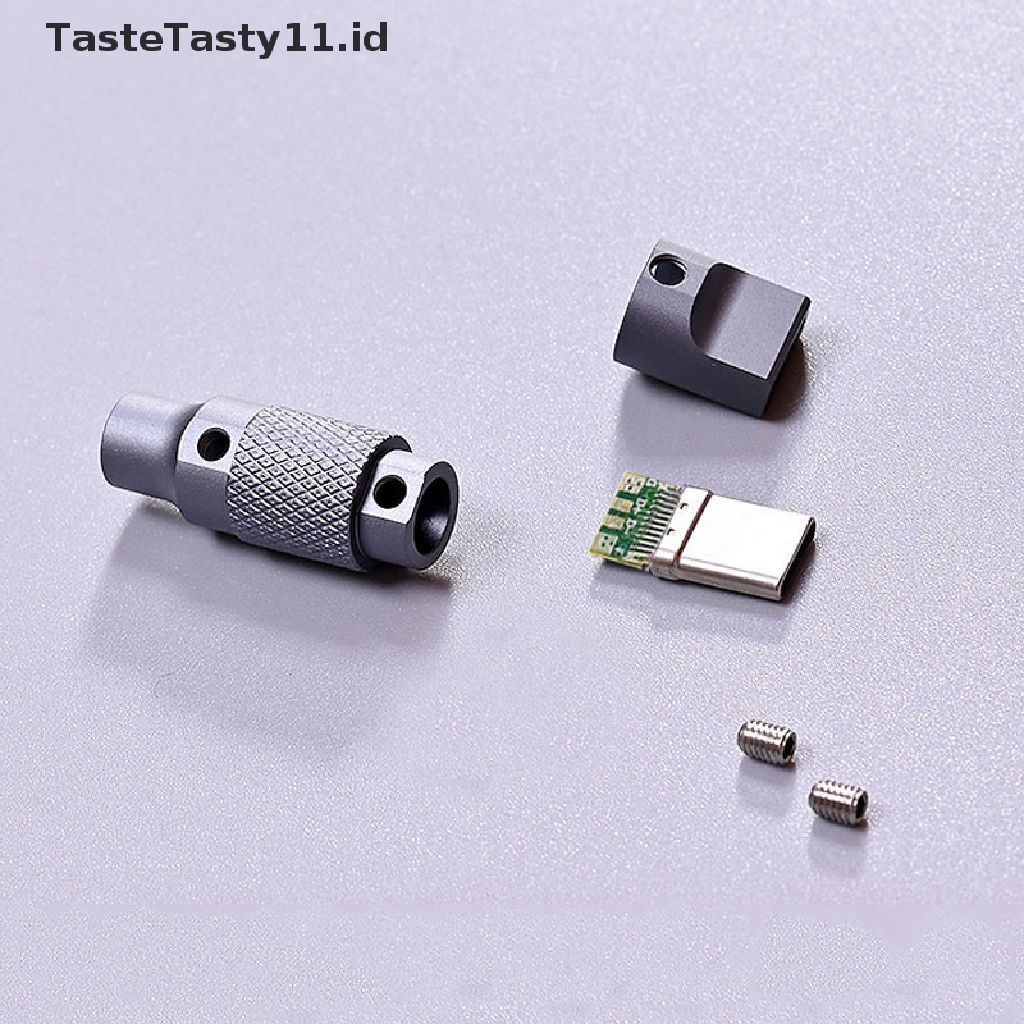

❀ Product process: CNC anodizing. Accessories included: screw and typec plug

❀ Installation method: After the plug is soldered, apply silicone rubber to the solder joints, lead out the wire from the rear end, and tighten the 2 locking screws.



Product advantages:

A: The maximum length of the combined body is about 37mm, and the thick shell shell does not need to add an adapter

B: Except the solder joints need to be fixed with insulating glue, the other places are glue-free and clean and environmentally friendly.

C: The combined two-in-one structure is convenient for fool-proof installation and maintenance.

D: The wire diameter supports 6mm, and the commonly used wire diameters of customized data lines are well supported.

This product is only a connector accessory, not a data cable, please see the purchase clearly
At present, the attached terminal is four-core supporting 4.5A fast charge
The welding line should not be too thick to avoid installation difficulties
To ensure compatibility, please use the included fast charging terminal

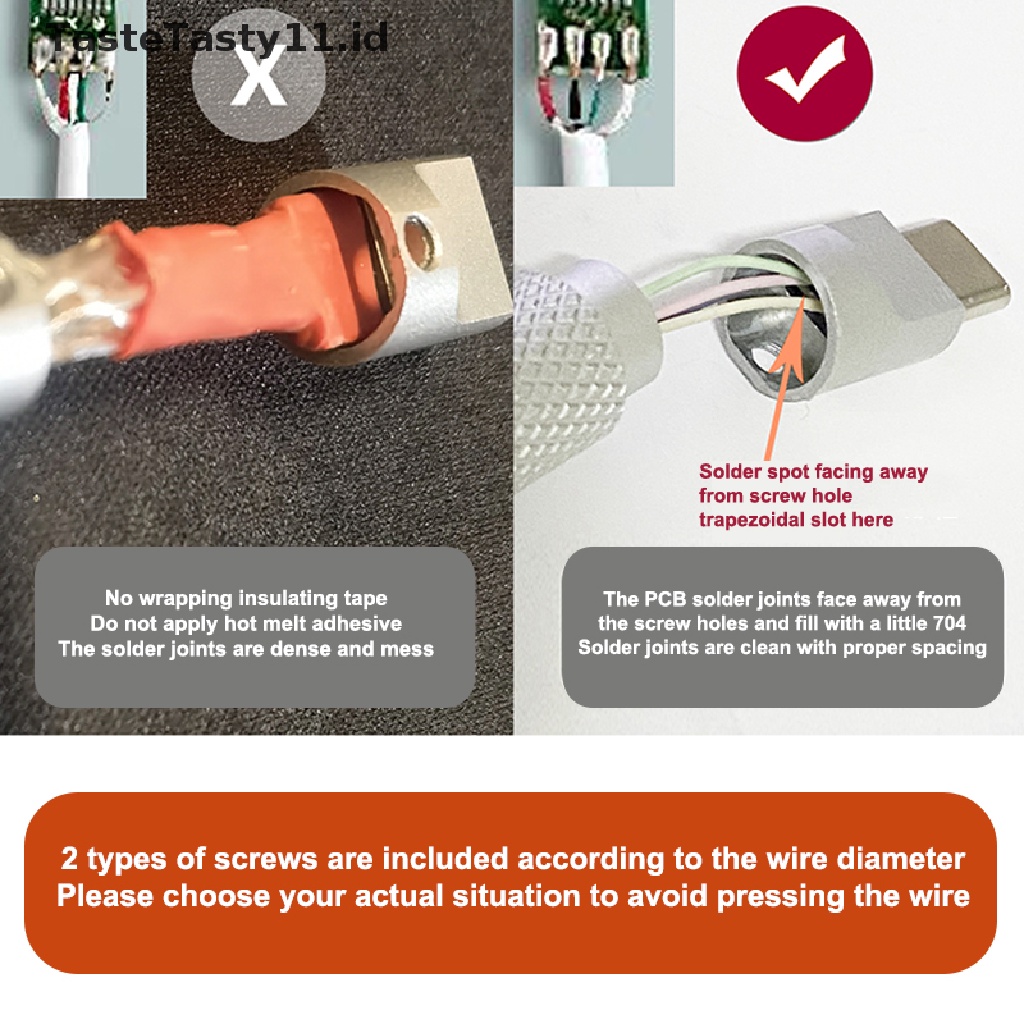

Apply a little 704 after installation to avoid loose connectors and short circuits
Do not wrap tape or apply hot melt adhesive to avoid pressure
Fixed parts are incorporated in the design Insert the components into the front position after soldering
Apply a little 704 liquid glue to the inner cavity of the front end
Then insert the back end CNC shell and tighten the screws.
No need to fill a lot of hot melt adhesive, but it will cause internal extrusion deformation and short circuit
