Detail (TasteTasty) 20-80℃ Ksd-01f Termostat Saklar Sensor Suhu Termal Tertutup Normal

Technical parameter:
Contact load: 220VAC 1A or 24VDC 3A

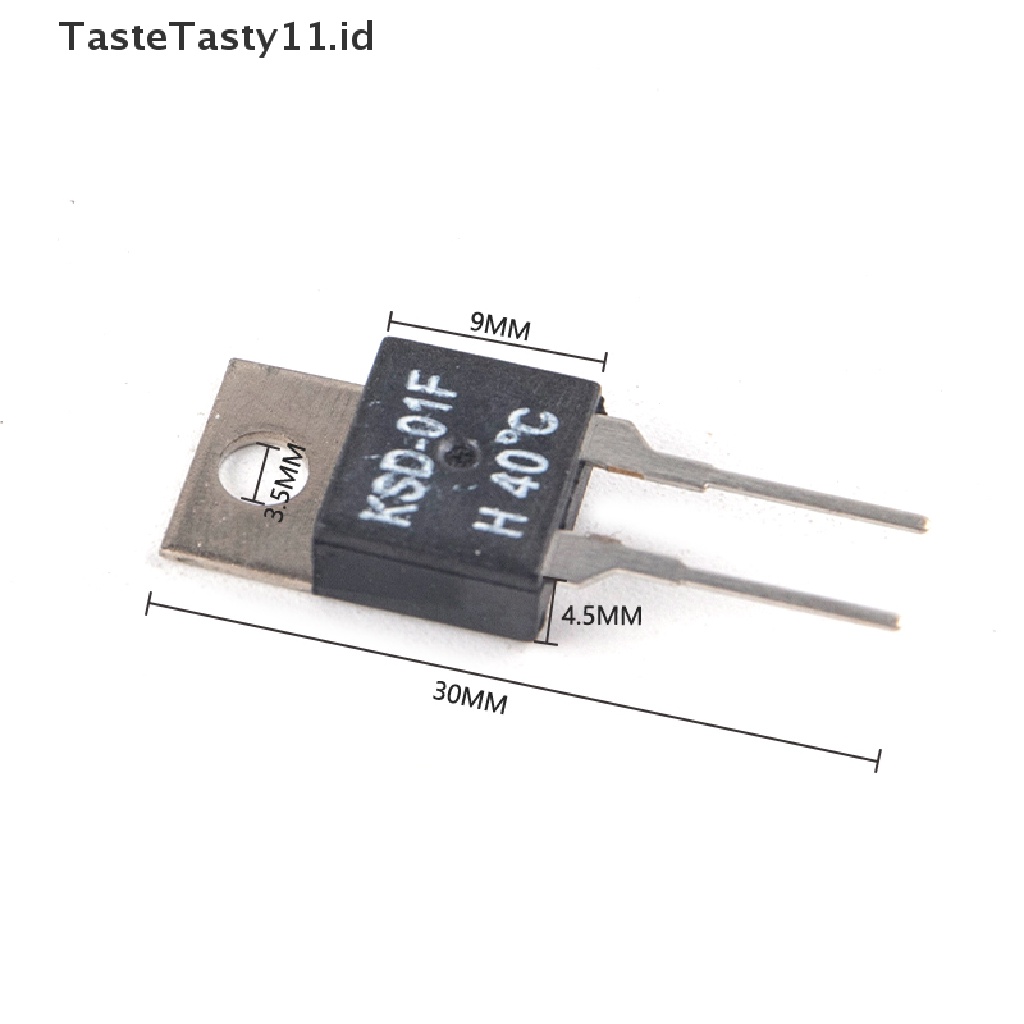

Dimensions (total length × width × thickness): 29.7 × 10.2 × 4.7mm
Temperature range: 0℃-130℃ (one specification per 5℃)

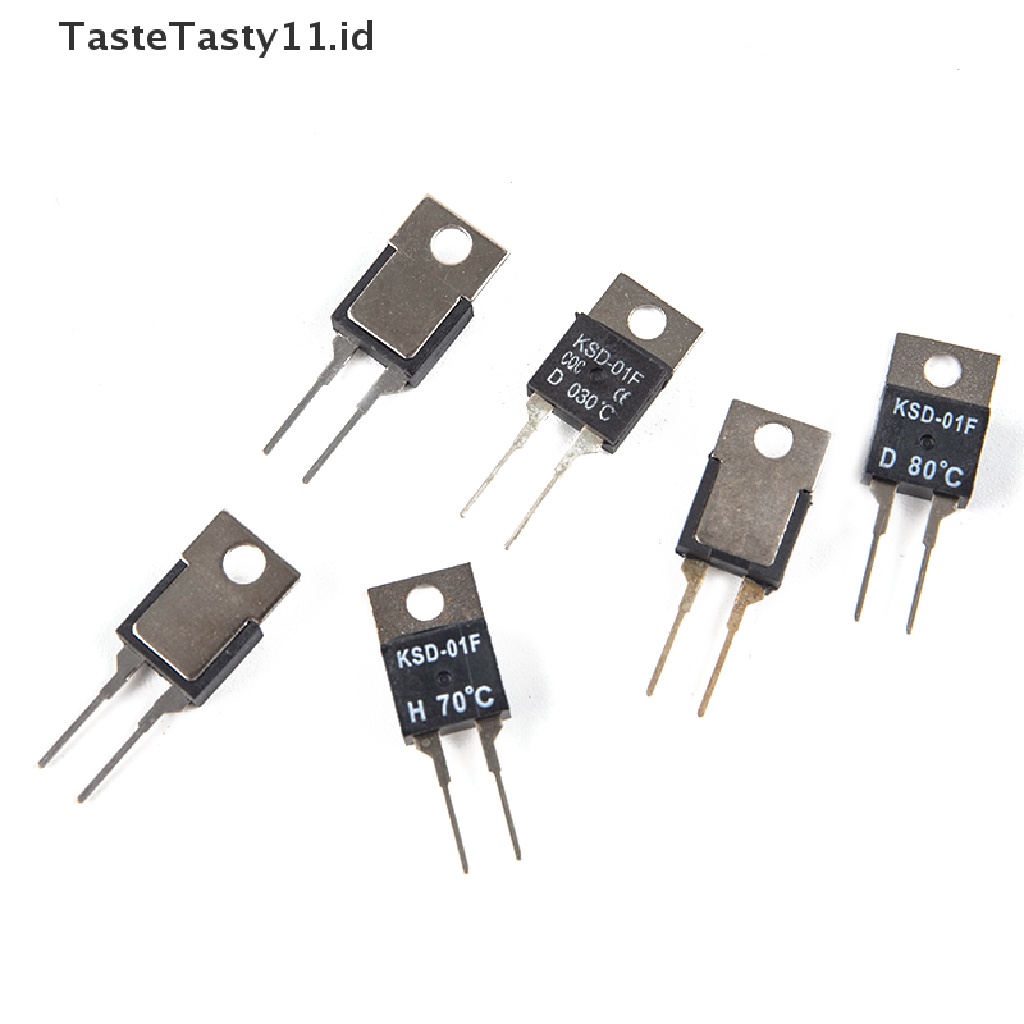

Contact type: normally closed (-D) or normally open (-H)
Package form: TO-220 metal backplane
Contact resistance: ≤ 50mΩ
Insulation value: ≥100MΩ (500VDC)
Dielectric strength: 1500V/DC, 60Hz
Standard tolerance: ± 5℃
Working environment temperature: -55℃- 160℃ (short-term maximum temperature: 260℃ for 10 seconds)
Weight≤2g
working principle:
KSD-01F temperature control switch adopts TO-220 package form, jump type, single-pole/single-throw contact point 100% conduction structure, when the outside temperature is too high
When it is transferred to the corrected bimetal, it will act quickly, so as to cut off or connect the circuit (normally closed or normally open), when the temperature drops to
When the temperature is reset, the bimetal is quickly reset again, and the work is repeated to ensure the safety of product temperature protection.
Product Usage:
Suitable for space saving PC boards. Typical uses include alarming or shutting down systems when circuits are overheated; computers and computer peripherals, electrical equipment;
Electronic products; power supplies; aircraft, automobiles, medical equipment and test equipment; temperature control and thermal overload protection in household appliances and circuit boards.
Package includes:1pc
