Tascam US-1x2 US 1 x 2 Soundcard Recording

Detail Tascam US-1x2 US 1 x 2 Soundcard Recording

Deskripsi Tascam US-1x2 US 1 x 2 Soundcard Recording

SPESIFIKASI TASCAM US 1x2
- Sampling frequency 44.1k/48k/88.2k/96k Hz
- Quantization bit rate 16/24bit
- Analog audio inputs MIC IN (IN 1)
- Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
- Input impedance 2.4k ohms
- Nominal input level GAIN:MAX -65dBu (0.0004Vrms) GAIN:MIN -8dBu (0.3090Vrms)
- Maximum input level +8dBu (1.9467Vrms) Gain 57dB
- LINE/INST IN (IN 2) LINE IN Connector 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
- Input impedance 10k ohms
- Nominal input level GAIN:MAX -41dBu(0.0069Vrms) GAIN:MIN +4dBu(1.228Vrms)
- Maximum input level +20dBu(7.75Vrms) Gain 57dB
- INST IN Connector 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED
- Input impedance 1M ohms
- Nominal input level GAIN:MAX -58dBV(0.0013Vrms) GAIN:MIN -13dBV(0.2239Vrms)
- Maximum input level +3dBV(1.1425Vrms) Gain 57dB
- LINE L/R IN Connector RCA pin-jack, UNBALANCED
- Input impedance 10k ohms
- Maximum input level +6dBV(1.9953Vrms)
- Analog audio outputs LINE OUT
- Connector RCA pin-jack, UNBALANCED
- Output impedance 100 ohms
- Maximum output level +6dBV (1.995Vrms)
- PHONES Connector 6.3mm(1/4") stereo phone jack
- Maximum output level 18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded)
- Control IN / OUT USB Connector USB B type 4-pin Format USB2.0 HIGH SPEED
- DC IN 5V Connector USB Micro B type
Dimensions 146(W) × 55(H) × 120(D)mm
Accessories USB cable (1.5m), Installation manual, User's manual, warranty card

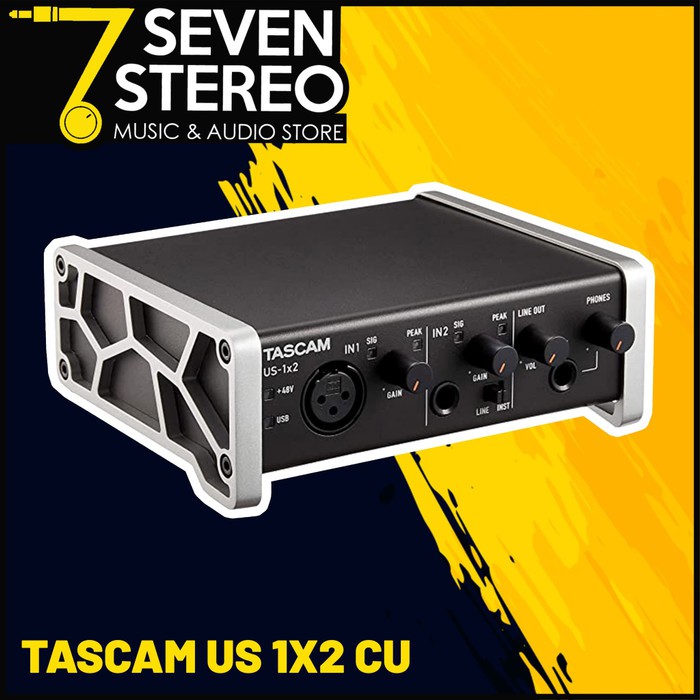

Gambar produk
