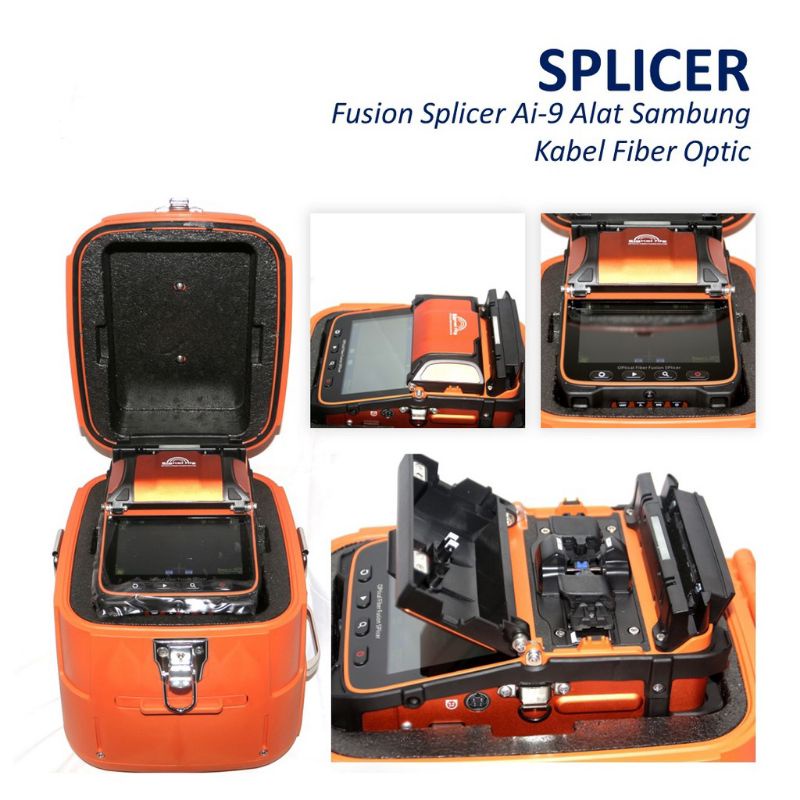

Tarmoc Fiber Optik Fusion Splicer AI9 Splicing FO AI9 (Splicing)

Detail Tarmoc Fiber Optik Fusion Splicer AI9 Splicing FO AI9 (Splicing)

Tarmoc Splicer Ai9 | Fiber Optic Fusion Splicer with OPM and VFL
Garansi : 3 Bulan

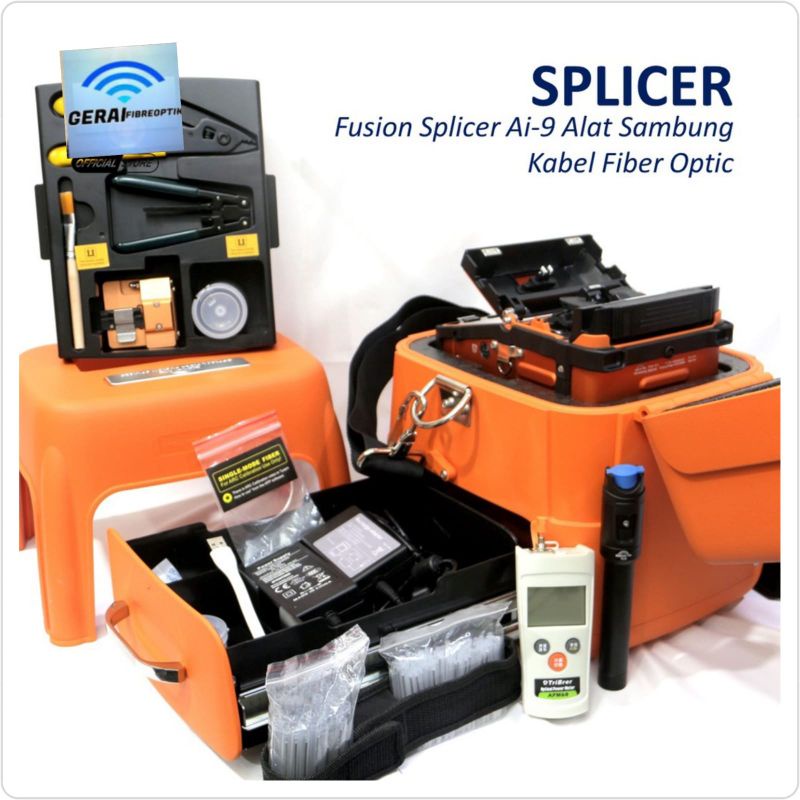

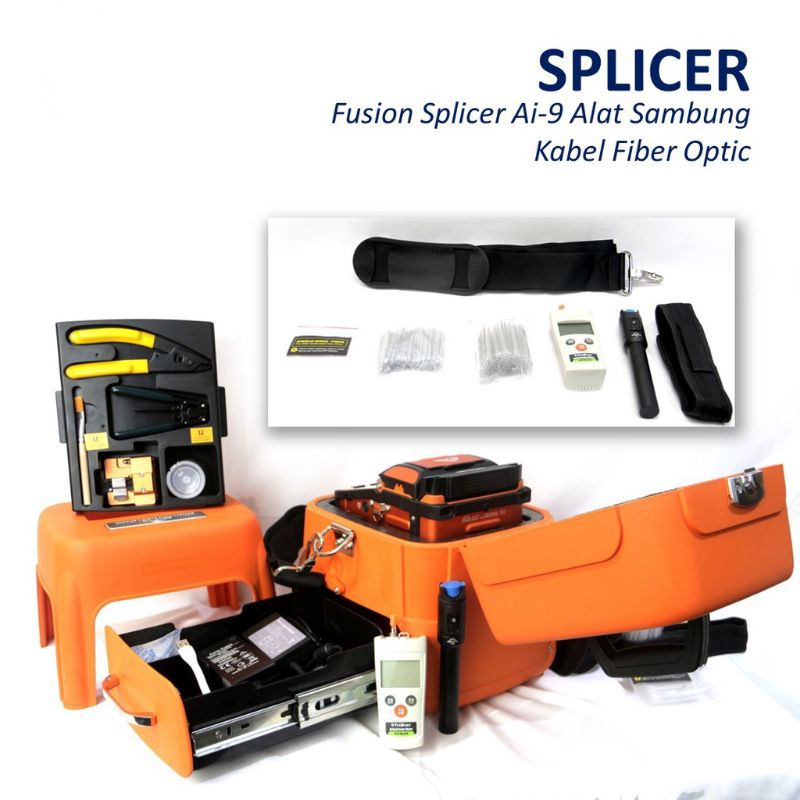

Package Unit :
-9 fusion splicer
-toolbox
-set of spare electrodes
-fiber cleaver
-universal stripper
-stripper for flat cables
-bottle with dispenser
-cleaning brush
-carrying belts (for the splicer and the box)
-AC charger with USB adapter
-Holder SOC


Product Name TARMOC AI-9
Type FTTx and FTTH
Typecial Time 7s
Heating Time 15s
Return loss Better than 60DB
Splice lose SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS: 0.04dB
Tension Test
Standard 2N
Fiber diameter Cladding Diameter 80-150μm, Coating Diameter 100-1000μm
Fiber Cleave Length Coating less than 250µm: 8-16mm, Coating less m250-1000μm: 16mm
Heat shrinkable tube
60mm, 40mm
Visual Fault Locator Power: 15mw, 2hz flashing, and Constantly Bright Mod
Electrodes life 3000 arc discharges
Fiber holders Multi-function holders, Applicable for SM, MM, bare fiber, pigtail, rubber-insulated, multi-fiber cable
Display 5.1 inches color LCD 800x480
Magnification 300 for X or Y view
Motor Six motor
Battery 7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 240 times
Language Multi-language
Other feature Build in Power Meter and VFL
Optical Power Meter Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Measuring Range: -70 ~ +6db
Absolute Error: <0.3db (-50dbm ~ +3dbm Range)
Operating Conditions Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation), Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s
Package size 330*310*370mm
