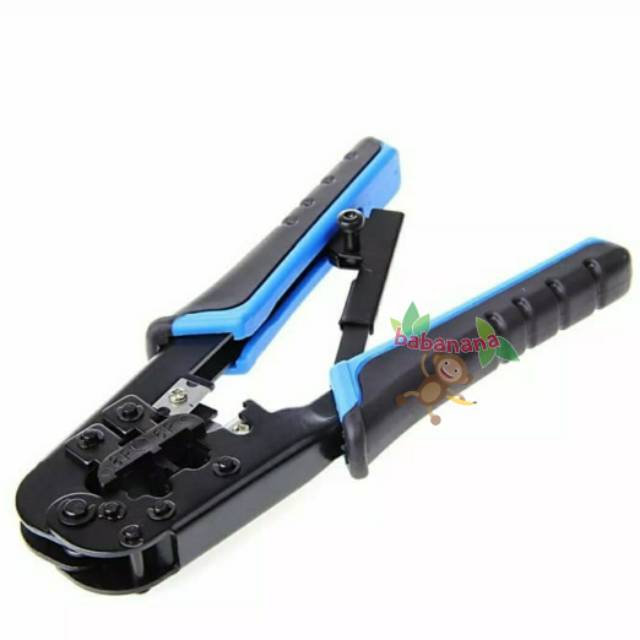

Tang Crimping cutter striper cable kabel rj45 rj12 rj11 blue

Detail Tang Crimping cutter striper cable kabel rj45 rj12 rj11 blue

Non-Ratchet Type: Remove the closed lock to open the handles
Ratchet Type:Squeeze the handles until it stops to open the handles
Cutting modulaar cable:
Place the single-bladed side of the tool's cutter facing you and cut the modular cable to the desired length. Make sure to cut the ends of the cord straight across, not diagonally
Stripping modular cable:

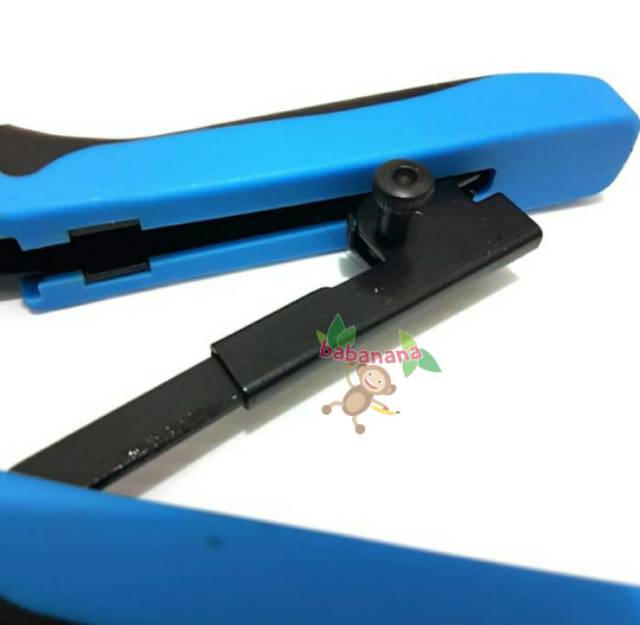

Insert 4P/6P cable into the two-bladed side of the tool's stripper until it touches the stop guide
Insert 8P/10P cable into the two-bladed side of the tool's stripper and let it extend a little past the lower cut blade
Squeeze handles until it stops, cable must be kept perpendicular and then pull from the tool
Remove the outer jacket, insert the stripped cable into the plug and be sure the left wire at one end matches the right wire at the other end

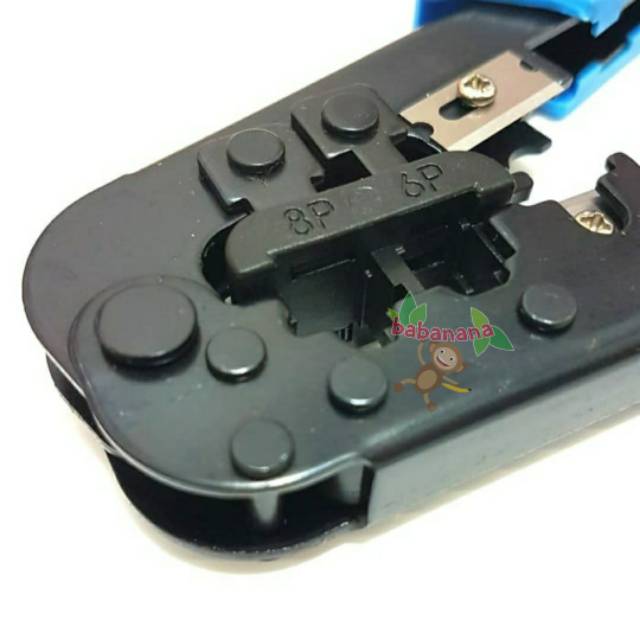

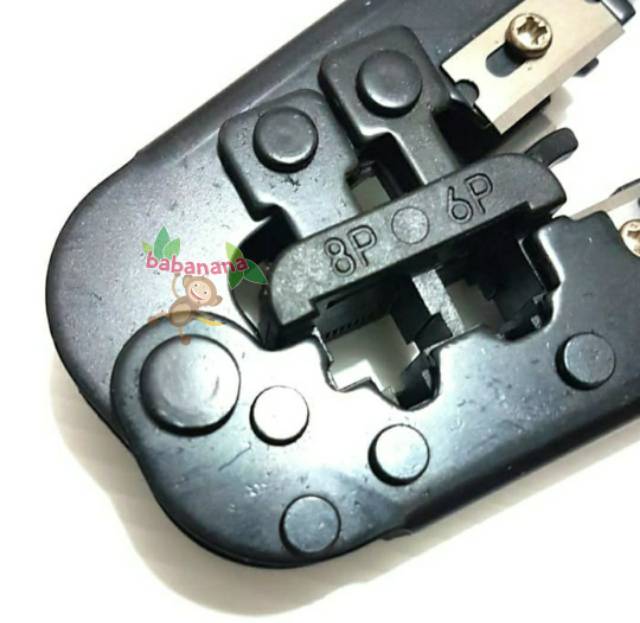

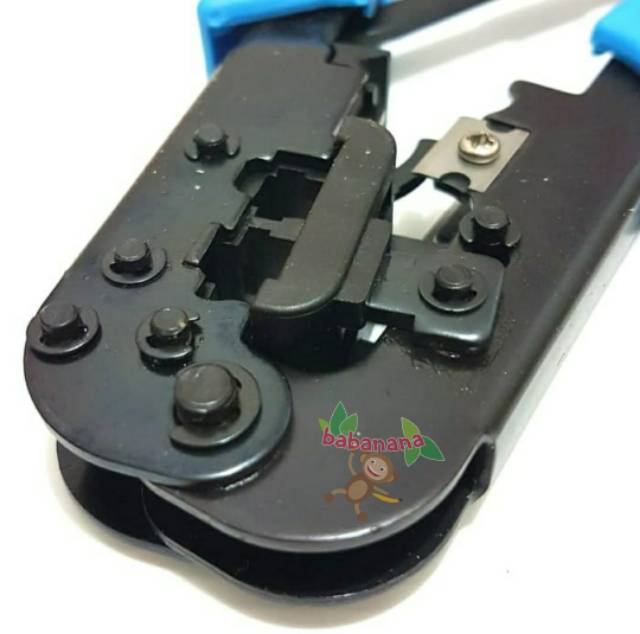

Place modular plug with cable into the tool's holder.Be sure the stripped wire is between the tab and gold contacts. Squeeze handles until it stops
Remove the crimped plug from the tool
For crimping modular plug 8P8C/RJ-45,&6P6C/RJ-12,6P4C/RJ-11

No. 0171

Gambar produk
