Taico Voltage Battery Equalizer Baterai Balancer BMS Aki Equaliser Lead Acid 2x12v 24v DC VRLA Accu

Detail Taico Voltage Battery Equalizer Baterai Balancer BMS Aki Equaliser Lead Acid 2x12v 24v DC VRLA Accu

Video perkenalan produk Taico Voltage Battery Equalizer Baterai Balancer BMS Aki Equaliser Lead Acid 2x12v 24v DC VRLA Accu. Sumber: Shopee.

Kondisi: Baru
Berat: 220 Gram

Merk TAICO (bukan battery equalizer tanpa merk)
Body lebih solid dan kokoh
Ada isolator penutup pada bagian skun
Unit SELALU dites sebelum dikirimkan

Alat ini berfungsi untuk menyeimbangkan tegangan aki 12V yang dipasang secara seri. Sehingga pada waktu charging (pengisian) dan discharging (pemakaian) tegangan masing-masing aki akan sama, atau setidaknya akan berbeda sedikit.

Battery equalizer is used for the lead-acid batteries which are connected in series to keep battery voltage balance. When two or more in-series connected batteries are in charging/discharging/free status. The battery voltages maybe become different. One battery voltage is high and one is low.

The battery equalizer will equalize/balance the battery voltage when it detect there are 20mV between two batteries. It will shunt current from one battery (the higher voltage one) to the other battery (the lower voltage one). Until their battery voltage almost becomes same. This will improve battery’s performance and extent battery’s life time.

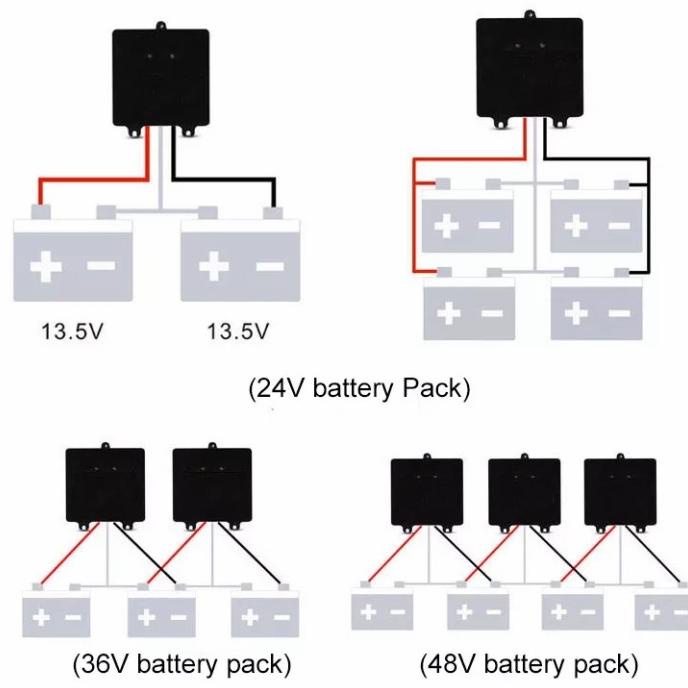

Battery equalizer can be used for 24V, 36V, 48V and any other N*12V battery system.
1 piece for 24V system;
2 pieces for 36V system;
3 pieces for 48V system;
Lihat gambar untuk pemasangannya

Application: Charger Controller, Solar System Controller, Voltage Controller
Size: 70x70x27mm
Colour: Black

CATATAN:
Pelajari buku manual sebelum melakukan pemasangan

Gambar produk
