Tactile Switch Push Button SMD 6x6 2P 4P PIN Tombol Micro Momentary-100pcs

Elektronik > Elektronik Lainnya > Tactile Switch Push Button SMD 6x6 2P 4P PIN Tombol Micro Momentary-100pcs
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Tactile Switch Push Button SMD 6x6 2P 4P PIN Tombol Micro Momentary-100pcs

Harga Untuk Per Buah (Minimal Pembelian 100 Pcs)

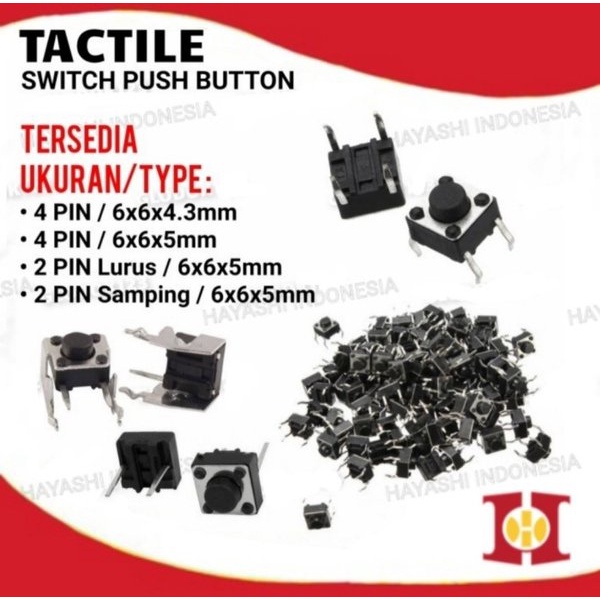

** Tersedia Varian / Type :

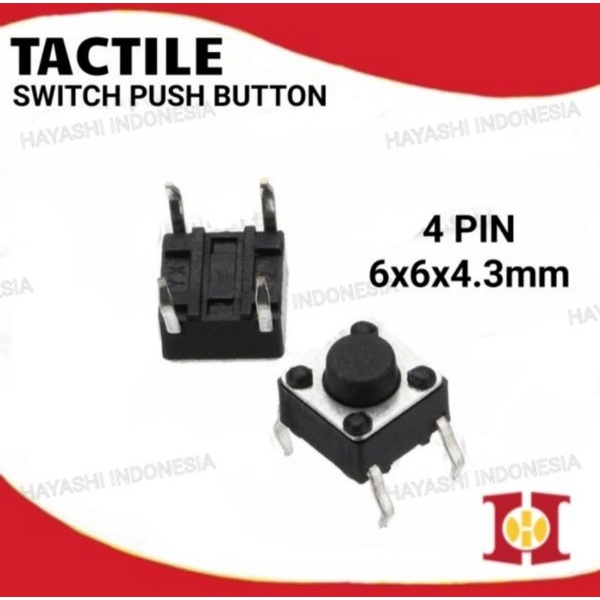

- 4P 6x6x4.3

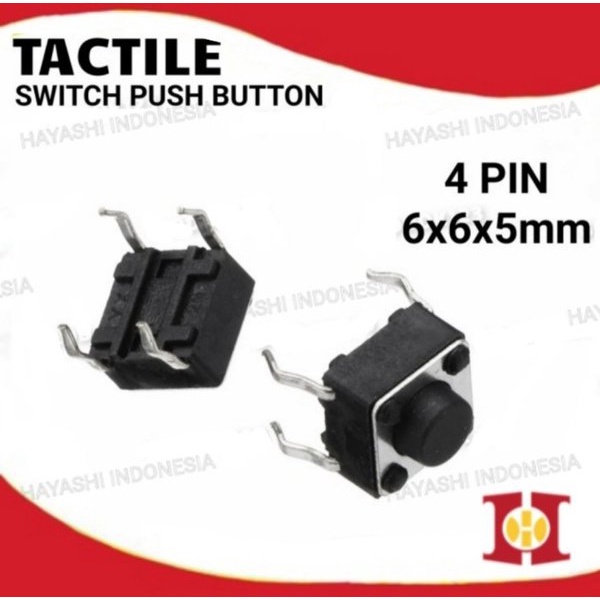

- 4P 6x6x5

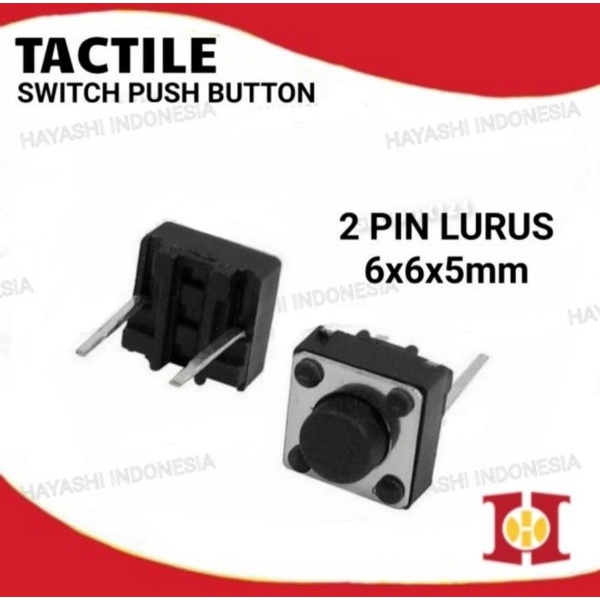

- 2P Lurus 6x6x5
- 2P Samping 6x6x5

Silahkan untuk memilih varian terlebih dahulu

** Deskripsi:
==============================
Micro switch, tactile push button, PCB mount. Push button yang jadi komponen wajib absen kalo agan bikin project mikrokontroller. Tugas utamanya adalah sebagai tombol reset dan penginput data.

Terkadang push button ini suka jadi korban bulan-bulanan penganiayaan, suka dipencet bertubi tubi ketika rangkaian kita nggak berjalan sebagaimana mestinya :D

** Spesifikasi:
==============================
- type : SMD
- Size : 6x6x5mm / 6x6x4.3mm (Pilih di Varian)
- Operating Temperature Range : -20 +70
- Storage Temperature Range : -40 +85
- Type of Operation : Tactile Feedback
- Circuit Configuration : Push-On Momentary, 1 pole-1 throw
- Power Rating : MAX 50mA 24VDC
- Contact Resistance : MAX 100 m
- Insulation Resistance : 100M Min. at 100VDC
- Dielectric Withstanding Voltage : 250VAC for 1 minute
- Contact Bounce : MAX 5ms
