Tachometer Digital LED Blue RPM Speed Meter Sensor Proximity Switch

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > Tachometer Digital LED Blue RPM Speed Meter Sensor Proximity Switch
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Tachometer Digital LED Blue RPM Speed Meter Sensor Proximity Switch

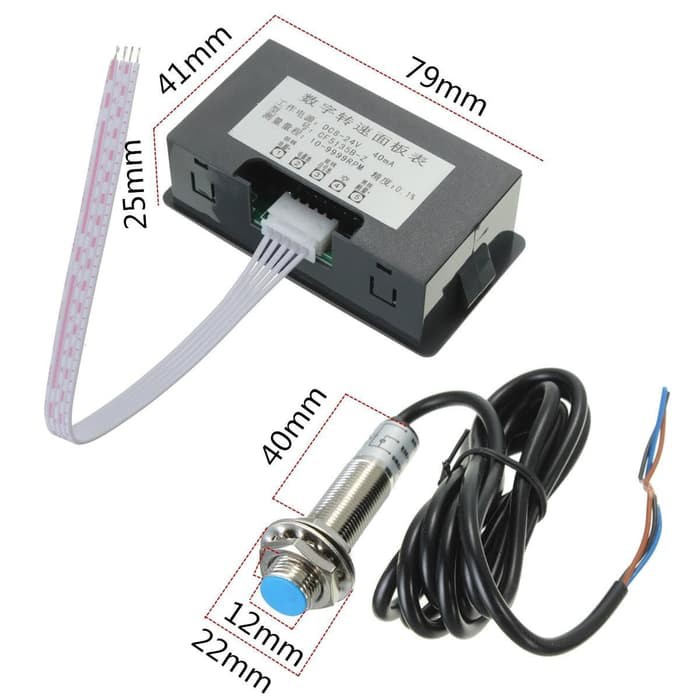

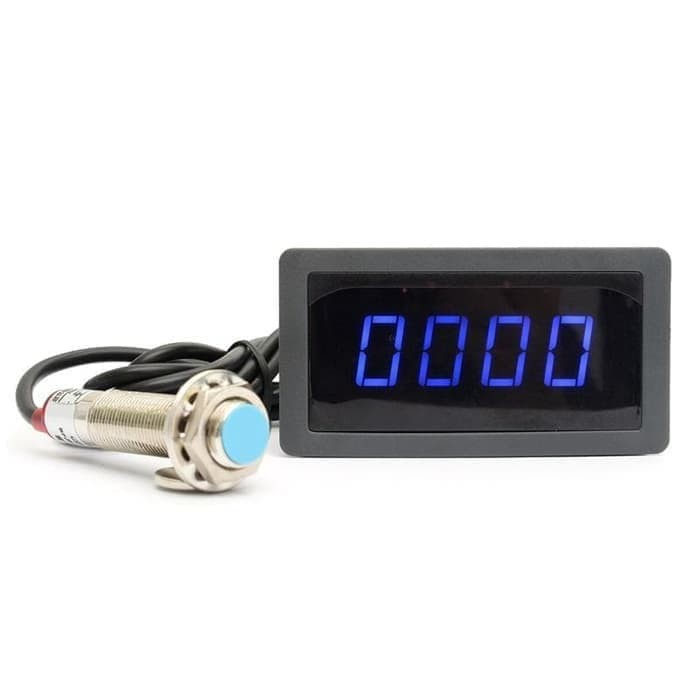

Isi Paket:
1 x bLUELED Tachometer RPM Speed Meter
1 x Hall Proximity Switch Sensor NPN

Koneksi Sensor.
Terminal 1 (+) VCC to display and sensor (brown)
Terminal 2 (-) VCC to display and sensor (blue)
Terminal 5 input from sensor (black)
Terminal 3 & 4 not used

Specifications
Working power supplyDC8-24v 40 mA
Measure range : 5-9999RPM.
Display :Blue LED 67*32mm
Sign:Puslesignal,Hall NPN 3 wires normally open.
Hall proximity model:NJK-5002C
Appearance:M12mm cylinder.
Detection range: 10mm
Detected objects: magnet
Response frequency: 100HZ
Operating temperature: 0 to 50C.
